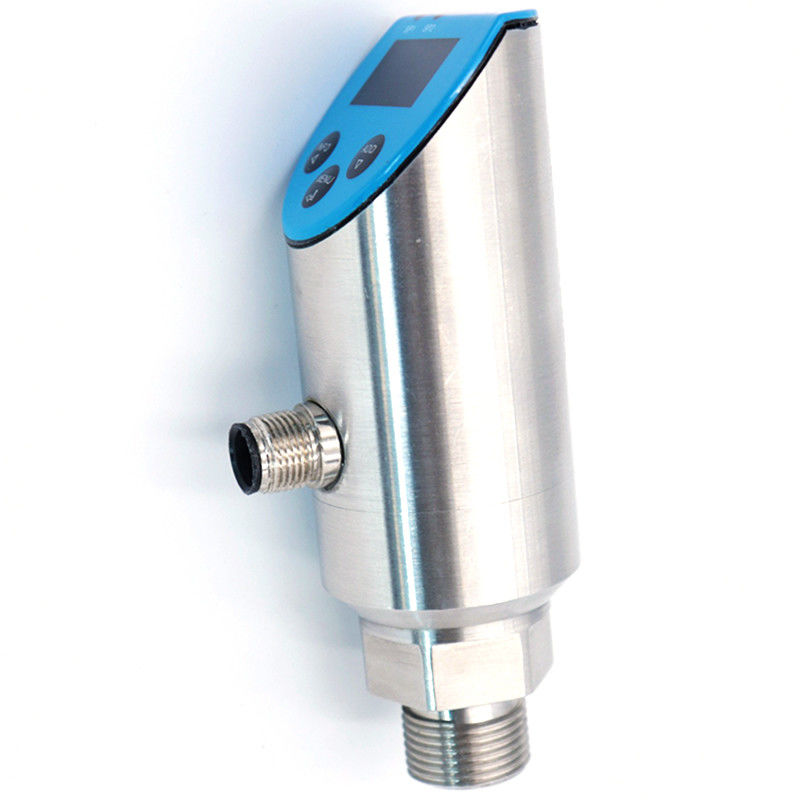

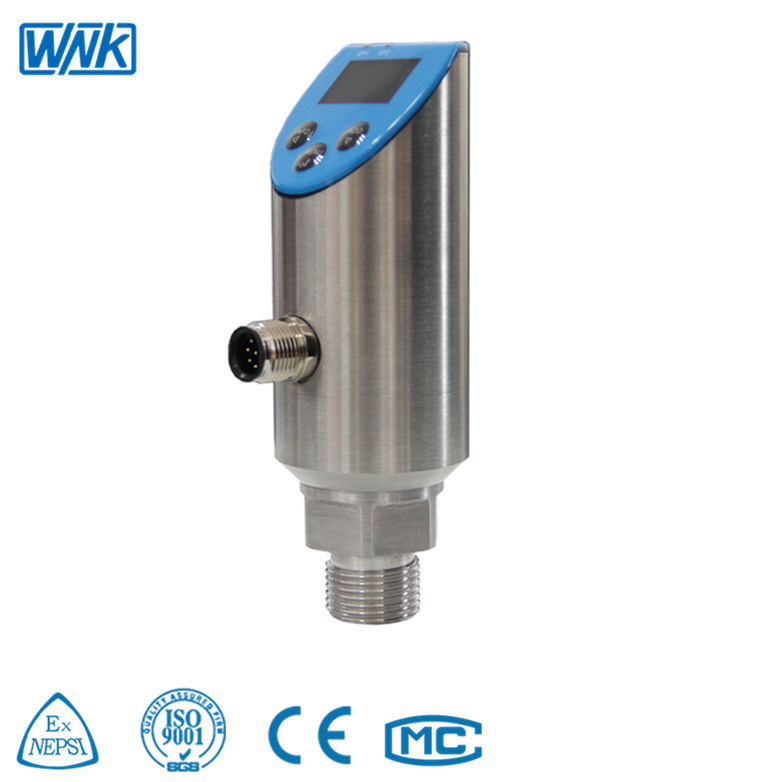

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA

4-20mA Electronic Digital Pressure Switch

IP65 Electronic Digital Pressure Switch

WNK Digital Pressure Switch

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK-SLS

Contact Us
Request A Quote
Product Details
Grade:
Industrial
Warranty:
1 Year
Customized Support:
OEM, ODM
Measured Media:
Liquid, Oil
Measurement Range:
0-200 M
Output Signals:
4-20mA, 0-5V, 0-10V, RS485
Accuracy:
0.5%F.S
Switching Type:
NO/NC
Display:
OLED
Protection Class:
IP65
Housing Material:
304SST
Power Supply:
12-30V DC
MOQ:
1 PC
Port:
Shanghai Port
Highlight:

4-20mA Electronic Digital Pressure Switch

,

IP65 Electronic Digital Pressure Switch

,

WNK Digital Pressure Switch

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$105.00 - $120.00/Pieces
Packaging Details
each product in one inner paper box with foam protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Piece/Pieces per Week Water Level Switch Sensor
Product Description

WNK 4-20mA Electronic Digital Pressure Switch

 Digital Electronic Pressure Switch

Product Description



1. Gas and liquid pressure measurement
2. Support MODBUS
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying pressure peak value and environment temperature
8. Analog output span settable
9. OLED self-luminous display
10. Display turnable 180°
11. Housing with electrical connection against process connection rotatable 330°
12. PNP switching, voltage and current outputs


Smart Electronic Pressure Switch with LED Display
Model No.
SPS
Measuring range
0.1...0.1MPa to 60MPa
Measuring media
Gas & Fluid
Accuracy
≤0.5%FS
Supply power
12...30VDC
Temperature error within rated temp range
±0.02%FS/℃ (Zero/full span)
Long-term stability
±0.3%FS/year
Analog output accuracy
±0.2%FS
Output configurations
switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
Switching current
1.0A(Max.)
Switching type
normally open , normally closed
Switching respond time
<10ms
Switching delay
0.00s~1000.0s
Switching motion mode
delay or windows mode
Analog signal output and maximum ohmic load RL
Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output: 0…5/10V,5/10…0V RL>10kΩ
Screen display
OLED
Switching indicator
2X red LED
Displaying pressure units
psi,bar,mbar,Pa,kPa,MPa
Working temperature
-30℃~80℃
Media temperature
-30℃~80℃
Storage temperature
-40℃~80℃
Electromagnetism compatible
GB/T 17626.2/3/4-2006
Shock resistance
≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance
≤50g/11ms(IEC 60068-2-27-2008)
IP rating
IP65
Product Dimension

IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 0
IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 1WNK 4-20mA Electronic Digital Pressure SwitchWNK 4-20mA Electronic Digital Pressure SwitchWNK 4-20mA Electronic Digital Pressure Switch



WNK 4-20mA Electronic Digital Pressure SwitchWNK 4-20mA Electronic Digital Pressure Switch

WNK 4-20mA Electronic Digital Pressure SwitchWNK 4-20mA Electronic Digital Pressure SwitchWNK 4-20mA Electronic Digital Pressure Switch

Hot Product



IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 11

Company Information

 IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 13



Exhibition

 IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 15







Certification

 IP65 Electronic Digital Pressure Switch WNK 4 - 20mA 17




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
