OEM Customized Support Miniature Pressure Sensors with IP65 Rating -100Kpa 60 MPa

Product Description:

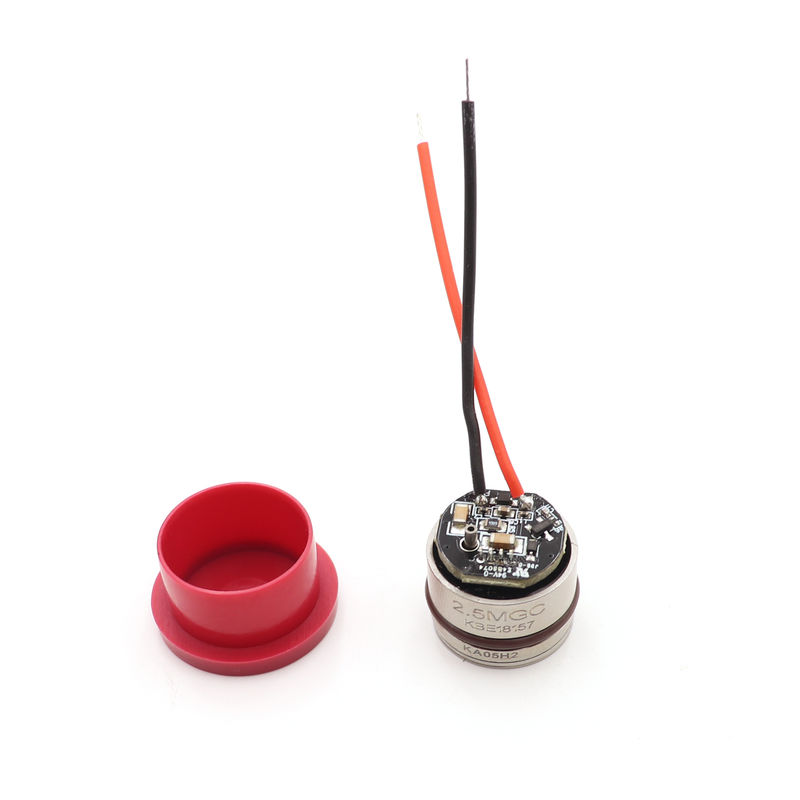

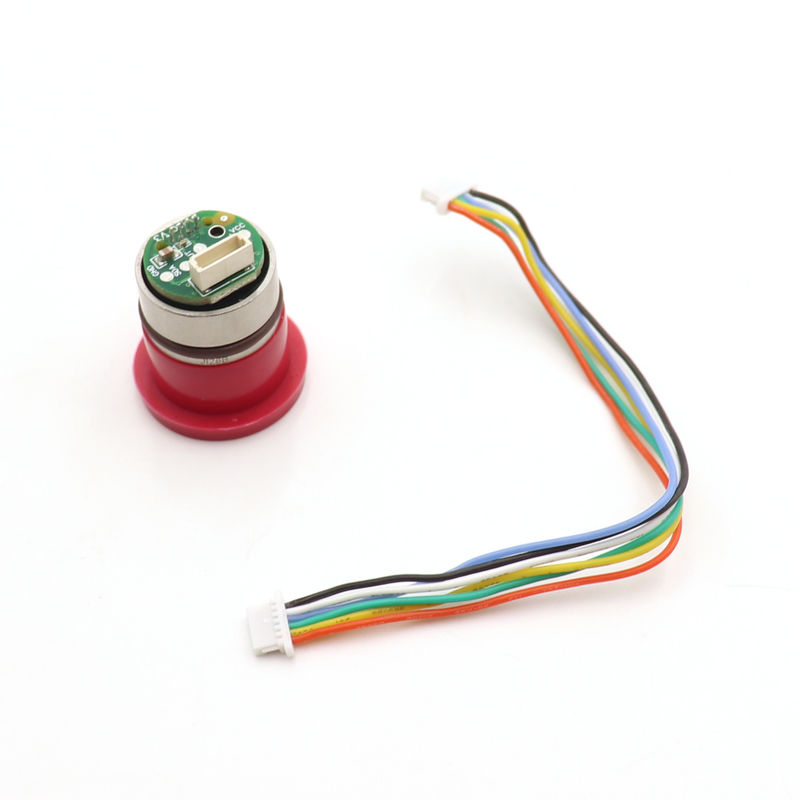

WD19 Digital I2C/SPI Output Pressure Sensor

The WD19 series is built around piezoresistive silicon pressure sensors enclosed in a 316L stainless steel casing. The sensor unit employs silicon oil to transmit pressure from the 316L diaphragm to the sensing component. This type of digital output pressure sensor supports both I2C and SPI interface protocols and can be powered by a 3.3Vdc or 5.0Vdc supply voltage.

It is specifically engineered for o-ring mounting in applications where resistance to corrosive media is essential. A customized ASIC is utilized for temperature compensation, offset correction, and delivers a digital output ranging from 10% to 90% or 5% to 95%.

Applications:

WNK Miniature Pressure Sensor WNK19 is a versatile product suitable for various applications across different industries. With its high accuracy of 0.5%FS and wide pressure range of -100Kpa to 60 MPa, the WNK19 is a reliable choice for measuring pressure in diverse scenarios.

The WNK19 Miniature Pressure Sensor is ideal for use in industrial automation, HVAC systems, hydraulic systems, and automotive applications. Its compact size and customizable support for OEM and ODM solutions make it a preferred choice for integration into different devices and equipment.

Originating from China, the WNK19 Pressure Sensor Core is designed to meet the demanding requirements of modern industries. Its compatibility with various power supplies such as 3.3V, 5V, 12V, 24V, and 12-30V ensures flexibility in installation and operation.

With an IP rating of IP65, the WNK19 Pressure Sensor Core can withstand challenging environmental conditions, making it suitable for outdoor applications where protection against dust and moisture is essential.

Whether it be monitoring pressure in manufacturing processes, controlling pressure in hydraulic systems, or ensuring safety in automotive applications, the WNK19 Miniature Pressure Sensor offers reliable and accurate performance.

Overall, the WNK19 Miniature Pressure Sensor is a robust and adaptable solution for a wide range of industries and scenarios, providing precise pressure measurement capabilities in a compact and durable package.

Customization:

Product Customization Services for Miniature Pressure Sensors:

Customize your Miniature Pressure Sensor with the following options:

- Pressure Sensor Core Chip

- Piezoresistive Silicon Pressure Sensor

- 19mm Pressure Sensors

Product Attributes:

- Brand Name: WNK

- Model Number: WNK19

- Place of Origin: China

- Operating Temperature: -20 To 85 ℃

- Accuracy: 0.5%FS

- Range: -100Kpa ~ 60 MPa

- Media: Liquid, Gas, Steam

- Customized Support: OEM, ODM

Support and Services:

Our Product Technical Support and Services for Miniature Pressure Sensors include:

- Expert assistance with product installation and configuration

- Troubleshooting guidance for any issues with the sensor

- Regular software updates and firmware upgrades

- Access to online resources such as user manuals and technical documentation

- Training programs to help users maximize the potential of the sensor

- Warranty coverage for product defects and malfunctions

FAQ:

Q: What is the brand name of the Miniature Pressure Sensors?

A: The brand name of the Miniature Pressure Sensors is WNK.

Q: What is the model number of the Miniature Pressure Sensors?

A: The model number of the Miniature Pressure Sensors is WNK19.

Q: Where is the Miniature Pressure Sensors product manufactured?

A: The Miniature Pressure Sensors are manufactured in China.

Q: What is the pressure range of the WNK19 Miniature Pressure Sensors?

A: The pressure range of the WNK19 Miniature Pressure Sensors varies depending on the specific model selected. Please refer to the product specifications for detailed information.

Q: Are the Miniature Pressure Sensors suitable for high-temperature applications?

A: The WNK19 Miniature Pressure Sensors are designed to operate effectively in a wide range of temperatures, but it is recommended to check the specific temperature limits provided in the product datasheet for accurate information.
