Stable Performance Piezoresistive Silicon Pressure Sensor with -20 To 85 C Operating Temperature and 0.5%FS Accuracy

Product Description:

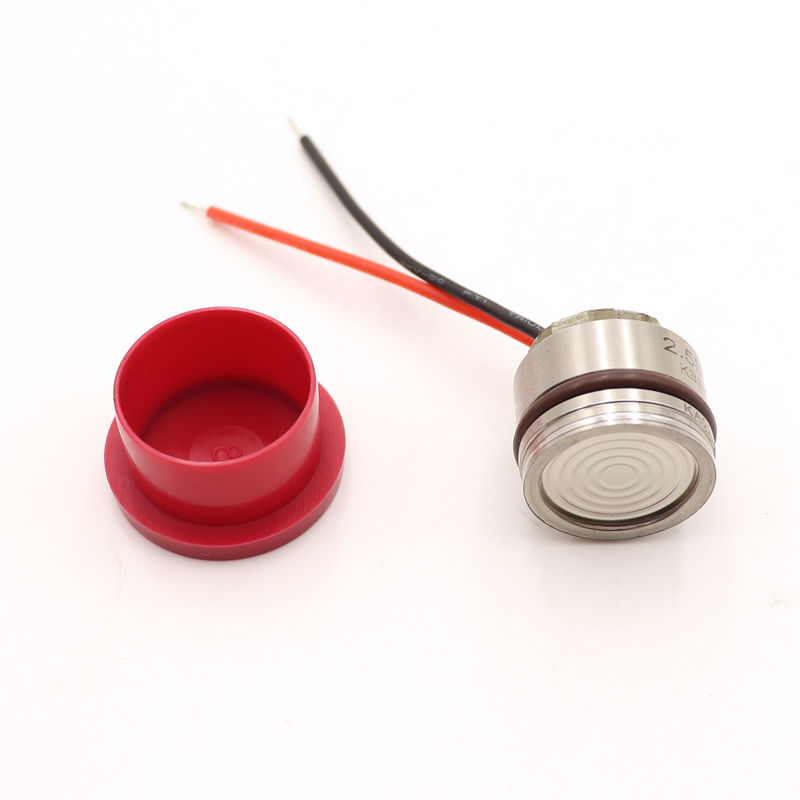

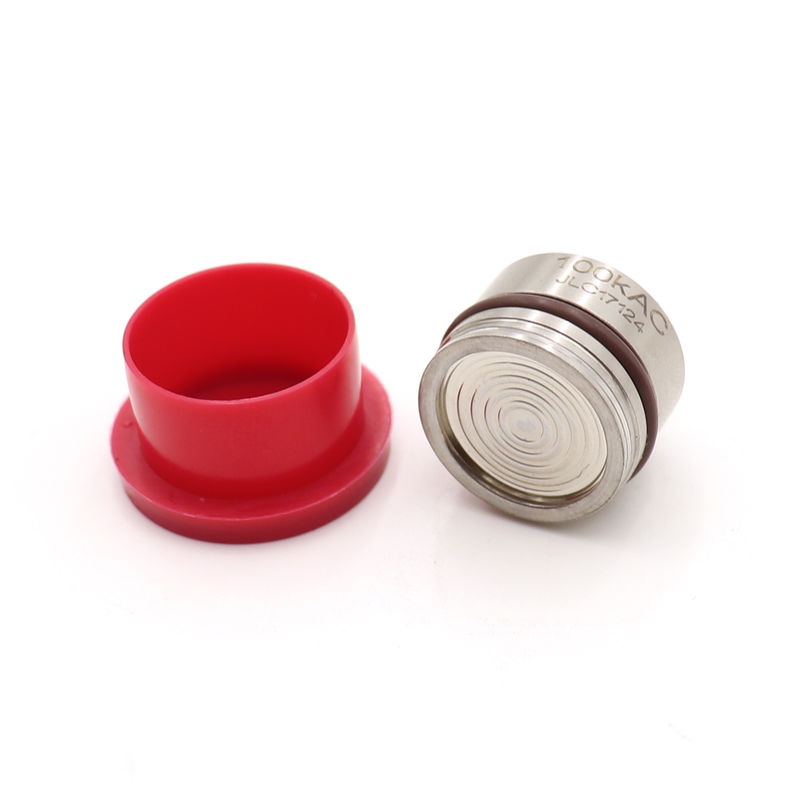

The WD19 series features piezoresistive silicon pressure sensors housed in a durable 316L stainless steel casing. These sensors utilize silicon oil to transmit pressure from the 316L diaphragm to the sensing element.

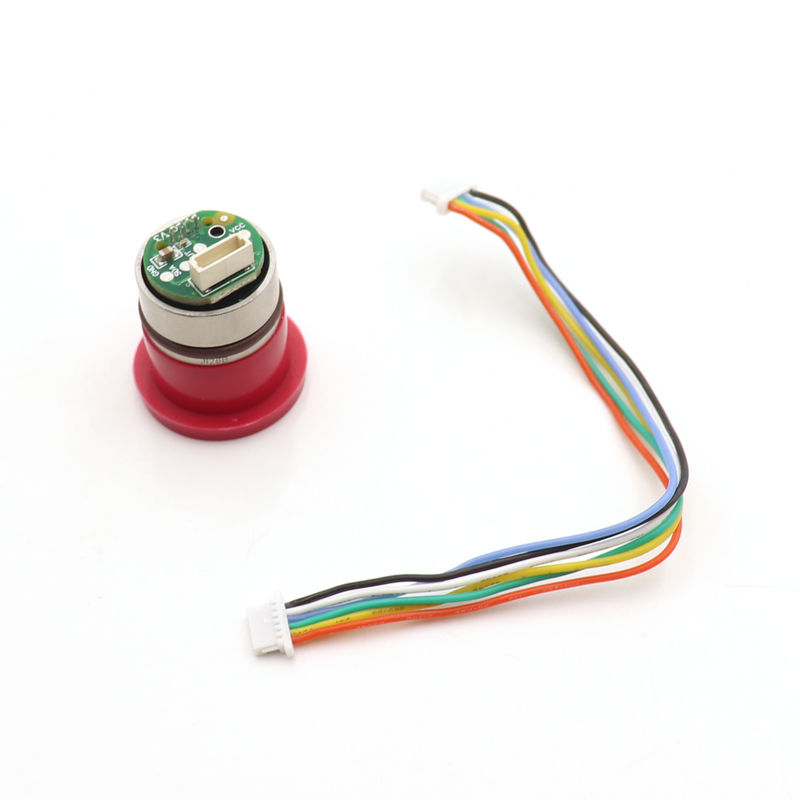

This digital output pressure sensor is equipped to support both I2C and SPI interface protocols and can operate with a supply voltage of either 3.3V or 5.0Vdc.

For applications requiring compatibility with corrosive media, the sensor is designed for convenient o-ring mounting. A custom Application-Specific Integrated Circuit (ASIC) is incorporated for functionalities such as temperature compensation, offset correction, and offers a digital output ranging from 10-90% or 5-95%.

Applications:

The Miniature Pressure Sensors by WNK (Model: WNK19) are versatile and reliable sensors suitable for a wide range of applications due to their high accuracy of 0.5%FS and excellent performance. Originating from China, these sensors are equipped with a Pressure Sensor Core Chip that utilizes piezoresistive silicon technology to ensure precise and consistent pressure measurements.

With an operating temperature range of -20 to 85 ℃ and compatibility with power supplies ranging from 3.3V to 24V, including 12-30V, the WNK Miniature Pressure Sensors are adaptable to various environments and power systems. This flexibility makes them ideal for integration into different industrial and commercial scenarios where monitoring and control of pressure are essential.

These sensors can effectively measure pressure in different media types, including liquid, gas, and steam, making them suitable for diverse applications such as HVAC systems, hydraulic systems, process control, and more. Their compatibility with multiple media types enhances their usability across various industries.

Furthermore, WNK provides customized support for these sensors, offering OEM and ODM services to meet specific requirements of different applications. This customization capability allows for seamless integration of the WNK Miniature Pressure Sensors into existing systems or the development of new solutions tailored to unique operational needs.

In conclusion, the WNK Miniature Pressure Sensors (Model: WNK19) are a reliable choice for applications that demand high precision pressure measurements. With their advanced Pressure Sensor Core technology, wide operating temperature range, compatibility with various power supplies, and support for different media types, these sensors offer a versatile solution for industries seeking accurate and dependable pressure sensing capabilities.

Customization:

Product Customization Services for the Miniature Pressure Sensors

Brand Name: WNK

Model Number: WNK19

Place of Origin: China

Media: Liquid, Gas, Steam

Power supply: 3.3V, 5V, 12V, 24V, 12-30V

Customized support: OEM, ODM

Accuracy: 0.5%FS

IP rating: IP65

Pressure Sensor Core Chip, Diffused Silicon Pressure Sensor, Piezoresistive Silicon Pressure Sensor

Support and Services:

Our Product Technical Support and Services for Miniature Pressure Sensors include:

- Installation assistance and guidance

- Troubleshooting support for any technical issues

- Product maintenance recommendations

- Warranty information and support

- Software updates and downloads

- Training resources for using the sensors effectively

FAQ:

Q: What is the brand name of this miniature pressure sensor?

A: The brand name is WNK.

Q: What is the model number of this miniature pressure sensor?

A: The model number is WNK19.

Q: Where is this miniature pressure sensor manufactured?

A: It is manufactured in China.

Q: What is the typical application for the WNK19 miniature pressure sensor?

A: The WNK19 is commonly used in industrial automation, HVAC systems, and medical devices.

Q: What is the output signal of the WNK19 miniature pressure sensor?

A: The WNK19 typically provides a 0-5V or 4-20mA output signal.
