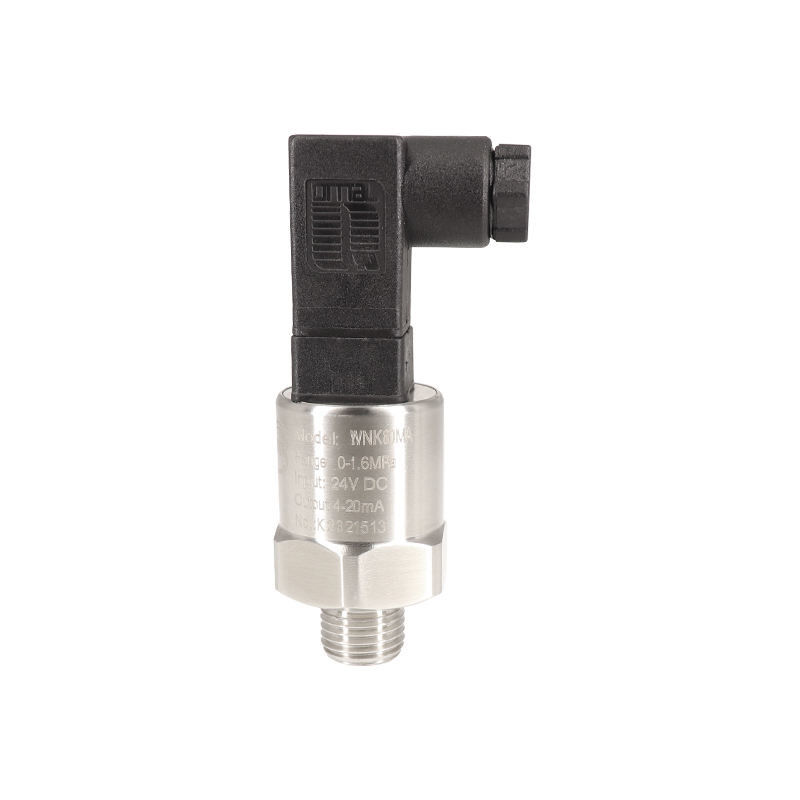

IP65 Low Cost Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer

IP65 Low Cost Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK811

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Range:
0-60bar
Accuracy:
0.5%FS, 1%FS
Output:
I2C, SPI, 0.2-2.9V, 4~20mA, 0.5-4.5V And Etc
Operation Temperature:
-40~130C
Electrical Connector:
DIN, Packard, Direct Cable, M12X1, Deustch
Ingress Protection:
IP67
Respond Time:
≥1ms
Overload:
2x FS
Proof Pressure:
3x FS
Pressure Port:
G1/4, G1/2 ,1/8NPT, 1/4NPT, Other
Port:
Shanghai, Tianjin,
Payment & Shipping Terms
Price
$8.90 - $29.90/Pieces
Packaging Details
paper carton or as per clients' requirement
Supply Ability
30000 Piece/Pieces per Month 3.3V pressure transducer
Product Description

IP65 Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer





Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Application

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-60bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.2% 0.5% 1.0% FS.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65






4-20mA 0.5-4.5V I2C Preservative Pressure Sensor For Water Air Gas

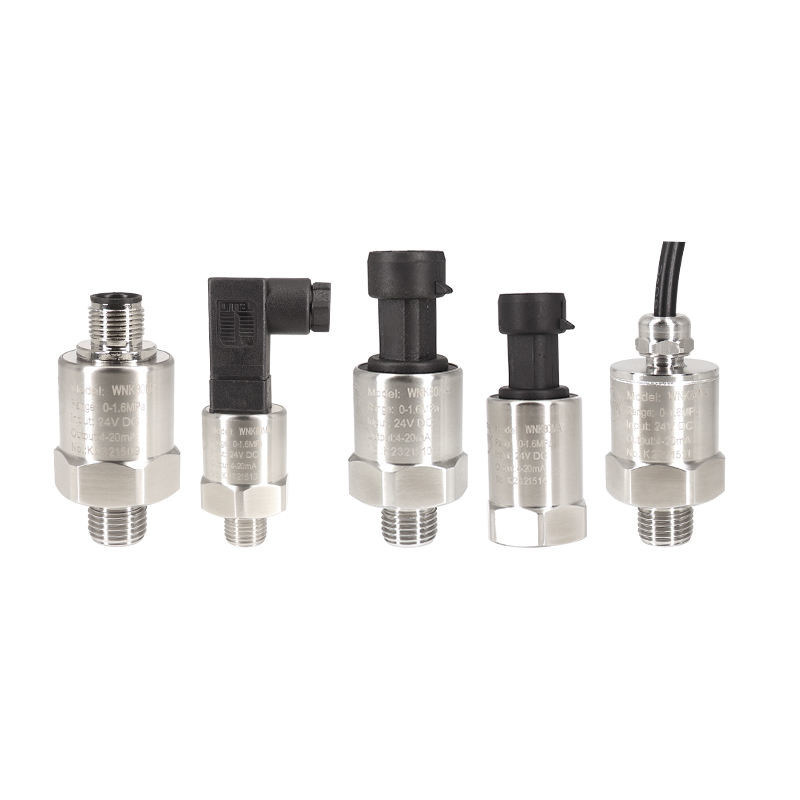

Product Show

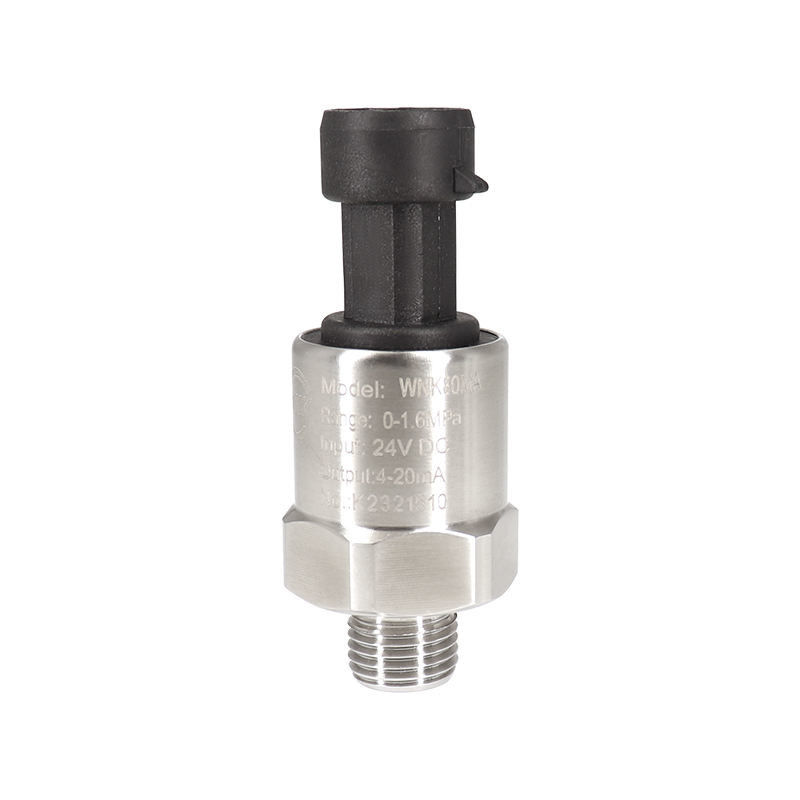

IP65 Low Cost Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer 1



4-20mA 0.5-4.5V I2C Preservative Pressure Sensor For Water Air Gas4-20mA 0.5-4.5V I2C Preservative Pressure Sensor For Water Air Gas



FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
