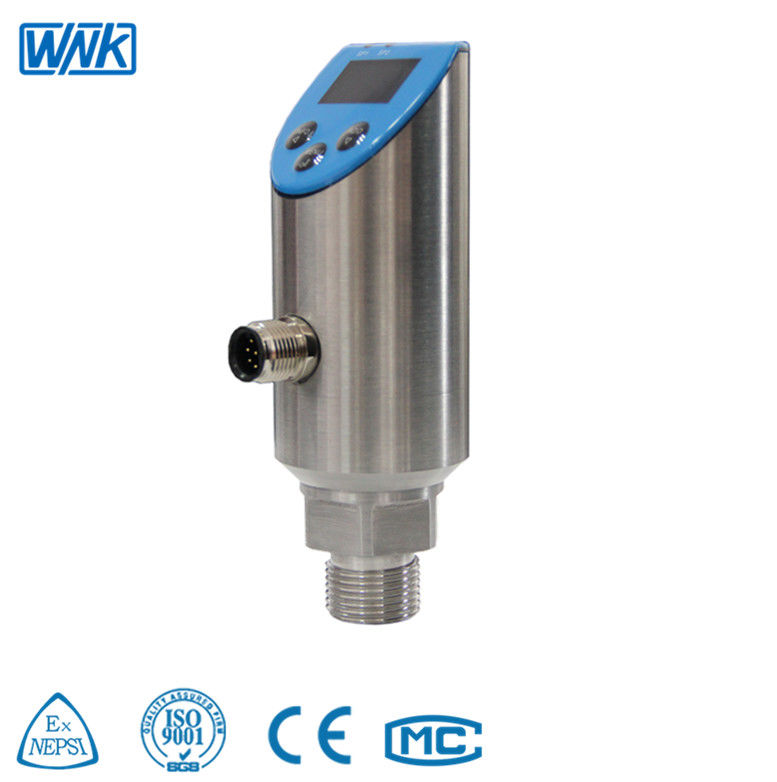

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure
Pressure range
-100kPa~60MPa
Output Signal
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy
0.5% FS
Stability
±0.3% FS/year
Switch current
1.0A(Max.)
Switching type
Normally open / closed (settable)
Display
OLED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature
-40~80℃
Process temperature
-30~80℃
Protection class
IP65
Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.
Feautures
- Programmable automatic control design
- OLED with back-light display
- Display 180°turnable
- Displaying pressure peak value and environment temperature
- Body 330°rotable
- Industrial touch-sensitive button
- Switch points settable
- PNP/NPN +4~20mA/0-5V output
- Support MODBUS

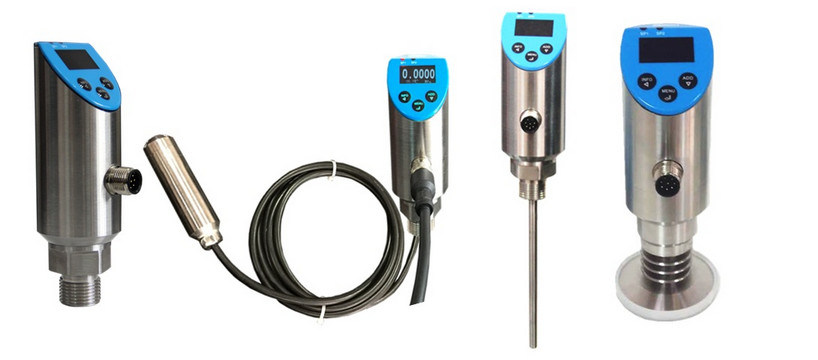

- Pressure, level and temperature switch
- OEM & Customizable
Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor
The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.
