G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V

G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V

HVAC Brass Sensor

1/4NPT Brass Pressure Sensor

Air Compressor Miniature Pressure Sensors

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK83mA

Contact Us
Request A Quote
G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC / Air Compressor 0.5 - 4.5V
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Model:
WNK83mA
Application:
Constant Pressure Water Supply System
Measured Media:
Typical Water, Gas, Oil, Hydraulic Oil, Etc.
Pressure Range:
0-10bar,0-20bar
Power Supply:
5V DC
Output:
0.5-4.5VDC
Protection Class:
IP65 /67
Housing Material:
Brass
OEM Service:
OEM, ODM, Customization Available
Operating Temperature::
-40~85 ℃
Port:
Shanghai/Ningbo
Highlight:

HVAC Brass Sensor

,

1/4NPT Brass Pressure Sensor

,

Air Compressor Miniature Pressure Sensors

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$6.00 - $6.50/Pieces
Packaging Details
each product in one inner paper box with protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
3000 Piece/Pieces per Month 5V pressure sensor
RELATED PRODUCTS
Good price 0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor online Video

0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor

Get Best Price
Good price Low Cost I2C Digital Pressure Sensor for Process Control/fresh Waste Water Measurements online Video

Low Cost I2C Digital Pressure Sensor for Process Control/fresh Waste Water Measurements

Get Best Price
Good price WD19 Mini Pressure Transducer , 4-20mA Ultra High Accuracy Differential Pressure Transducer online Video

WD19 Mini Pressure Transducer , 4-20mA Ultra High Accuracy Differential Pressure Transducer

Get Best Price
Good price Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor online Video

Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

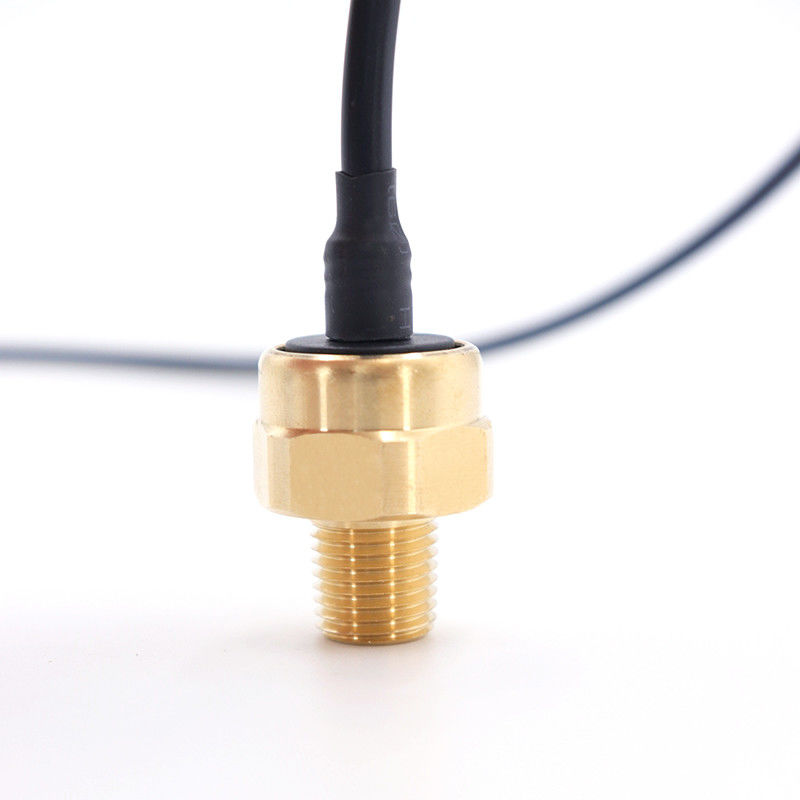

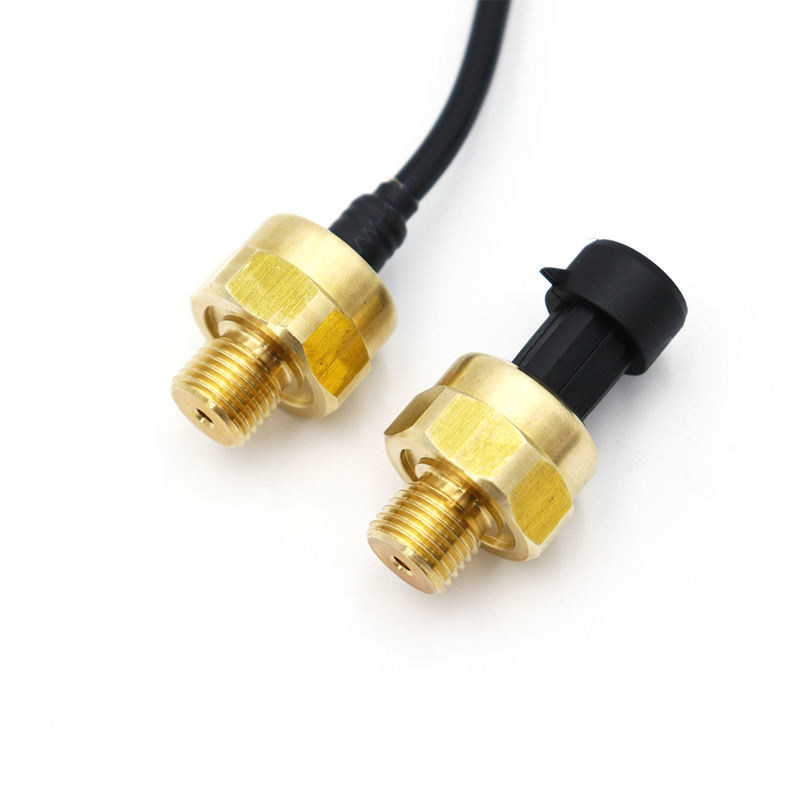

0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor

--WNK83MA is our standard compact pressure transmitter, using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor.

--It has the characteristics of corrosion resistance, wear resistance, impact resistance and vibration resistance. This product is particularly suitable for manufacturing high-performance industrial control pressure transmitters and pressure measurement in harsh environments.
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
Housing Material
Brass
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Cell
Ceramic capacitive pressure sensor
Output signal
0.5-4.5 VDC
Measure range
0-10bar 0-20bar
Electrical connection
Packard Cable Outlet
Work temperature
-20~70°C
Storage temperature
-40~110°C
Accuracy
1%FS
Measured media
Liquid Gas steam
Mechanical connection
G1/4 1/4NPT
Pressure type
Gauge Pressure / Sealing Pressure
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor

0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor

0.5-4.5V G1/4 1/4NPT Brass Pressure Sensor For HVAC/Air Compressor
