10KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output

10KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output

60MPa Pressure Sensor Transmitter

10KPa Pressure Sensor Transmitter

Liquid Gas Pressure Sensor Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK81mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Output:
4- 20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Power Supply:
10.5-55V DC, 10.5-30V DC
Accuracy:
0.2%F.S, 0.5%F.S
Protection Class:
IP65 /67
Housing Material:
304SS, 316L, 316SS
Measured Media:
Liquid, Gas, Steam, Oil, Air
OEM Service:
OEM, ODM, Customization Available
Pressure Range::
-100Kpa ~ 60MPa
Operating Temperature::
-40~85 ℃
Application:
HAVC And BAS Control
Port:
Shanghai/Ningbo
Highlight:

60MPa Pressure Sensor Transmitter

,

10KPa Pressure Sensor Transmitter

,

Liquid Gas Pressure Sensor Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$20.00 - $28.00/Pieces
Packaging Details
Each piece into individual carton with foam protection
Or as per client's request
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
3000 Piece/Pieces per Month pressure sensor
Product Description

 WNK 0.5-4.5V Output -10KPa~60MPa Pressure Sensor Transmitter For Liquid Gas

WNK 304SS, 316L 0.5-4.5V -10KPa~60MPa Pressure Sensor Transmitter



Product Description



WNK81MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas,Air
Pressure range
0-600bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

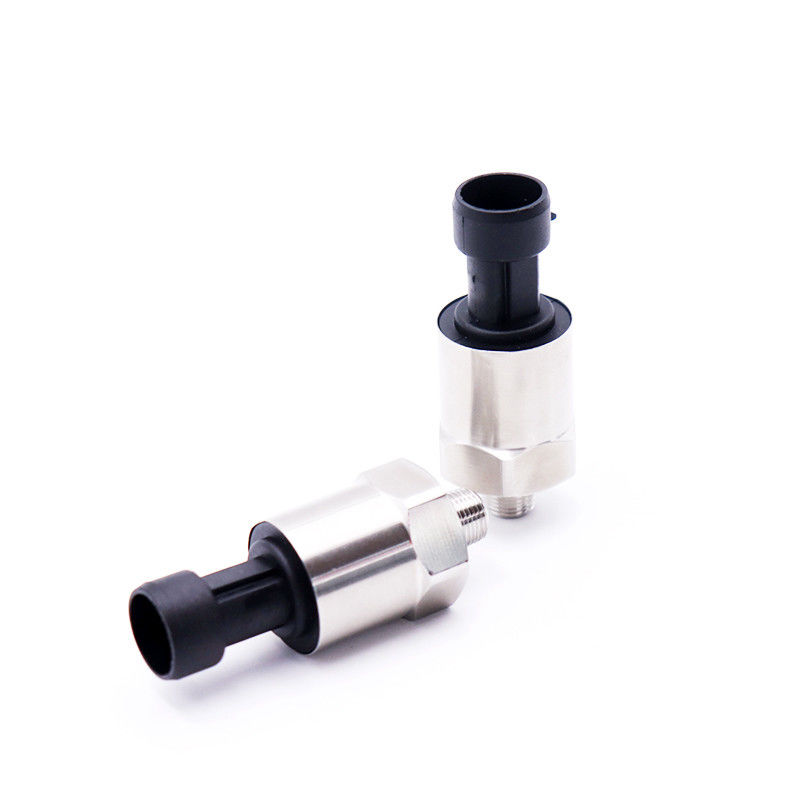

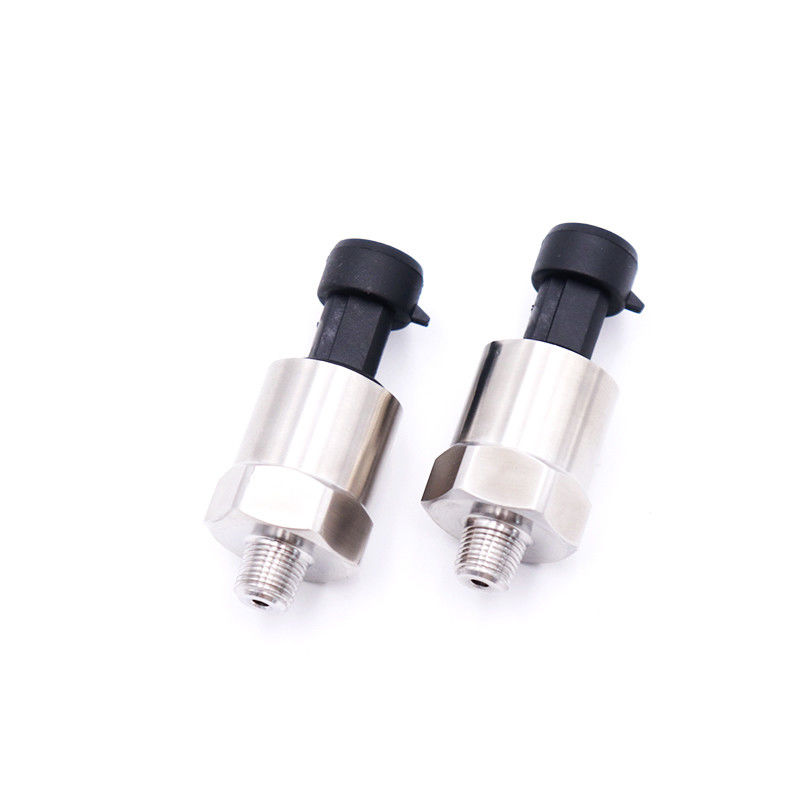

Product Show

10KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output 010KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output 1

10KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output 210KPa - 60MPa Pressure Sensor Transmitter For Liquid Gas WNK 0.5-4.5V Output 3



Packaging & Shipping

 WNK 0.5-4.5V Output -10KPa~60MPa Pressure Sensor Transmitter For Liquid Gas

WNK 0.5-4.5V Output -10KPa~60MPa Pressure Sensor Transmitter For Liquid Gas

FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
