0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output

0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output

I2C Output Vacuum Pressure Transducer

Micro Absolute Vacuum Pressure Transducer

Micro Absolute I2c Water Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80MA

Contact Us
Request A Quote
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Product Details
Warranty:
1 Year
Customized Support:
OEM, ODM
Pressure Range:
0-60bar
Comprehensive Accuracy:
0.1, 0.25, 0.5, 1.0
Output:
4-20ma 0.5-4.5v I2c
Protection Class:
IP65
Housing Material:
Ss316
Pressure Type:
Gauge, Absolute, Vacuum, Negative Pressure
OEM Service:
OEM, ODM, Customization Available
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry
MOQ:
1 PC
Keywords:
Compressor Pressure Sensor/ I2c Pressure Sensor
Port:
Shanghai
Highlight:

I2C Output Vacuum Pressure Transducer

,

Micro Absolute Vacuum Pressure Transducer

,

Micro Absolute I2c Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
paper carton or as per clients' requirement
Low Cost 4-20ma i2c Pressure Sensor HVAC Compressor Pressure Sensor for Water Air Gas
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000 Piece/Pieces per Month Compressor Pressure Sensor/ i2c Pressure Sensor
RELATED PRODUCTS
Good price HVAC Brass Pressure Sensor For Air Conditioning System online Video

HVAC Brass Pressure Sensor For Air Conditioning System

Get Best Price
Good price Brass HVAC Pressure Sensor 1% FS Ac Refrigerant Pressure Sensor 2-6Mpa online Video

Brass HVAC Pressure Sensor 1% FS Ac Refrigerant Pressure Sensor 2-6Mpa

Get Best Price
Good price 304SS Hydraulic Pressure Transducer 4-20mA For Air Conditioner online Video

304SS Hydraulic Pressure Transducer 4-20mA For Air Conditioner

Get Best Price
Good price I2C HVAC Pressure Sensor , IP67 24VDC Refrigeration Pressure Transmitter online Video

I2C HVAC Pressure Sensor , IP67 24VDC Refrigeration Pressure Transmitter

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

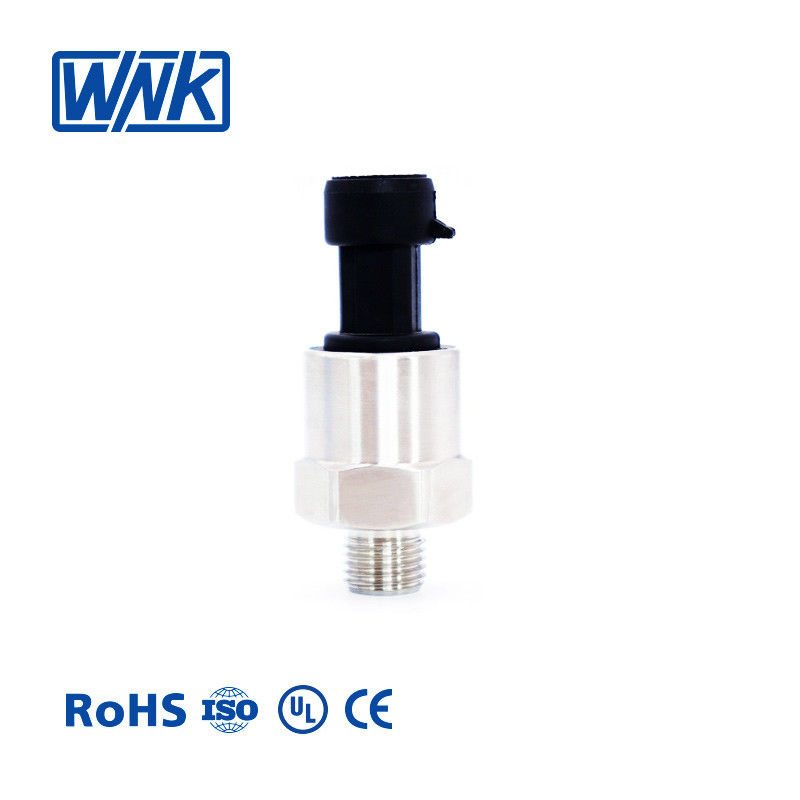

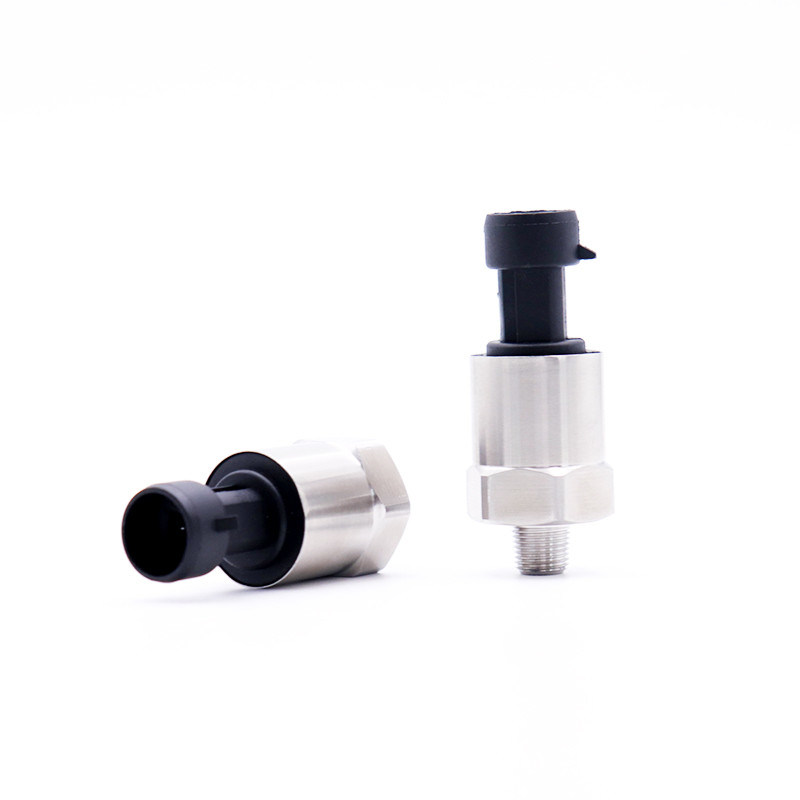

0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Product Description





miniature piezoresistive pressure transducer, engine oil pressure transmitter
WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.

With high output and wide ranges, WNK811 also provide with wide range customization.




Process Connection
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 0
Product Spec
WNK811 diffused silicon oil filled pressure sensor with customization
Applicable media
Liquid, Gas

Pressure range
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)

Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Customization Connector, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 1
About us
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 2
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 3
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 4
Related Products
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 5
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 6
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 7
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 8
Our Quality Control
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output 9

Our product quality is guaranteed

1. 100% of all products we do temperature compensation and aging test before shipment.

2. Our products are all calibrated and shipped with certificate.

FAQ
