4-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector

4-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector

M12 Connector Pressure Transmitter

Air Water Pressure Transmitter

Digital I2c Water Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80MA

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
Customized Support:
OEM, ODM
Pressure Range:
0-60bar
Comprehensive Accuracy:
0.1, 0.25, 0.5, 1.0
Output:
4-20ma 0.5-4.5v I2c
Protection Class:
IP65
Housing Material:
Ss316
Pressure Type:
Gauge, Absolute, Vacuum, Negative Pressure
OEM Service:
OEM, ODM, Customization Available
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry
MOQ:
1 PC
Keywords:
Compressor Pressure Sensor/ I2c Pressure Sensor
Port:
Shanghai
Highlight:

M12 Connector Pressure Transmitter

,

Air Water Pressure Transmitter

,

Digital I2c Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
paper carton or as per clients' requirement
Low Cost 4-20ma i2c Pressure Sensor HVAC Compressor Pressure Sensor for Water Air Gas
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000 Piece/Pieces per Month Compressor Pressure Sensor/ i2c Pressure Sensor
Product Description

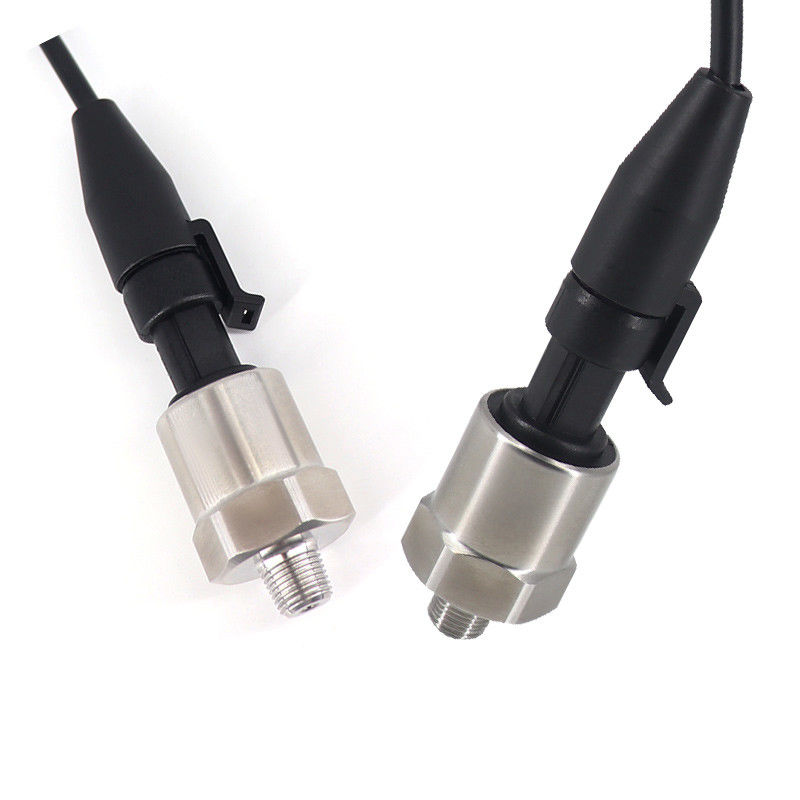

4-20ma Digital SPI/I2C Air Water Pressure Transmitter With M12 Connector



WNK 0-60bar Water Pressure Sensor For Liquid Gas

Product Description
WNK80mA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With high output and wide range,.
WNK80mA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Application:

WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor,HVAC, pump, valve and etc;
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65



>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems

4-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 14-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 24-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 3

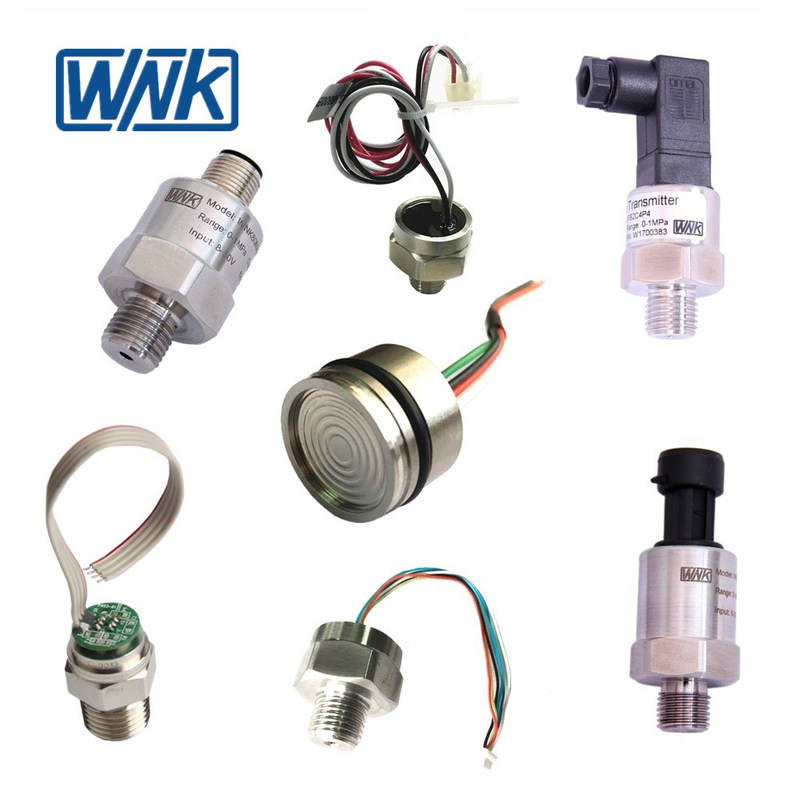

Company Information

4-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 44-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 64-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 84-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 104-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 124-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 14




Packaging & Shipping

 4-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 164-20ma Digital SPI / I2C Air Water Pressure Transmitter With M12 Connector 18

FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
