IP65 Protection 0.5 - 4.5V Hydraulic Pressure Sensor For Water Oil

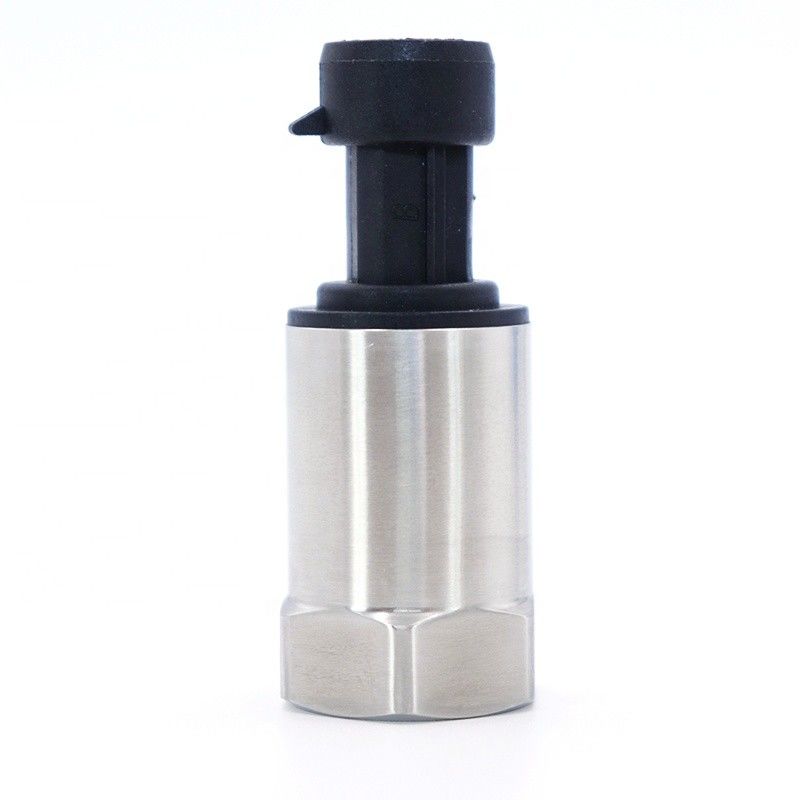

IP65 Protection 0.5 - 4.5V Hydraulic Pressure Sensor For Water Oil

0.5V Hydraulic Pressure Sensor

4.5V Hydraulic Pressure Sensor

Mems Pressure Sensor IP65 Protection

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V,
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0~6MPa
Protection Class:
IP65
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC
Product Name:
4-20mA 0.5-4.5V Pressure Sensor For Oil Gas
Keyword:
Mems Pressure Sensor
MOQ:
1set
Port:
Shanghai Port
Highlight:

0.5V Hydraulic Pressure Sensor

,

4.5V Hydraulic Pressure Sensor

,

Mems Pressure Sensor IP65 Protection

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with foam protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Set/Sets per Week
Product Description

4-20ma 0.5-4.5V Hydraulic Pressure Sensor Price For Water Oil



Product Description

Smart Miniature Oil Fuel Water Pressure Sensor 4-20mA
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.





>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

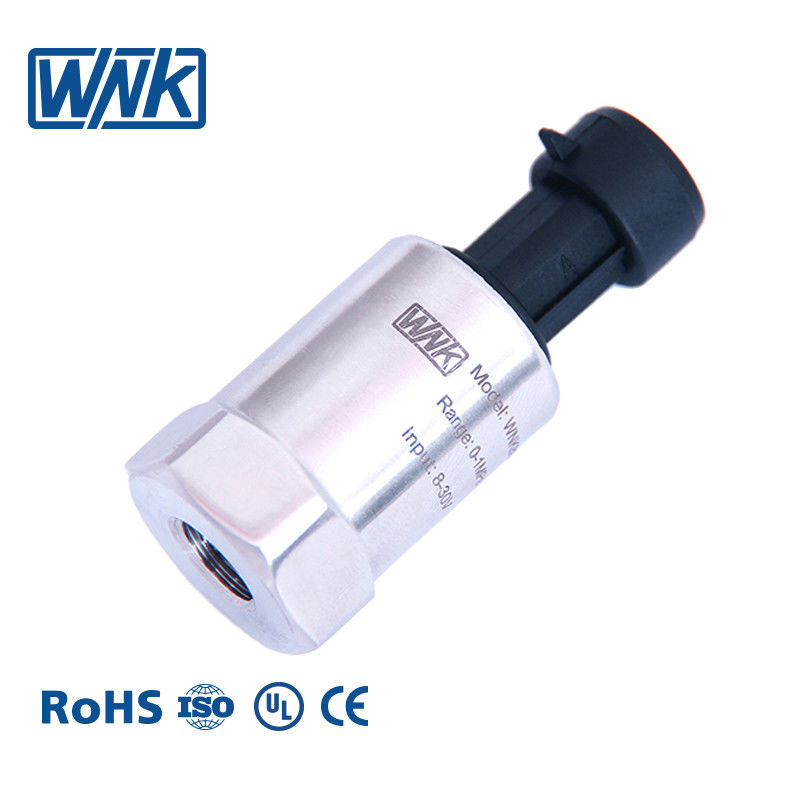

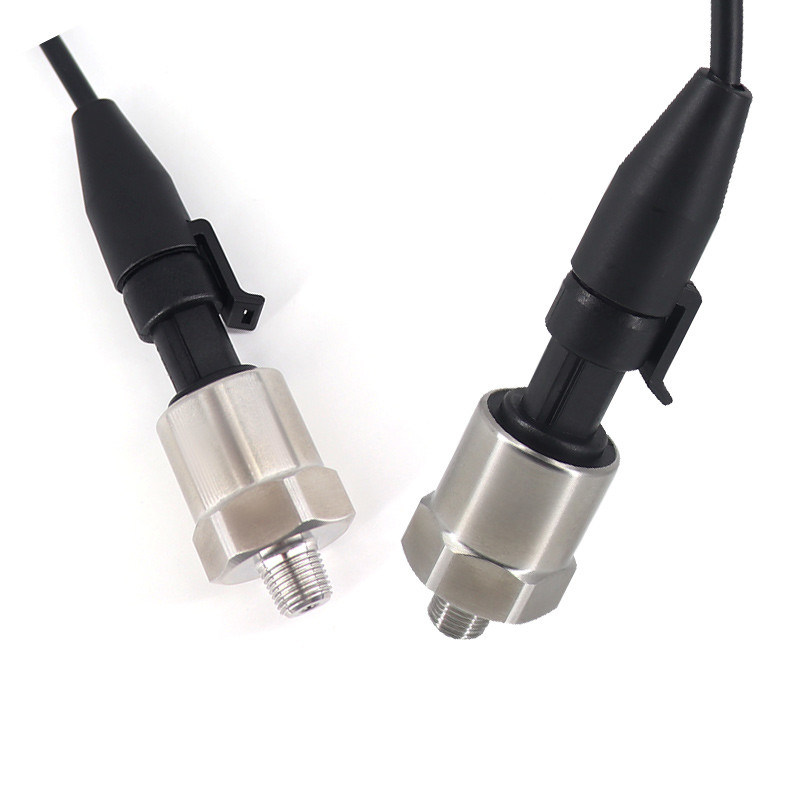

Product Show

4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC

4-20ma 0.5-4.5V Hydraulic Pressure Sensor Price For Water Oil

4-20ma 0.5-4.5V Hydraulic Pressure Sensor Price For Water Oil

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
