ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA

ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA

ExiaII CT4 Electronic Water Pressure Sensor

4.5V Industrial Pressure Transducer

20mA Industrial Pressure Transducer

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0-60bar
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Pressure Sensor/ Air Pressure Sensor
Port:
Shanghai Port
Highlight:

ExiaII CT4 Electronic Water Pressure Sensor

,

4.5V Industrial Pressure Transducer

,

20mA Industrial Pressure Transducer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Supply Ability
2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
Product Description

Low Cost 4- 20mA.5-4.5V Industrial Pressure Transducer For Air Gas



Industrial Pressure Transducer

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-60bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

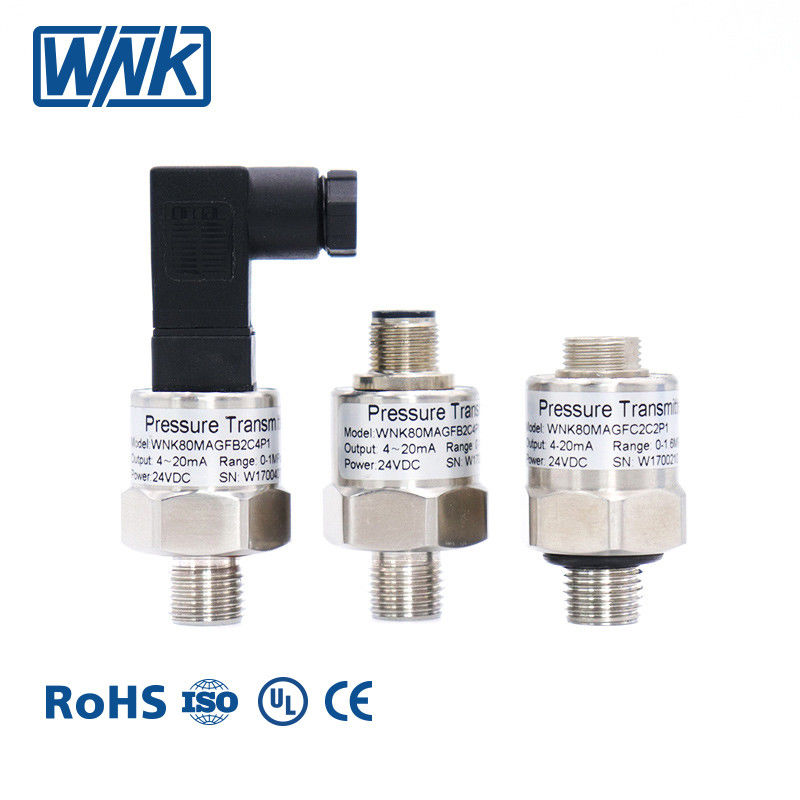

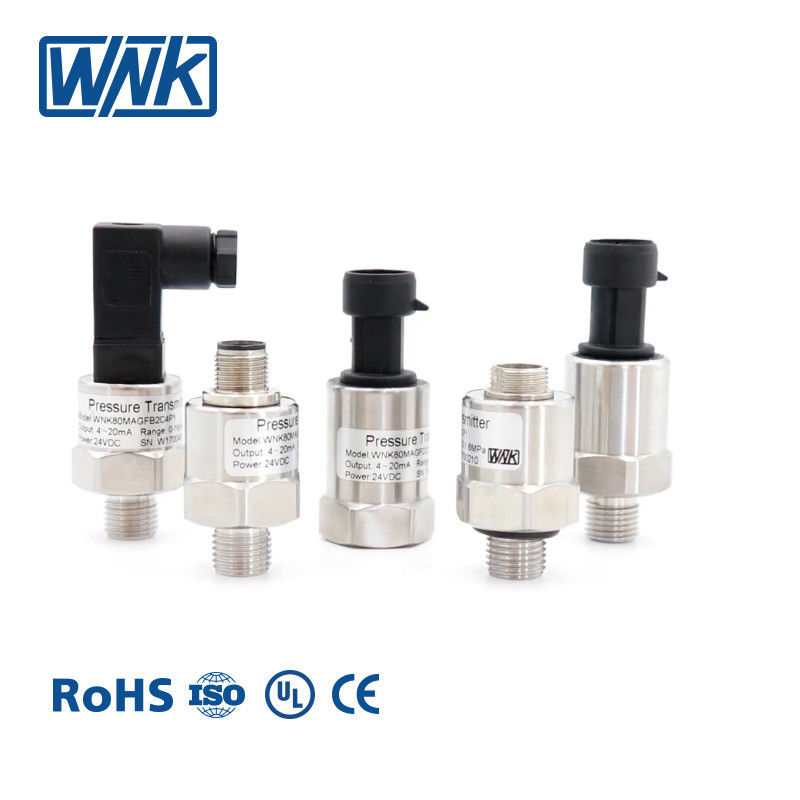

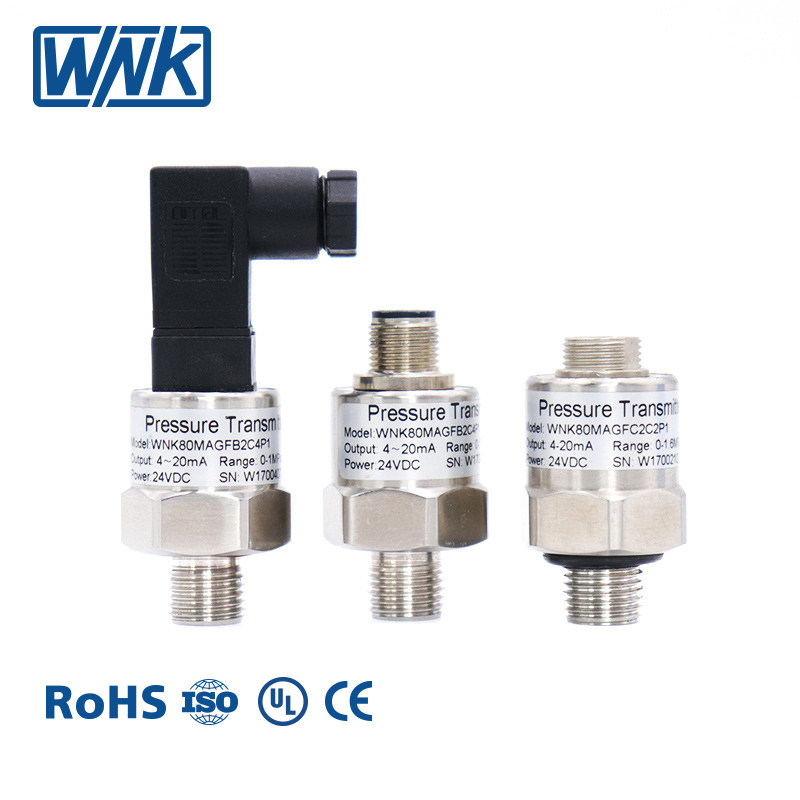

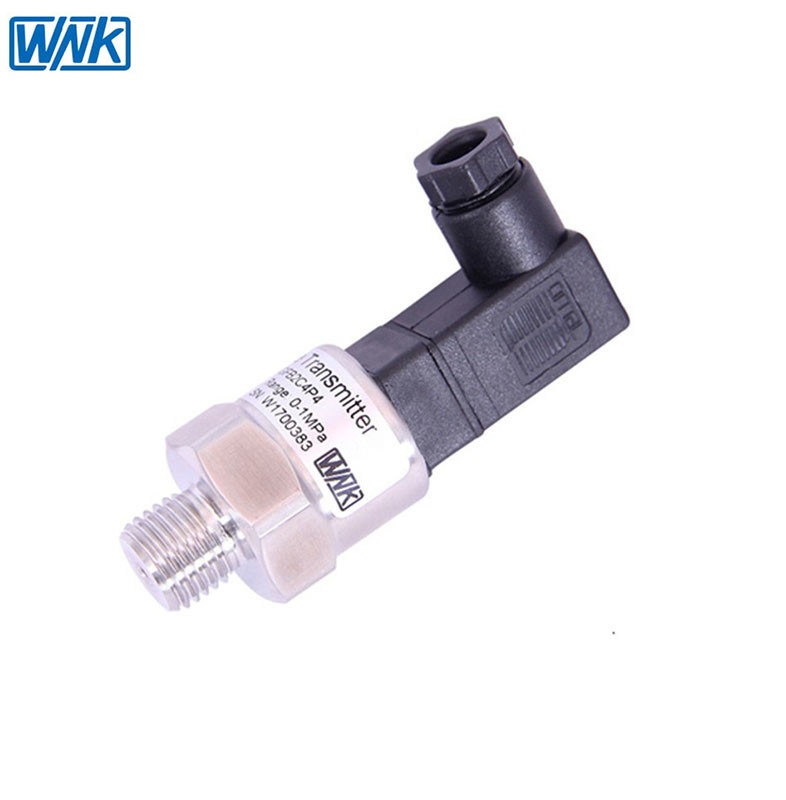

ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 1ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 2ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 3

ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 4ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 5ExiaII CT4 CT6 Industrial Pressure Transducer For Air Gas 4.5V 20mA 6


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
