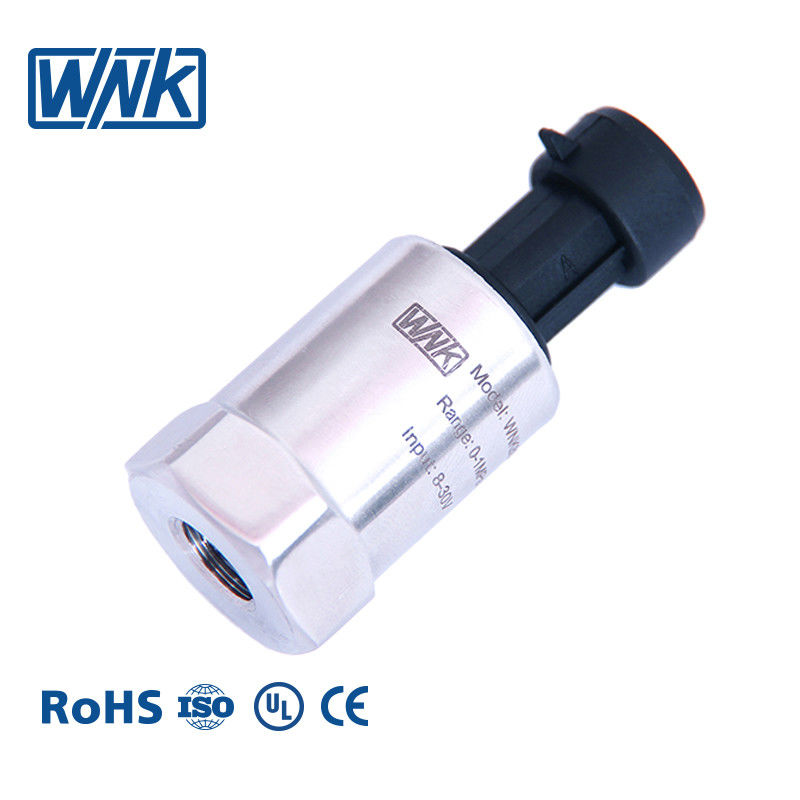

4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas

4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas

4.5V Water Pump Pressure Sensor

20ma Water Pump Pressure Sensor

304SS Electronic Water Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0-60bar
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Pressure Sensor/ Air Pressure Sensor
Port:
Shanghai Port
Highlight:

4.5V Water Pump Pressure Sensor

,

20ma Water Pump Pressure Sensor

,

304SS Electronic Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Supply Ability
2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
Product Description

Wnk 4-20ma 0.5-4.5V Water Pump Pressure Sensor Transmitter For Air Gas

Water Pump Pressure Sensor Transmitter For Air Gas

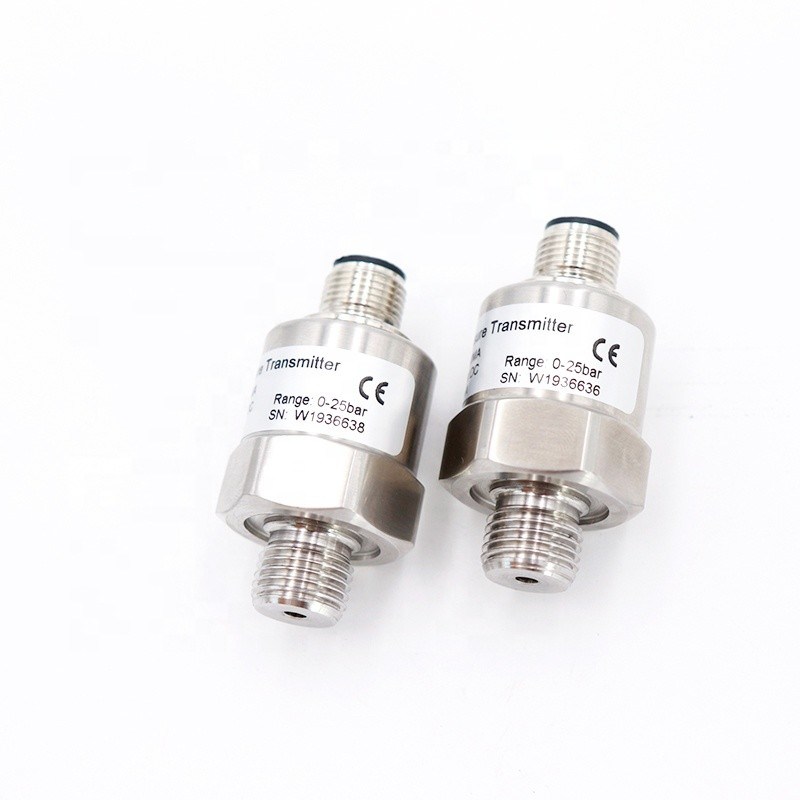

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-60bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 0

4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 3



4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 44-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 54-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 6

4-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 74-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 84-20ma 0.5-4.5V Water Pump Pressure Sensor Wnk For Air Gas 9


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
