Home > products > Electronic Water Pressure Sensor >
0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam

0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam

20mA I2C Water Pressure Sensor

Liquid I2C Water Pressure Sensor

4.5V Electronic Water Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam
0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0-300KPa~10MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Pressure Sensor/ Air Pressure Sensor
Port:
Shanghai Port
Highlight:

20mA I2C Water Pressure Sensor

,

Liquid I2C Water Pressure Sensor

,

4.5V Electronic Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Supply Ability
2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
RELATED PRODUCTS
Good price 1%FS Brass Pressure Sensor For Water Parkard Electrical Connection online Video

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

Get Best Price
Good price 0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application online Video

0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application

Get Best Price
Good price Anti Corrosive Underwater Pressure Sensor Brass Cable outlet online Video

Anti Corrosive Underwater Pressure Sensor Brass Cable outlet

Get Best Price
Good price 0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas online Video

0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

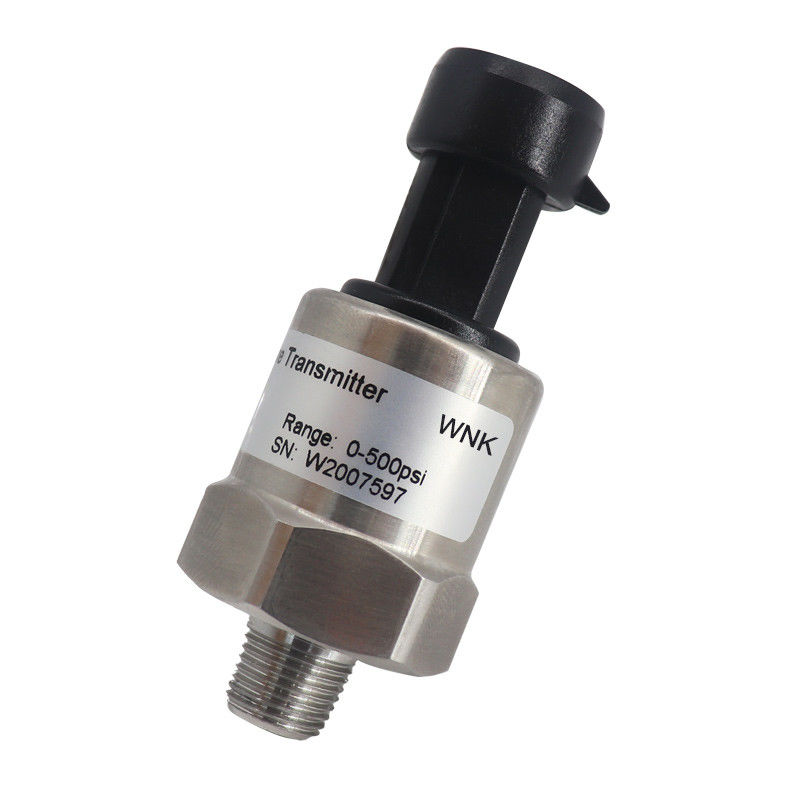

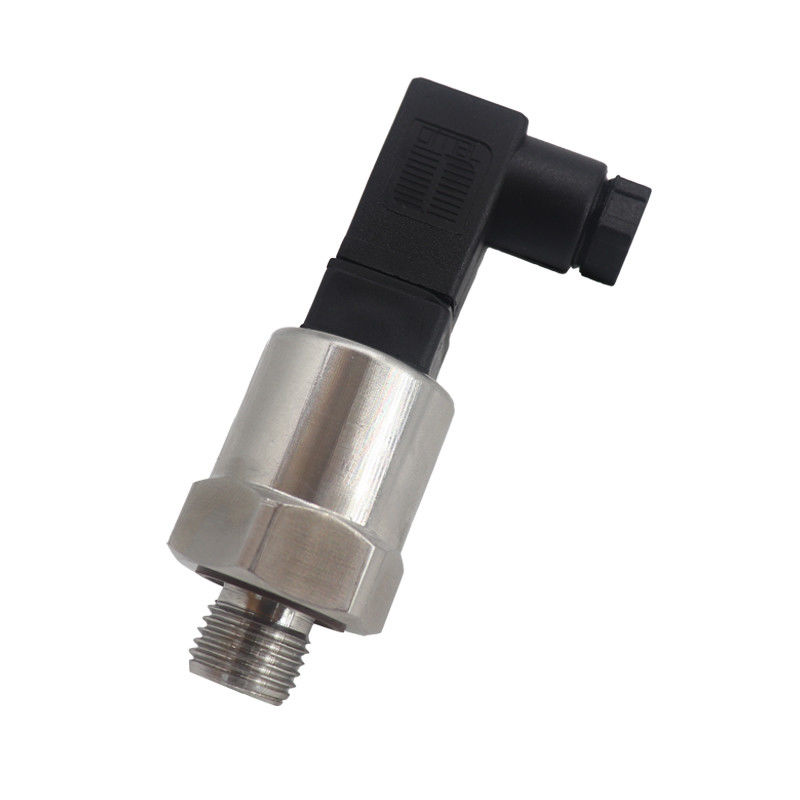

0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid/Gas/Steam

0.5V-4.5V 4-20mA I2C Water Pressure Sensor

Smart Miniature Oil Fuel Water Pressure Sensor 4-20mA
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

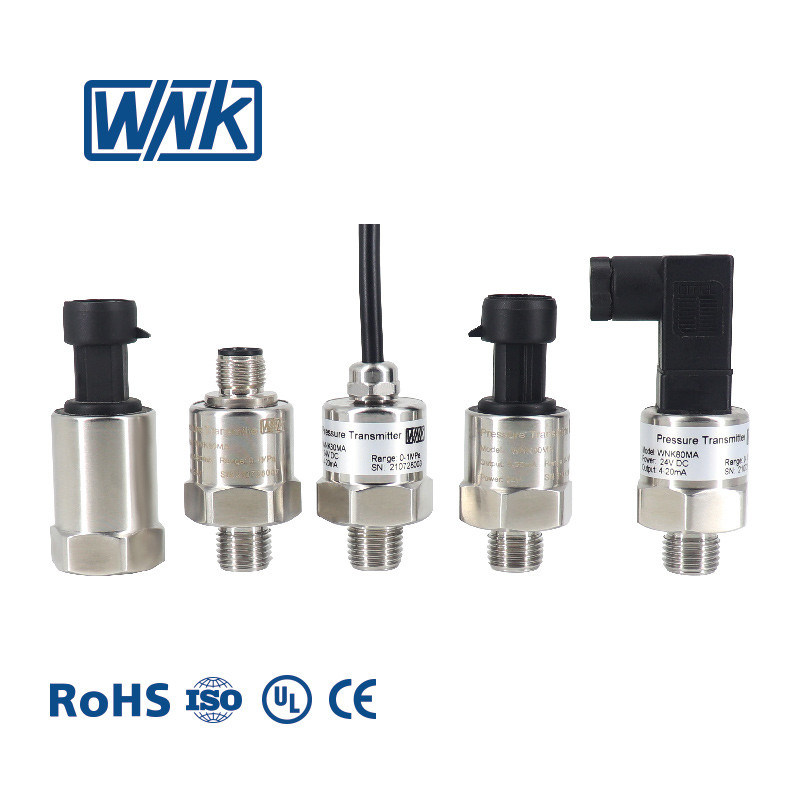

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 1
0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 3

0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 6



0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 70.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 80.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 9

0.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 100.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 110.5V-4.5V 4-20mA I2C Water Pressure Sensor For Liquid Gas Steam 12


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
