High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor

High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
1%F.S.
Pressure Range:
0-60Bar
Protection Class:
IP65
Housing Material:
304SST/316L
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Coffee Machine Pressure Sensor/relative Pressure Sensor
MOQ:
1Set
Port:
Shanghai Port
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$10.00 - $35.00/Pieces
Packaging Details
each product in one inner paper box with protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Set/Sets per Week
RELATED PRODUCTS
Good price 0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor online Video

0-10Kpa~7Mpa 0.5-4.5V 4-20mA I2C Silicon Pressure Sensor

Get Best Price
Good price Low Cost I2C Digital Pressure Sensor for Process Control/fresh Waste Water Measurements online Video

Low Cost I2C Digital Pressure Sensor for Process Control/fresh Waste Water Measurements

Get Best Price
Good price WD19 Mini Pressure Transducer , 4-20mA Ultra High Accuracy Differential Pressure Transducer online Video

WD19 Mini Pressure Transducer , 4-20mA Ultra High Accuracy Differential Pressure Transducer

Get Best Price
Good price Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor online Video

Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

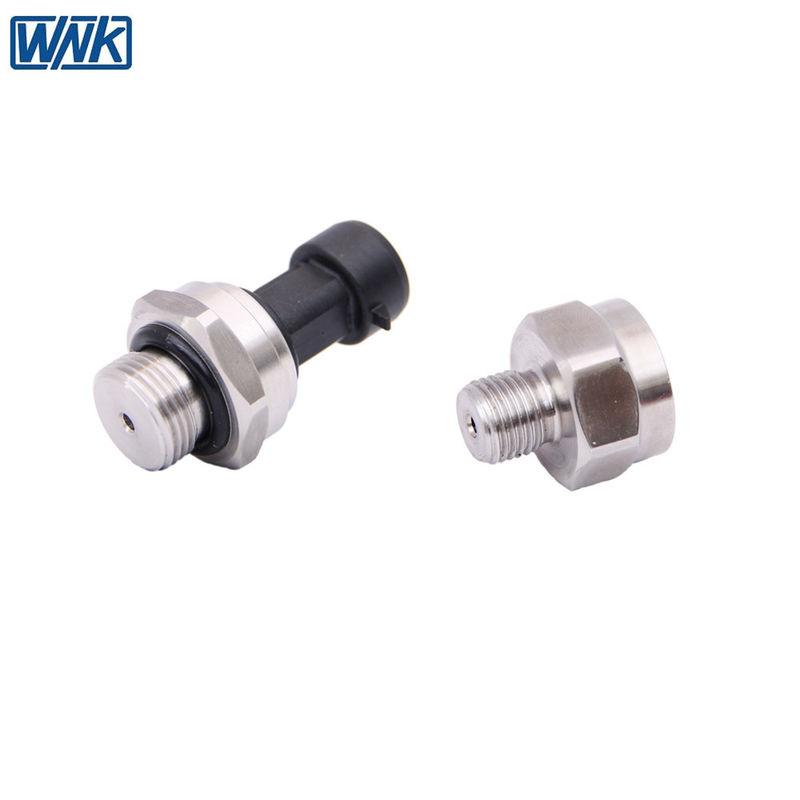

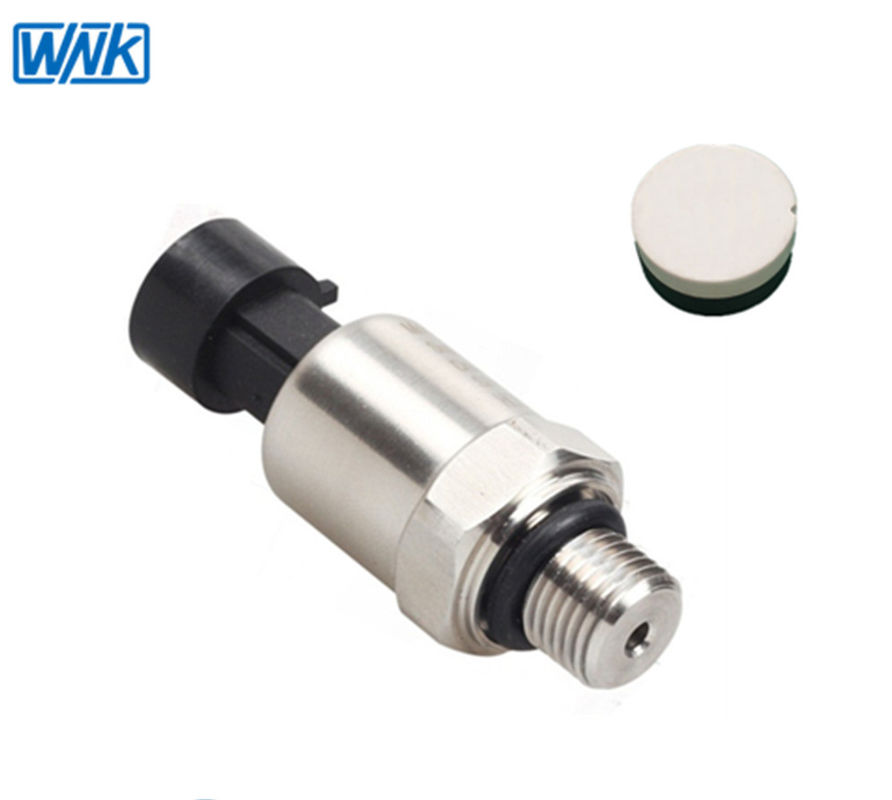

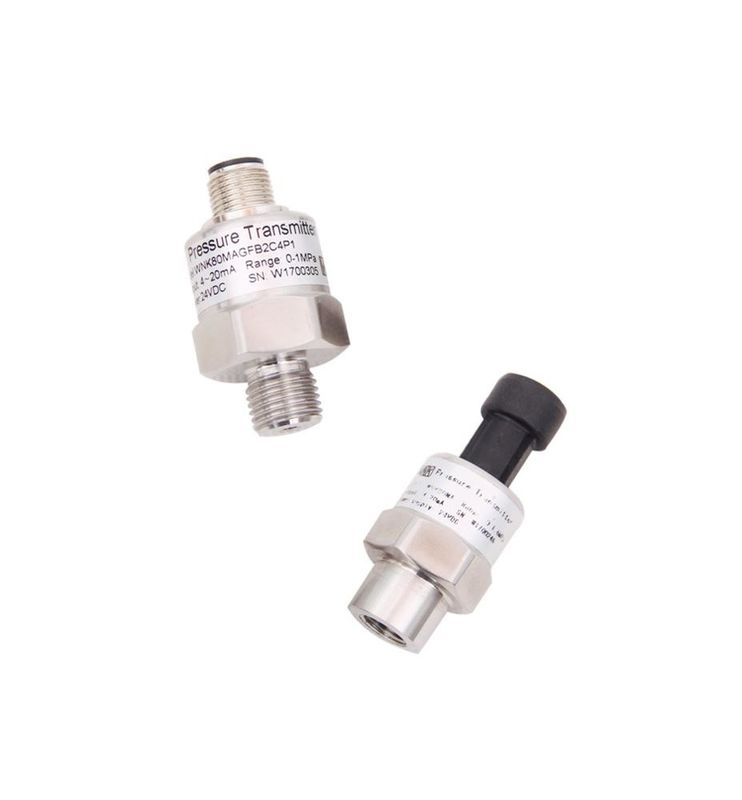

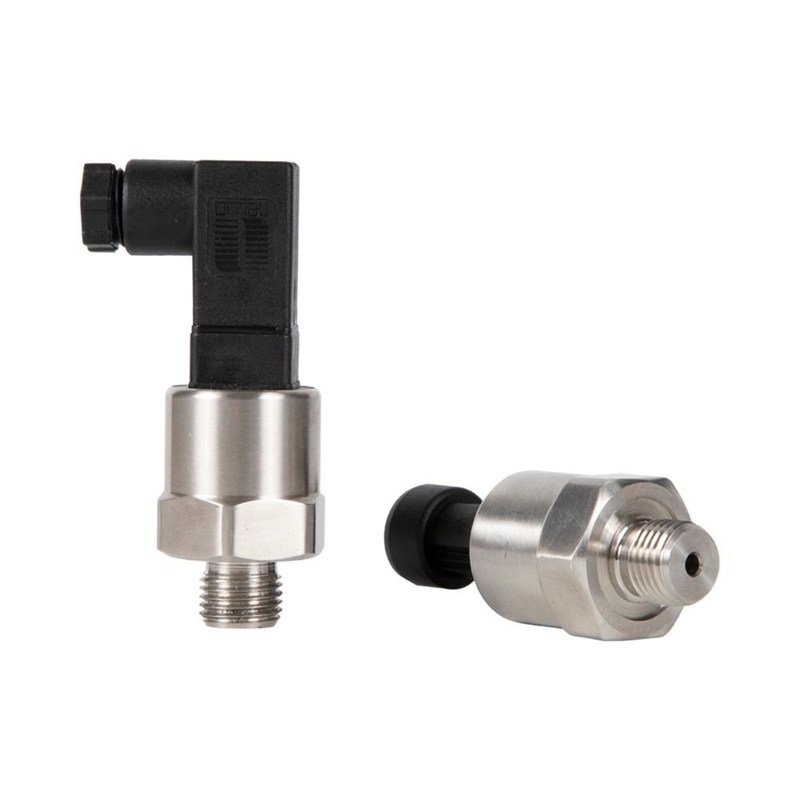

High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor




High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 0

Mems Assembled 0.5-4.5V 0-10V Relative Pressure Sensor for Coffee Machine
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.


Production Spec



WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 2
High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 4

Hot Product



High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 6





Company Information

High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 8High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 10High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 12High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 14High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 16High Stability 4-20mA Output Relative Pressure Sensor For Coffee Machine Pressure Sensor 18


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
