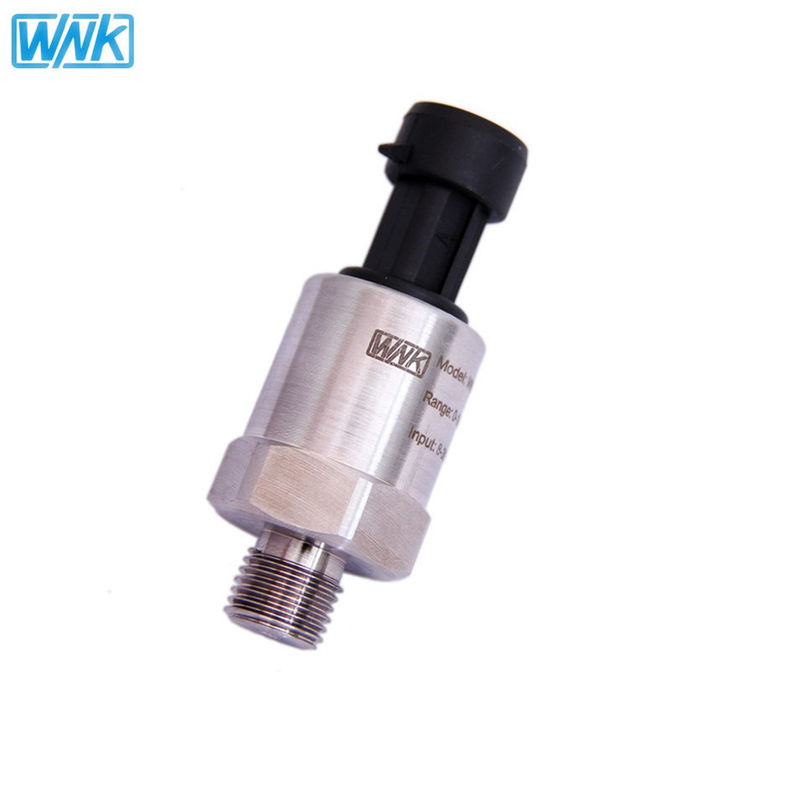

24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant

24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant

Freon Refrigerant NPT Pressure Sensor

24VDC NPT Pressure Sensor

Freon Refrigerant Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V, 0-10V
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
-100KPa~6MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC
Port:
Shanghai Port
Highlight:

Freon Refrigerant NPT Pressure Sensor

,

24VDC NPT Pressure Sensor

,

Freon Refrigerant Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with foam protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Set/Sets per Week air compressor pressure transmitter
Product Description



Air Compressor 4-20mA Pressure Transmitter 1/4 NPT Pressure Sensor For Freon Refrigerant





WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-20kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/i2c
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parker joint, customization
Mechanical connection
G1/4, 1/8NPT,M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 0
24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 2

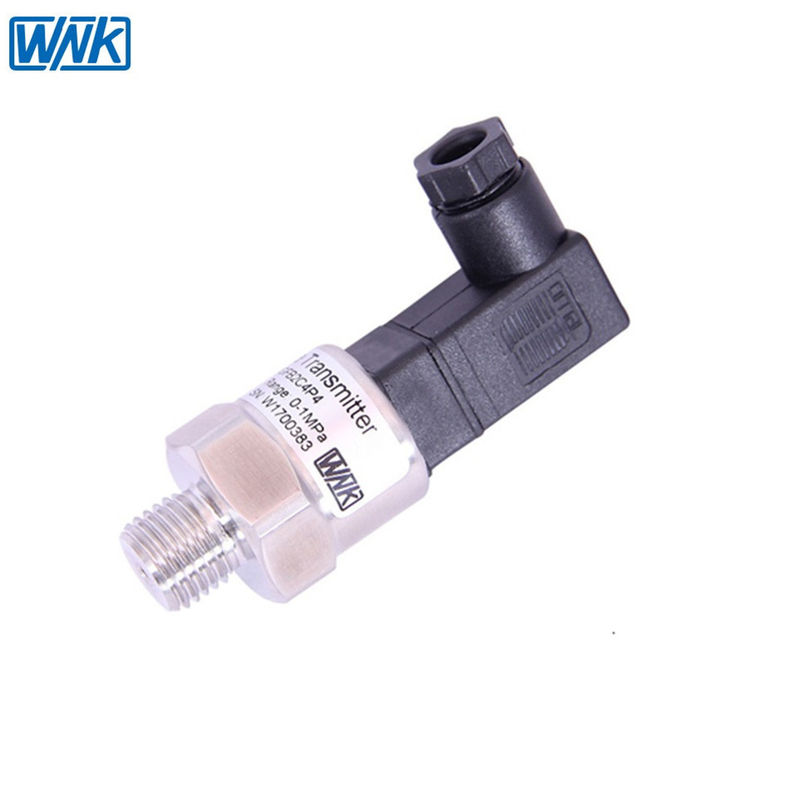

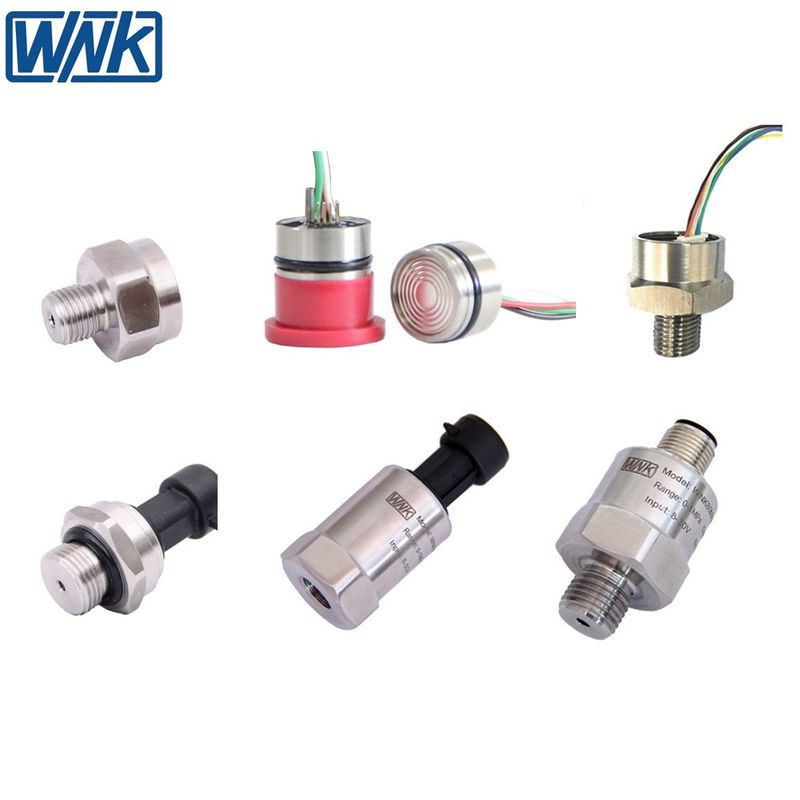

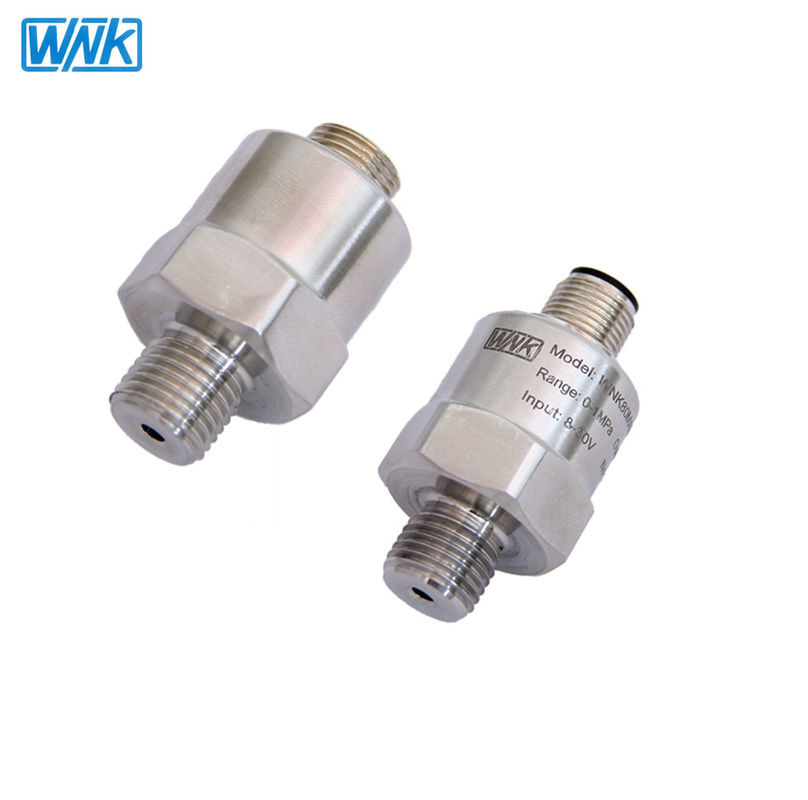

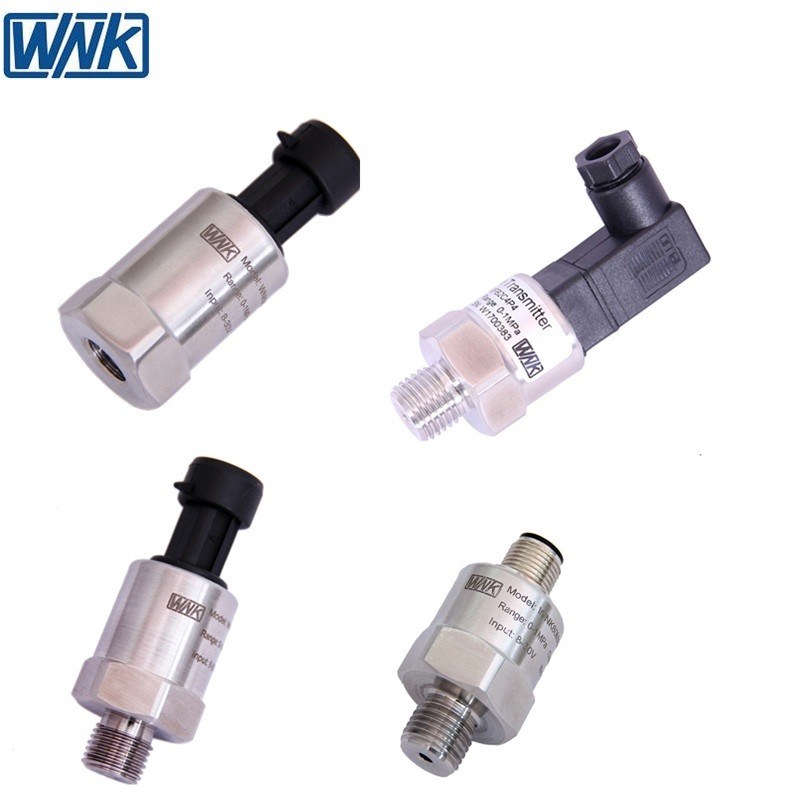

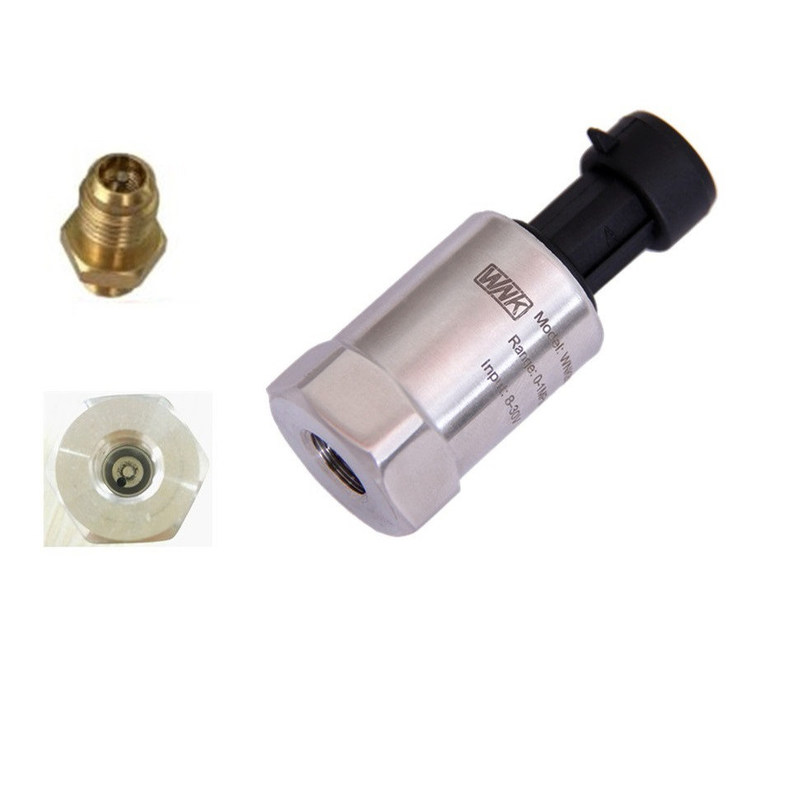

Product Show

 24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 424VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 624VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 8

Hot Product



24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 10





Company Information

24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 12



Exhibition

 24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 14





Certification

 24VDC 1/4 NPT Pressure Sensor ExidIICT6 For Freon Refrigerant 15




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
