Place of Origin:
Anhui, China
Brand Name:
WNK
Model Number:
WNK 8010

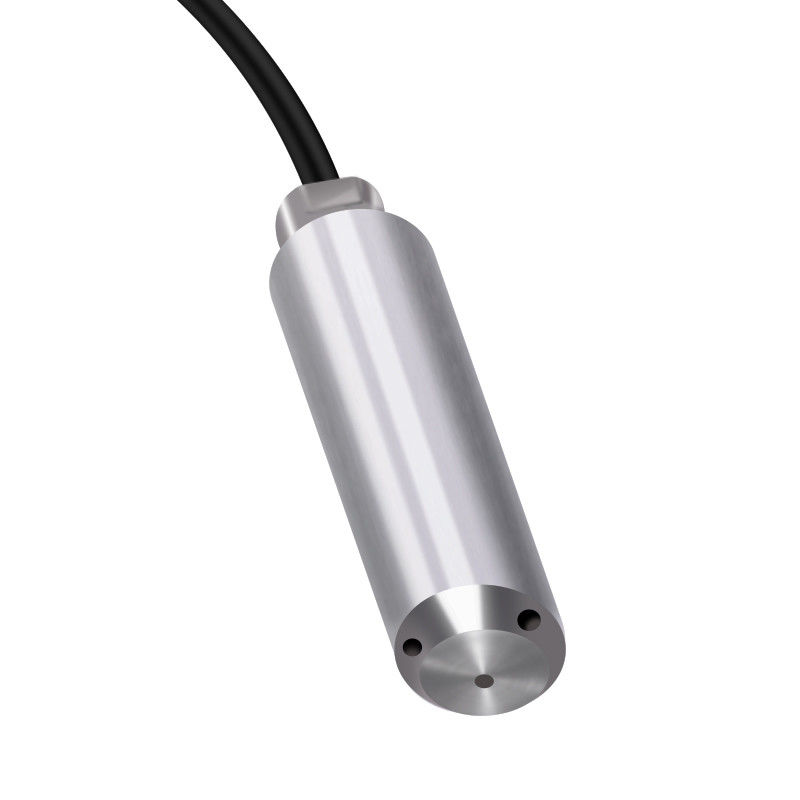

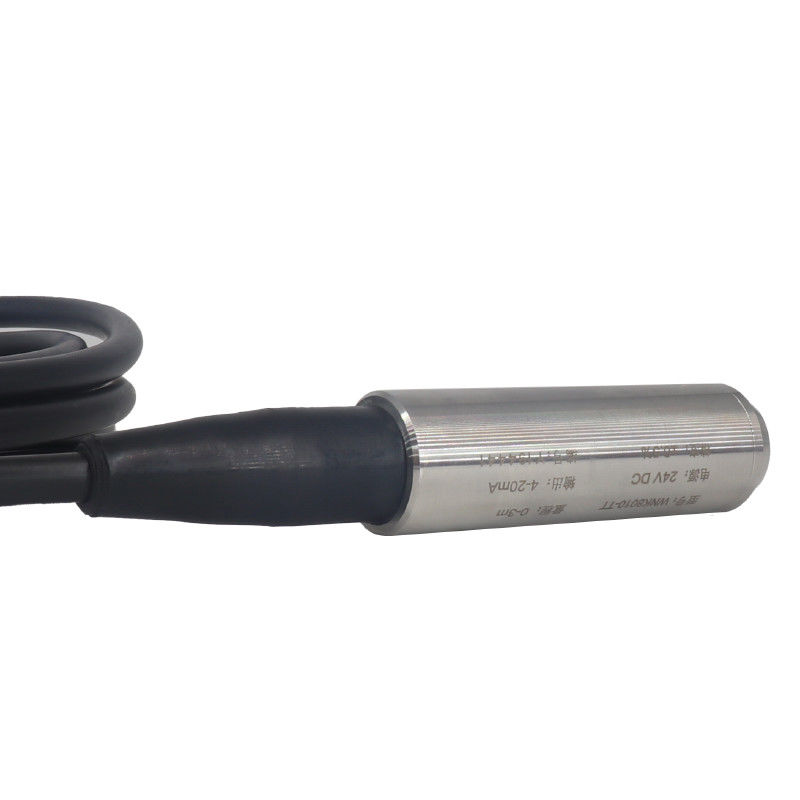

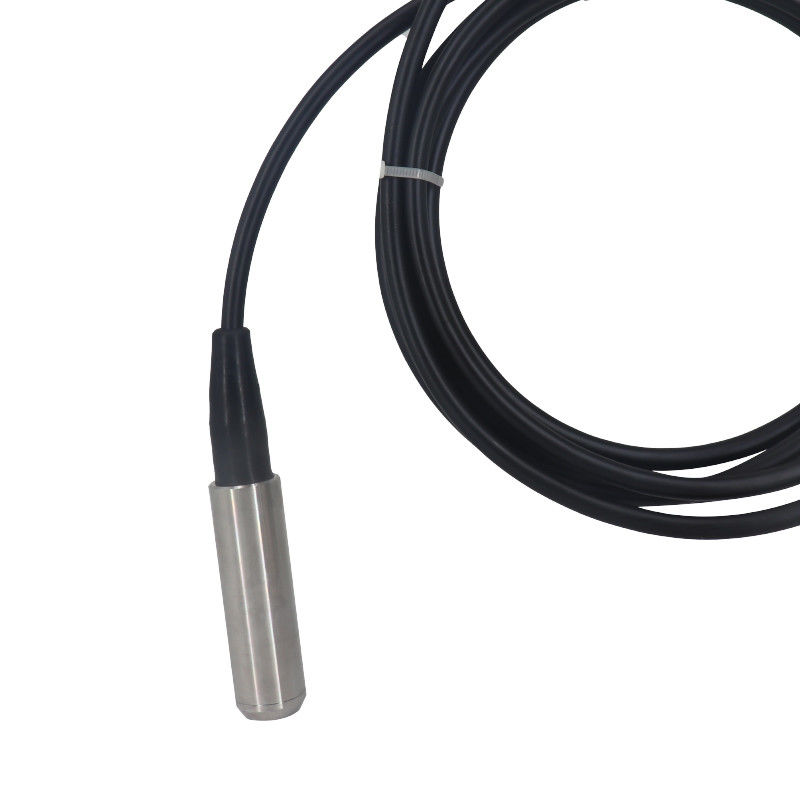

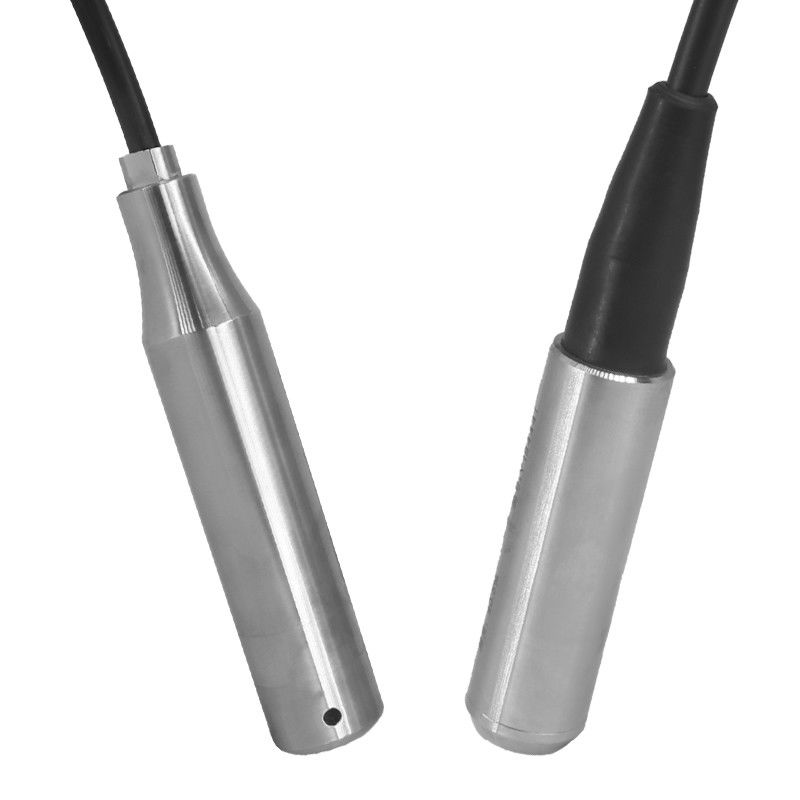

4-20Ma submersible Water Liquid Level Sensor Transmitter for water oil
| Product Name | 4-20Ma submersible Level Sensor Transmitter for water oil |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V |
| Accuracy | 0.2%FS/0.5%FS |
| Level Range | 0-200 mH2O |
| Overload | 150% times |
| Working temperature | -20~85 |
| Housing material | SST |
| Cable material | Polyvinyl Fluoride, PTFE |
| Stability | 0.2%FS/year |
| Power supply | 24VDC |
Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element, with the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
| >> Certifications |
| >> Exhibitions |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.Large orders are recommended to ship by sea
