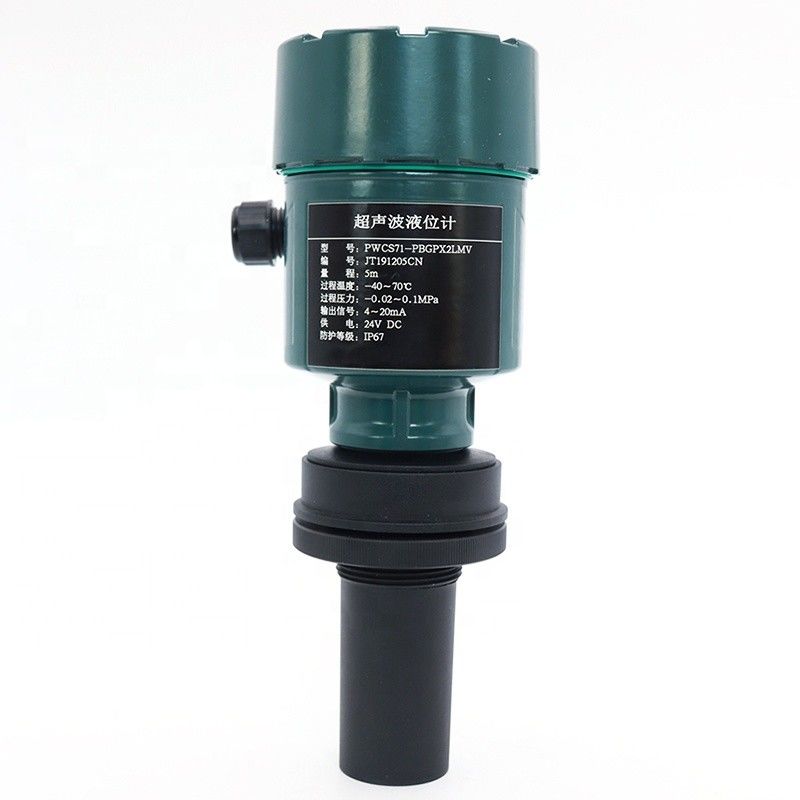

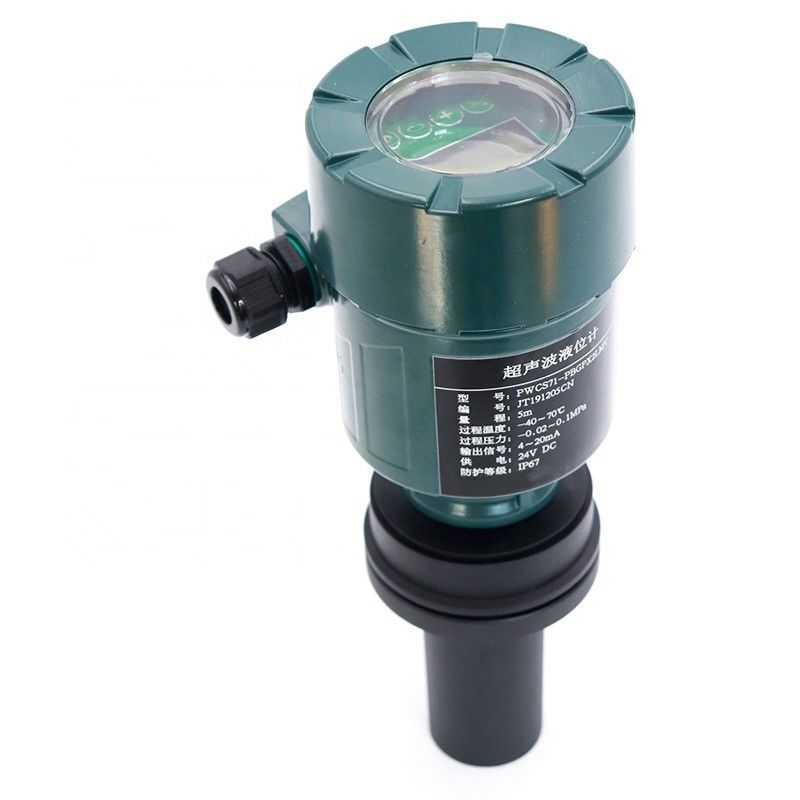

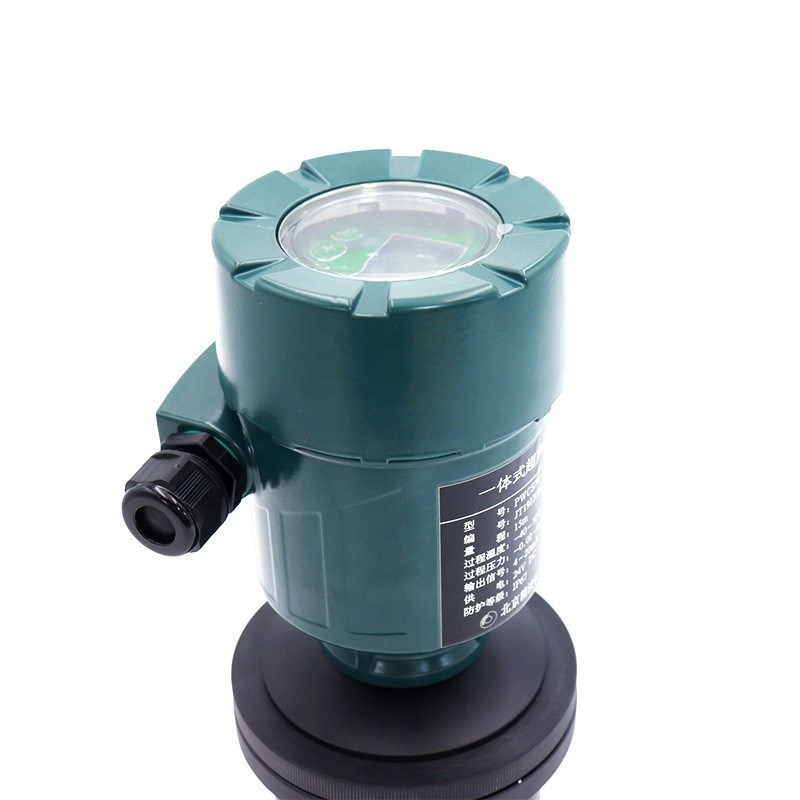

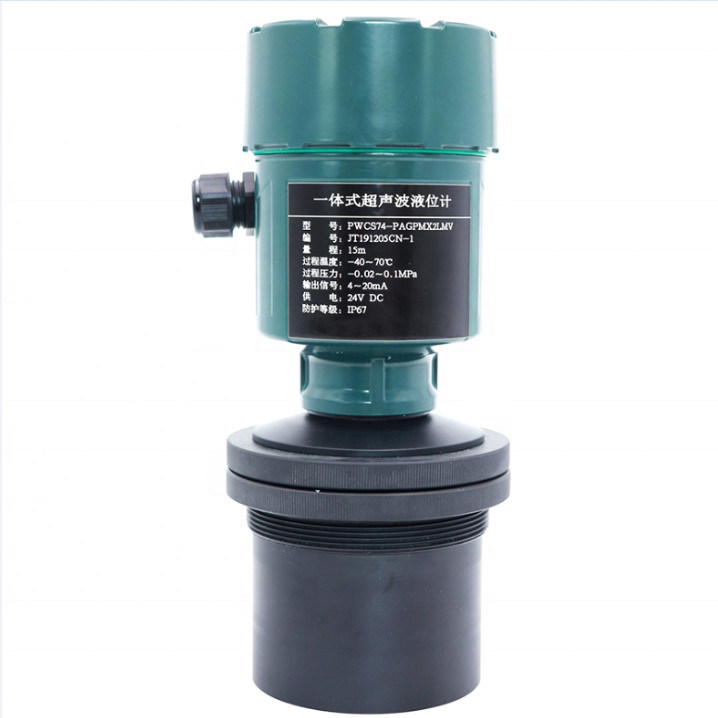

China Ultrasonic Liquid Level Sensor Water Level Meter

China Ultrasonic Liquid Level Sensor Water Level Meter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

PWCS72

Contact Us
Request A Quote
China Ultrasonic Liquid Level Sensor Water Level Meter China Ultrasonic Liquid Level Sensor Water Level Meter China Ultrasonic Liquid Level Sensor Water Level Meter China Ultrasonic Liquid Level Sensor Water Level Meter China Ultrasonic Liquid Level Sensor Water Level Meter China Ultrasonic Liquid Level Sensor Water Level Meter
Product Details
Grade:
Industrial
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Product Name:
China Ultrasonic Liquid Level Sensor Water Level Meter
Measuring Range:
0.3-10m
Process Connection:
G1 1/2A Or Flange, Bracket
Housing Material:
Aluminum/ABS
Accuracy:
0.25%FS
Transducer Material:
PA66+GF30/PVDF
Process Temperature:
-40-70℃
Process Pressure:
-0.02-0.1MPa
Output:
4-20 MA/HART/RS485/Modbus
Explosion-proof Grade:
Exia IIB T6 Ga
Port:
Shanghai
Payment & Shipping Terms
Price
$160.00 - $250.00/Units
Packaging Details
Cartons
Supply Ability
5000 Unit/Units per Month Ultrasonic Liquid Level Sensor
RELATED PRODUCTS
Good price 4-20mA 0.5-4.5V RS485 Submersible Water Level Sensor Transmitter for Agricultural Irrigation online Video

4-20mA 0.5-4.5V RS485 Submersible Water Level Sensor Transmitter for Agricultural Irrigation

Get Best Price
Good price Comprehensive Probe style Water Level Sensor (Submersible) for Diverse Applications online Video

Comprehensive Probe style Water Level Sensor (Submersible) for Diverse Applications

Get Best Price
Good price Submersible Water Level Sensor with 0-1~200 MH2O Range and 12-36V Power Supply online Video

Submersible Water Level Sensor with 0-1~200 MH2O Range and 12-36V Power Supply

Get Best Price
Good price Submersible Probe Water Level Transmitter With 0.25%FS Stability (IP68 online Video

Submersible Probe Water Level Transmitter With 0.25%FS Stability (IP68

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description
Product Parameters
Product number
PWCS71
PWCS72
PWCS73
Measuring range
0.25-5m
0.3-10m
0.4-10m
Process temperature
(-40 ~ 70)℃
(-40 ~ 70)℃
(-40 ~ 70)℃
Process pressure
(-0.02 ~ 0.1)MPa
(-0.02 ~ 0.1)MPa
(-0.02 ~ 0.1)MPa
Precision
±0.25% (full range)
±0.25% (full range)
±0.25% (full range)
Process connection
M66×2 or flange transducer
M66×2 or flange transducer
M95×2 or flange
Signal output
(4-20)mA/HART protocol (24V DC two-wire system/four-wire system)
(4-20)mA/HART protocol
(24V DC two-wire system/four-wire system)
(4-20)mA/HART protocol
(24V DC two-wire system/four-wire system)
Protection grade
IP 67
IP 67
IP 67
Explosion-proof grade
Exia IIB T6 Ga
Exia IIB T6 Ga
Exia IIB T6 Ga
Shell material
PA66+GF30 or PVDF
PA66+GF30 or PVDF
PA66+GF30 or PVDF
China Ultrasonic Liquid Level Sensor Water Level Meter 0

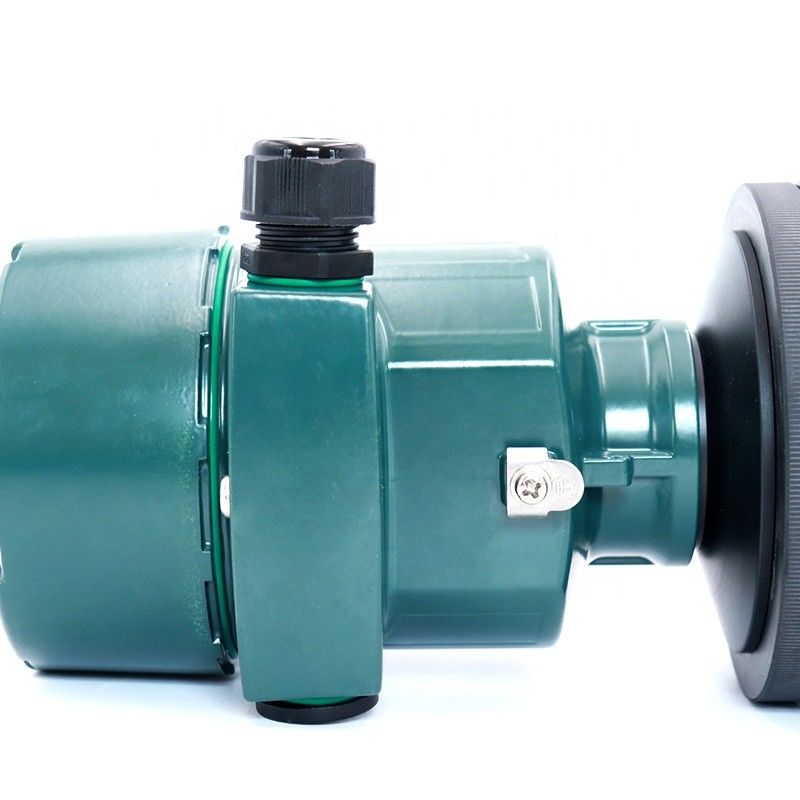

Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function

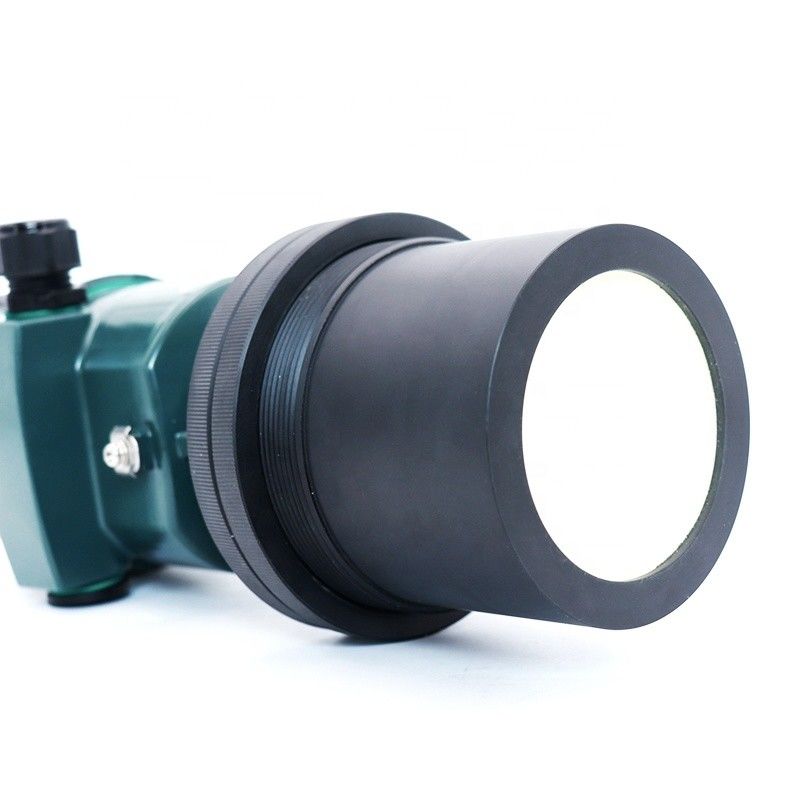

Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
China Ultrasonic Liquid Level Sensor Water Level Meter 2
China Ultrasonic Liquid Level Sensor Water Level Meter 4

High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction





Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
China Ultrasonic Liquid Level Sensor Water Level Meter 6
Application Case
Commonly used to measure water levels in wells,boreholes and water level stubs ,it is particularly suitable for the observation of water table in hydropower projects or the artificial inspection of the dam body immersion line of the earth and stone dam body
China Ultrasonic Liquid Level Sensor Water Level Meter 8
China Ultrasonic Liquid Level Sensor Water Level Meter 10
China Ultrasonic Liquid Level Sensor Water Level Meter 12
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
China Ultrasonic Liquid Level Sensor Water Level Meter 14
China Ultrasonic Liquid Level Sensor Water Level Meter 16
Product Warehouse
China Ultrasonic Liquid Level Sensor Water Level Meter 18
China Ultrasonic Liquid Level Sensor Water Level Meter 20
China Ultrasonic Liquid Level Sensor Water Level Meter 22
China Ultrasonic Liquid Level Sensor Water Level Meter 24
Hot Products
Company Profile
China Ultrasonic Liquid Level Sensor Water Level Meter 26
China Ultrasonic Liquid Level Sensor Water Level Meter 28
China Ultrasonic Liquid Level Sensor Water Level Meter 30
Packing&Shipping
China Ultrasonic Liquid Level Sensor Water Level Meter 32
China Ultrasonic Liquid Level Sensor Water Level Meter 34
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
