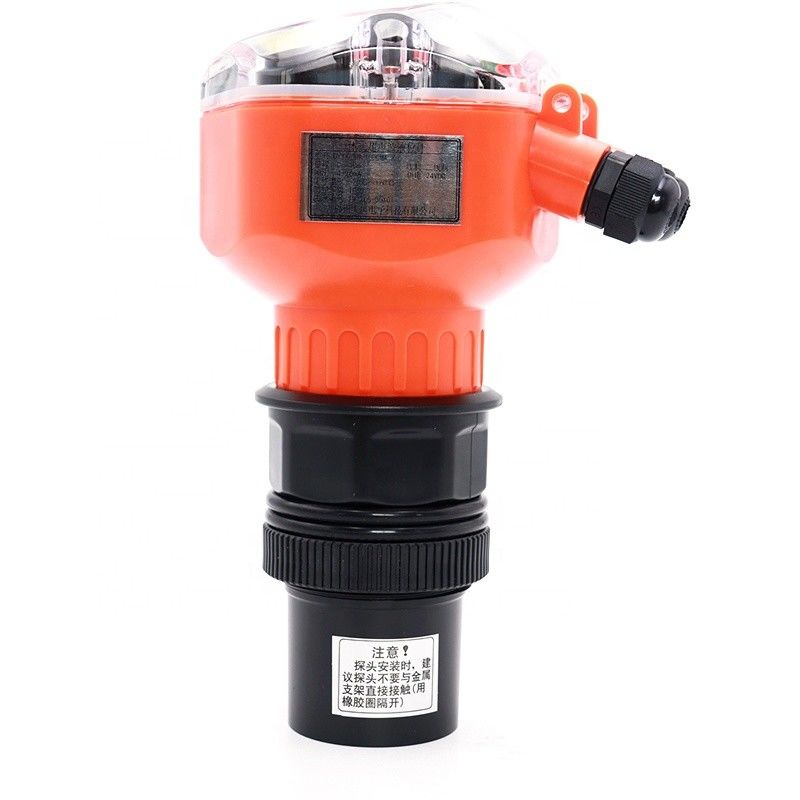

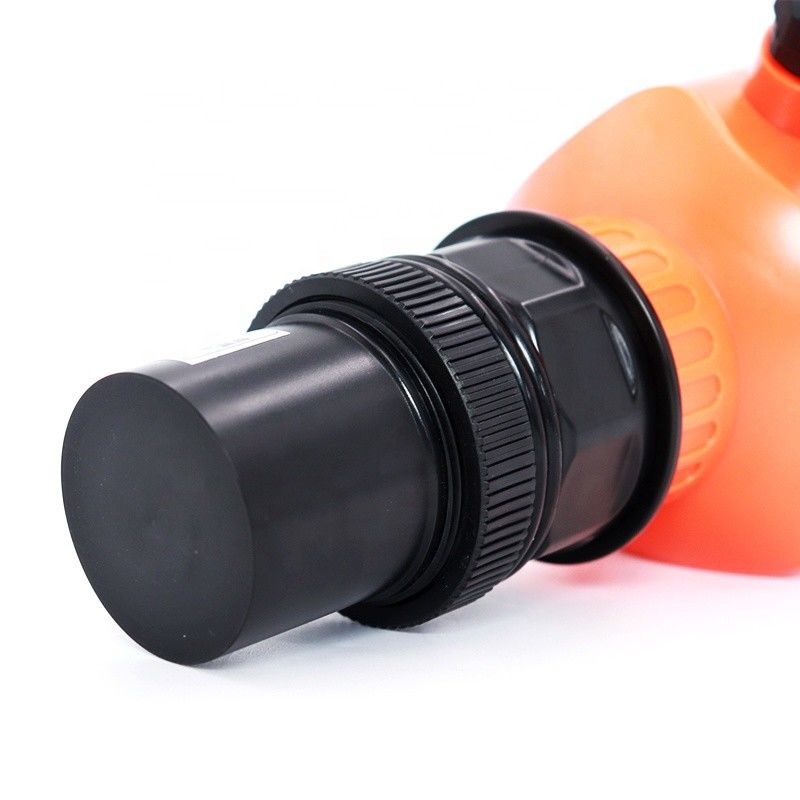

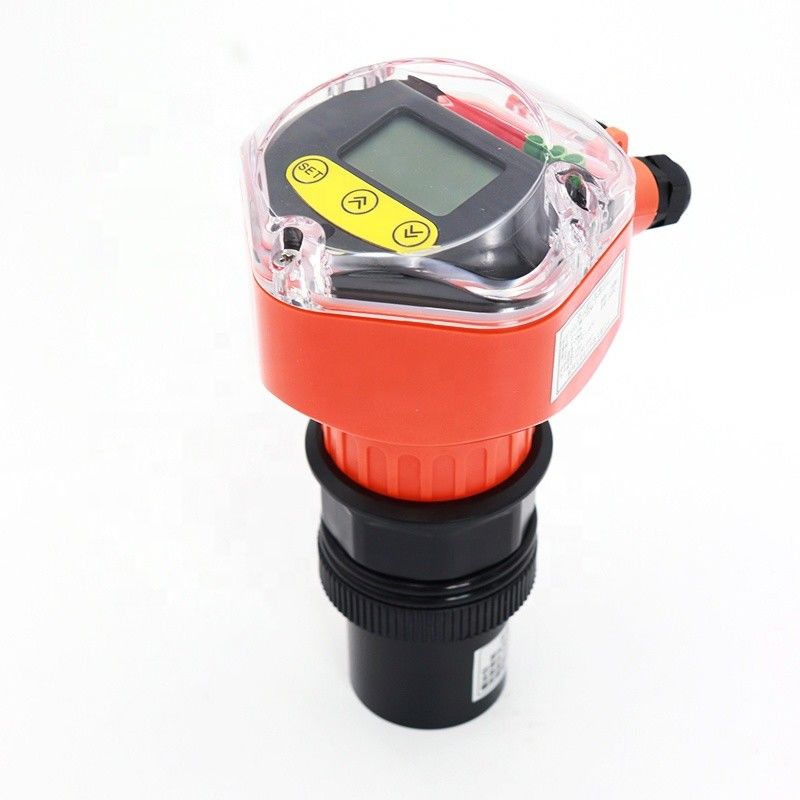

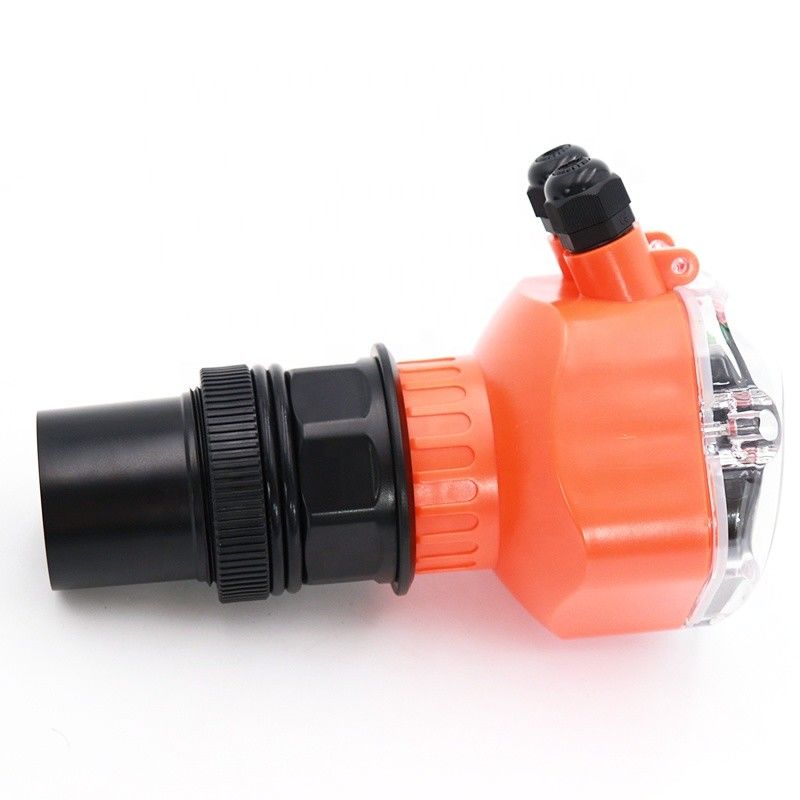

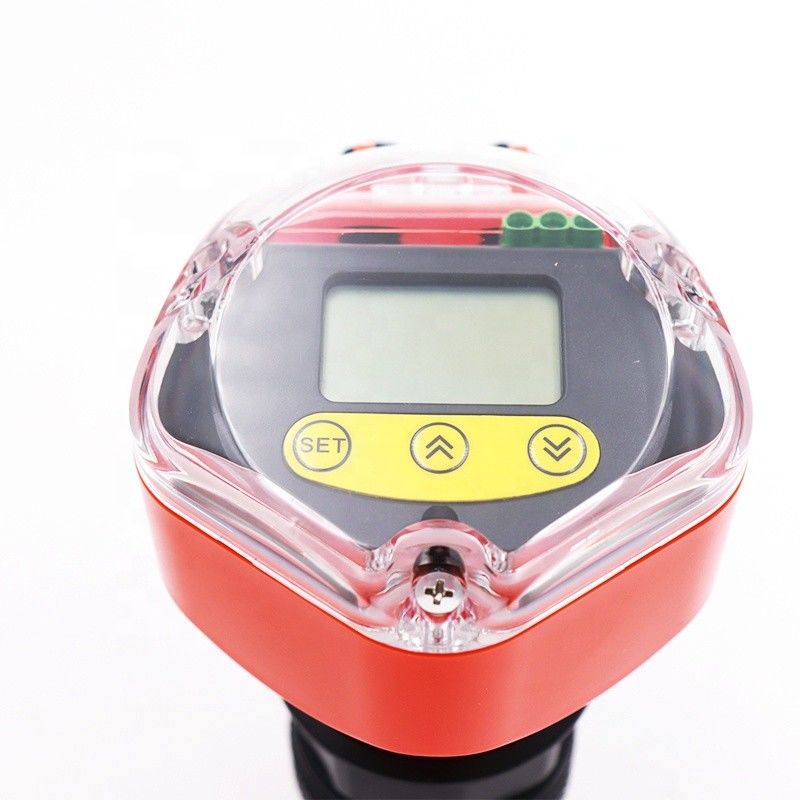

24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter

24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK-YTS56

Contact Us
Request A Quote
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter
Product Details
Product Name:
4-20mA Ultrasonic Liquid Level Meter
Measuring Range:
0.5%~1.0%
Resolution:
3mm Or 0.1%
Digital Output:
485,232
Power Supply:
24VDC
Protection Class:
Display Instrument -20 ~ + 60 ℃, Probe -20 ~ + 80 ℃
Process Pressure:
-0.02-0.1MPa
Installation Size:
Thread Or Flange
Keywords:
Ultrasonic Liquid Level Meter
MOQ:
1
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$200.00/Units 1-49 Units
Packaging Details
Neutral carton packing or as per your requirement.
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000/ Piece/ Month
RELATED PRODUCTS
Good price 4-20mA 0.5-4.5V RS485 Submersible Water Level Sensor Transmitter for Agricultural Irrigation online Video

4-20mA 0.5-4.5V RS485 Submersible Water Level Sensor Transmitter for Agricultural Irrigation

Get Best Price
Good price Comprehensive Probe style Water Level Sensor (Submersible) for Diverse Applications online Video

Comprehensive Probe style Water Level Sensor (Submersible) for Diverse Applications

Get Best Price
Good price Submersible Water Level Sensor with 0-1~200 MH2O Range and 12-36V Power Supply online Video

Submersible Water Level Sensor with 0-1~200 MH2O Range and 12-36V Power Supply

Get Best Price
Good price Submersible Probe Water Level Transmitter With 0.25%FS Stability (IP68 online Video

Submersible Probe Water Level Transmitter With 0.25%FS Stability (IP68

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description
Product Category
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 0

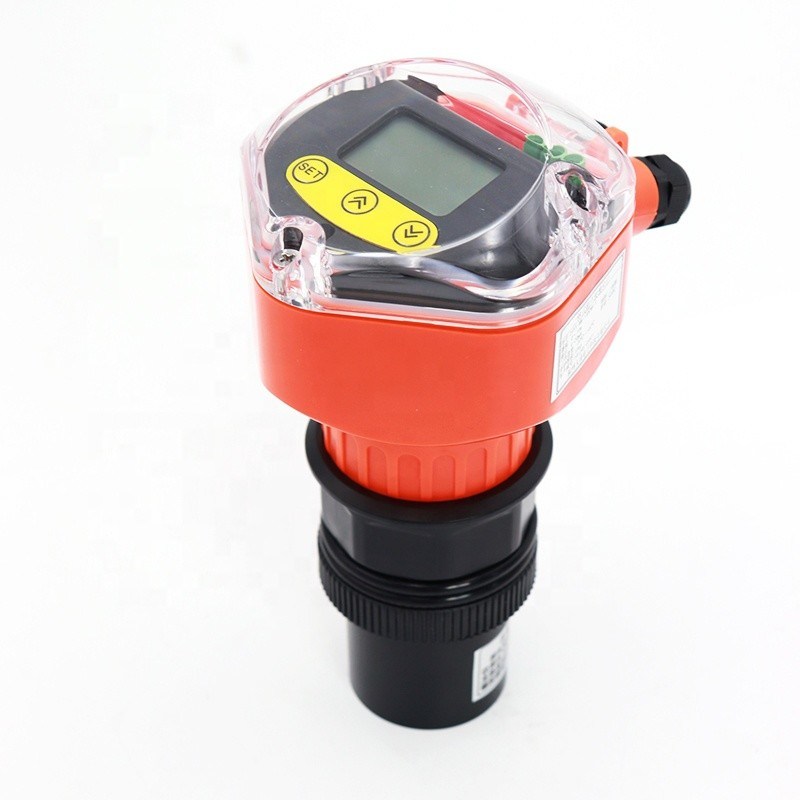

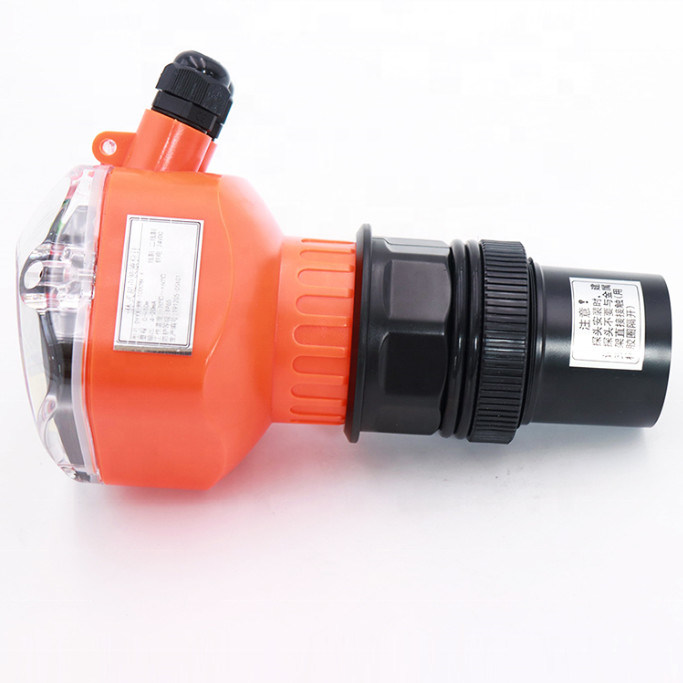

Integrated ultrasonic level gauge
The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries


Ultrasonic level gauge
Ultrasonic level gauge is a kind of low cost measuring equipment for measuring liquid, slurry and solid on site. A large number of
applications in water treatment, municipal, chemical, machinery manufacturing industries
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 2
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 4
Split-type ultrasonic level gauge
The split ultrasonic level gauge has a separate sensor from the host, which is more suitable for installation on storage tanks, silos and brackets. It is a low-cost measuring device for measuring liquids, slurries, and solids on the industrial site. A large number of applications in the metallurgical and mechanical manufacturing industries
Application Case
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 6
Product Parameters
Features
Integrated
Range
5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Measurement Accuracy
0.5%~1.0%
Resolution
3mm or 0.1% (whichever is greater)
Display
Chinese LCD or English LCD
Analog Output
2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
Digital Output
Optional 485, 232
Relay Output
Optional 2 sets of AC 250V / 5A or DC 30V / 5A
Powered
Standard 24VDC, optional 220V AC + 15% 50HZ
Ambient Temperature
Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
Protection Class
Display instrument IP65, probe IP68
Probe Cable
No
Installation Size
Thread or flange
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 8
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 10
Hot Products

Company Profile
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 12
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 14
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 16
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 18
Packing&Shipping
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 20
24VDC 4 Wire 4-20mA Ultrasonic Level Sensor Oil Level Transmitter 22
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
