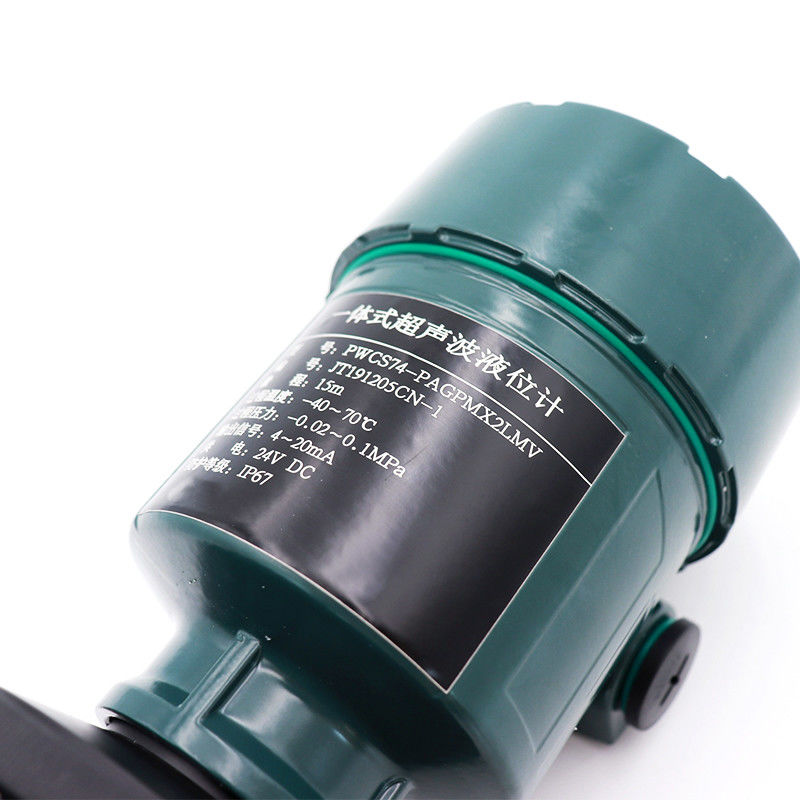

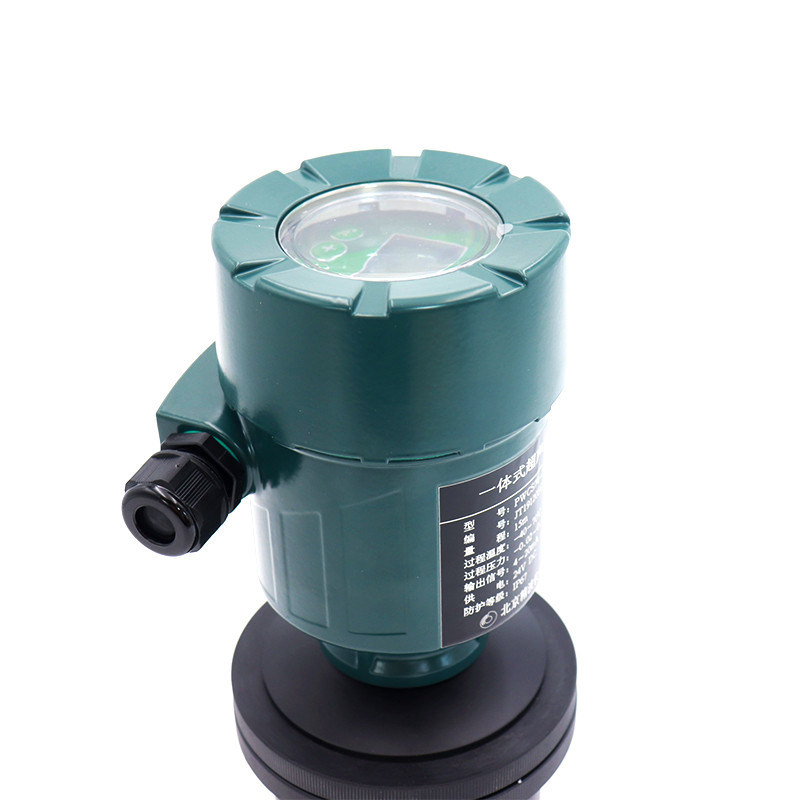

Name: Ultrasonic Water Level Sensor Ultrasonic Level Gauge 4-20 mA/HART/RS485/Modbus output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: PWCS72
Price: Negotiable USD
Availability: InStock

Home > products > Water Level Transmitter >

Ultrasonic Water Level Sensor Ultrasonic Level Gauge 4-20 mA/HART/RS485/Modbus output

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

PWCS72

Request A Quote

Ultrasonic Water Level Sensor Ultrasonic Level Gauge 4-20 mA/HART/RS485/Modbus output

Product Details

Product Name:

Ultrasonic Water Level Sensor

Measuring Range:

0.3-10m

Process Connection:

G1 1/2A Or Flange, Bracket

Housing Material:

Aluminum/ABS

Accuracy:

0.25%FS

Transducer Material:

PA66+GF30/PVDF

Process Temperature:

-40-70℃

Process Pressure:

-0.02-0.1MPa

Output:

4-20 MA/HART/RS485/Modbus

Explosion-proof Grade:

Exia IIB T6 Ga

Payment & Shipping Terms

Price

$200.00/Units 1-49 Units

4-20mA 0.5-4.5V RS485 Submersible Water Level Sensor Transmitter for Agricultural Irrigation

Get Best Price

Video

Comprehensive Probe style Water Level Sensor (Submersible) for Diverse Applications

Get Best Price

Video

Submersible Water Level Sensor with 0-1~200 MH2O Range and 12-36V Power Supply

Get Best Price

Video

Submersible Probe Water Level Transmitter With 0.25%FS Stability (IP68

Get Best Price

86-551-65369655

Contact Now

Product Description

Products Description

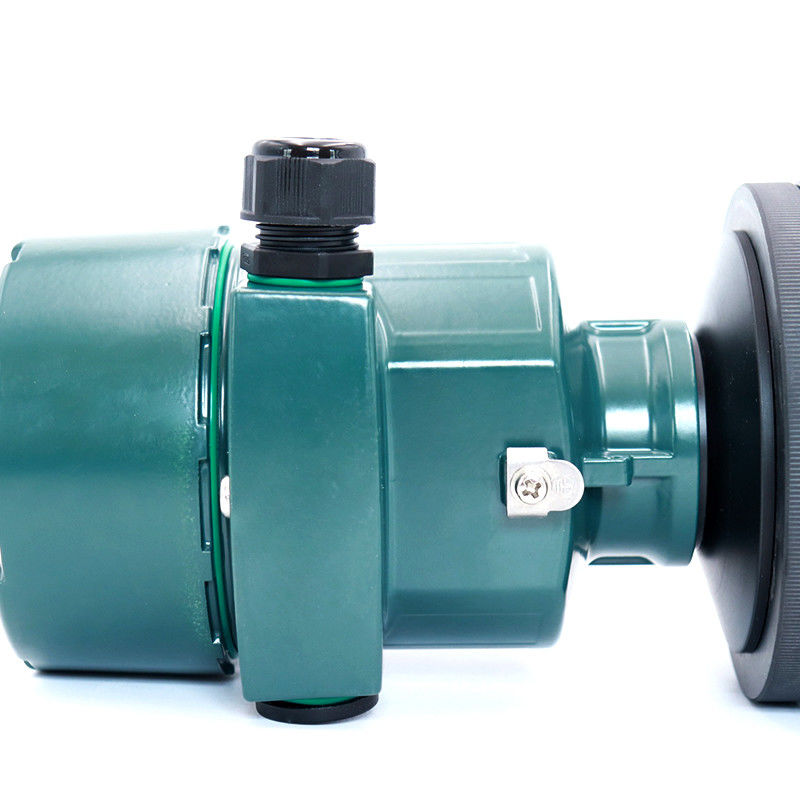

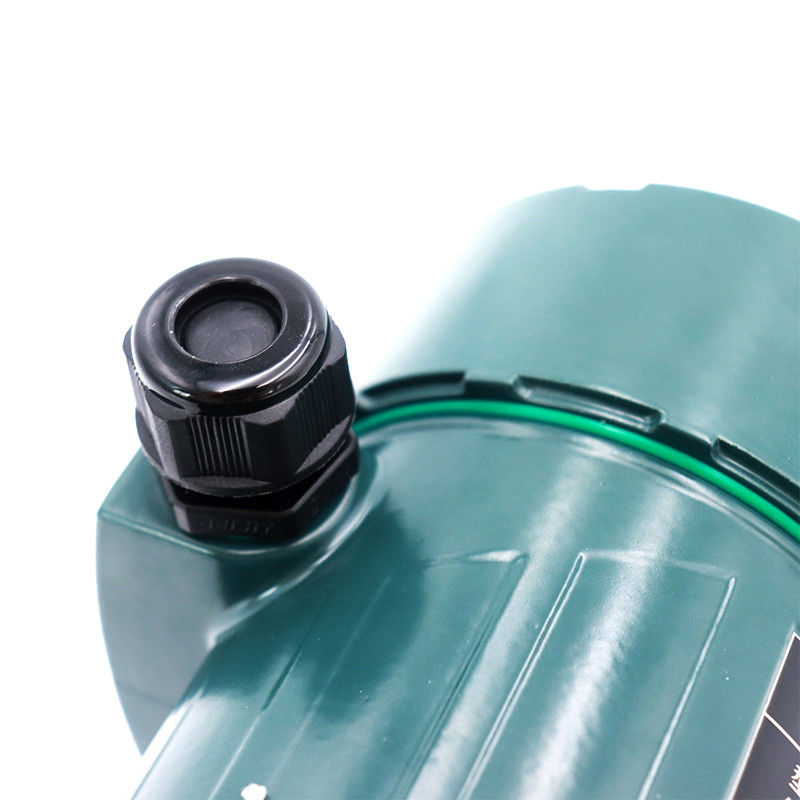

Aluminum Housing material

The Housing is made of aluminum with specific explosion-proof function

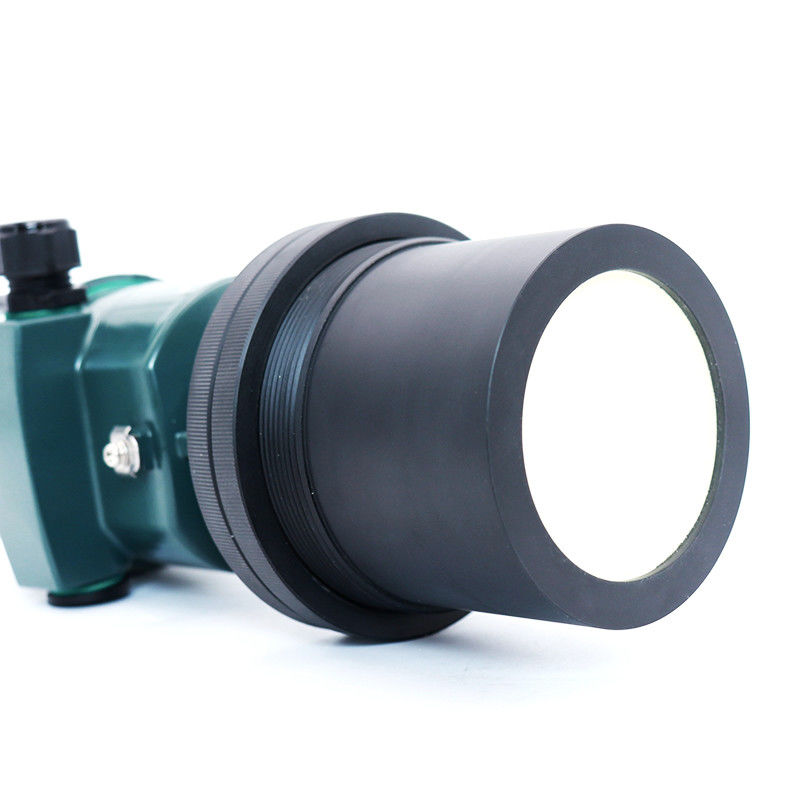

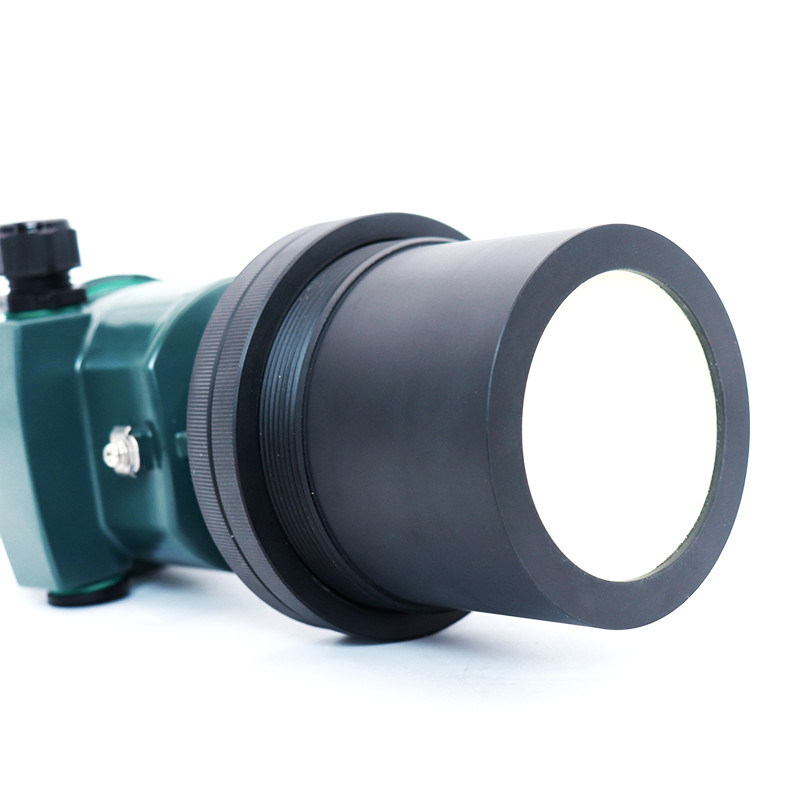

Two transducer options

Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment

High Technology Functions

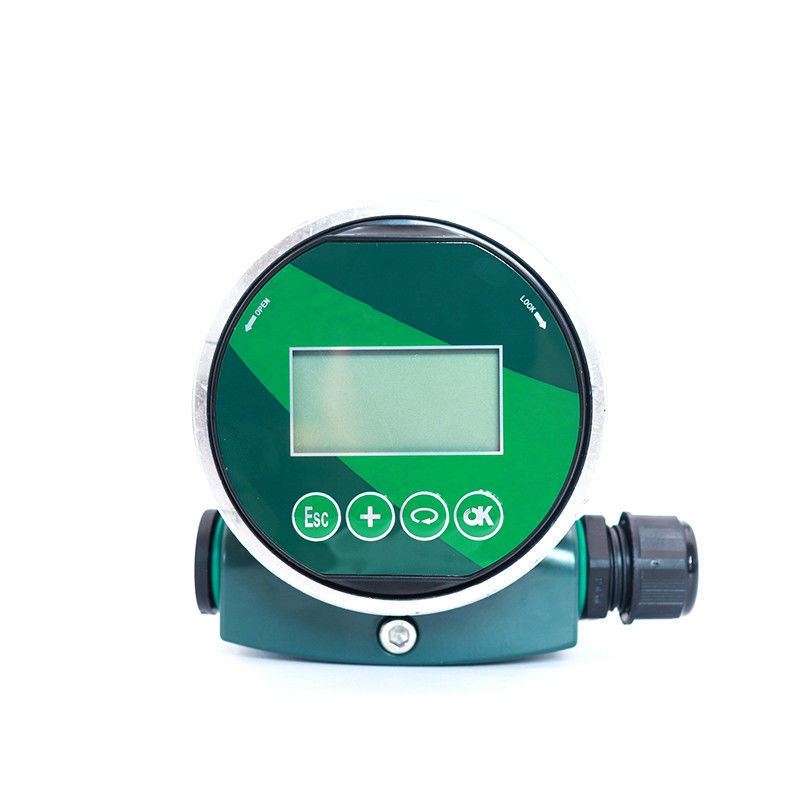

Echo curve display function

False echo storage function

Frequency adjustment function

Noise filteringfunction

Wide Measuring Range and High Accuracy

Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy

Application Case

Model	Measuring Range	Process Connection	Transducer Material
PWCS71	0.25-5m	G11/2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS72	0.3-10m	G2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS73	0.4-10m	M66*2/Flange/Bracket	PA66+GF30/PVDF
PWCS74	0.5-20m	M95*2/Flange/Bracket	PA66+GF30

Installation Guide

The transducer shall be vertical to the medium surface

The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible

Hot Products

Packing&Shipping

Company Profile

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
