304SST Absolute Smart Pressure Sensor With Display LED

304SST Absolute Smart Pressure Sensor With Display LED

Absolute Smart Pressure Sensor

304SST Smart Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK805

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
-100KPa~60MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
10.5-55V DC, 10.5-30V DC
Product Name:
304SST Absolute Pressure Transmitter 4-20ma With Display LED
Port:
Shanghai Port
Highlight:

Absolute Smart Pressure Sensor

,

304SST Smart Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$45.00 - $65.00/Pieces
Packaging Details
each product in one inner paper box with foam protection
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Set/Sets per Week Absolute Pressure Transmitter
Product Description

304SST Absolute Pressure Transmitter 4-20ma With Display LED



WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.


WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Output signals
4~20mA, 1-5V for optional
Accuracy
0.2, 0.5
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize; Diaphragm, Clamp

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃
304SST Absolute Smart Pressure Sensor With Display LED 0

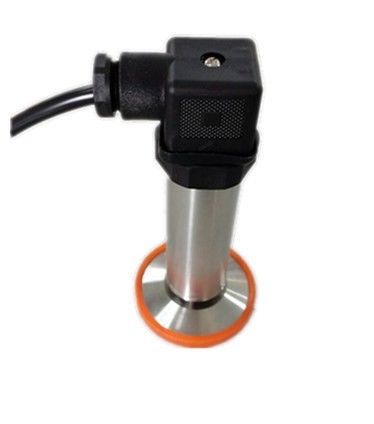

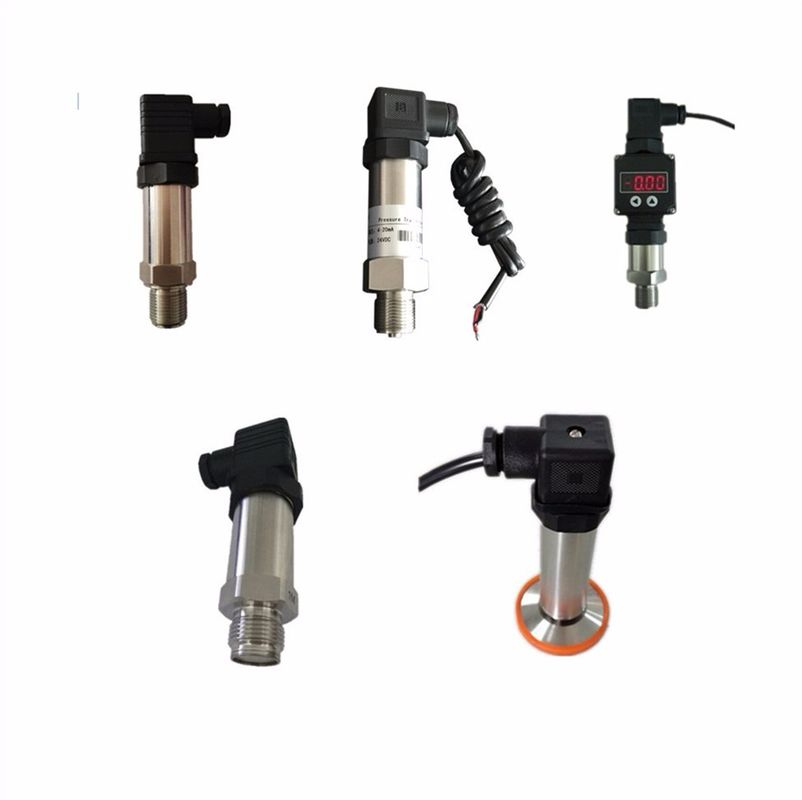

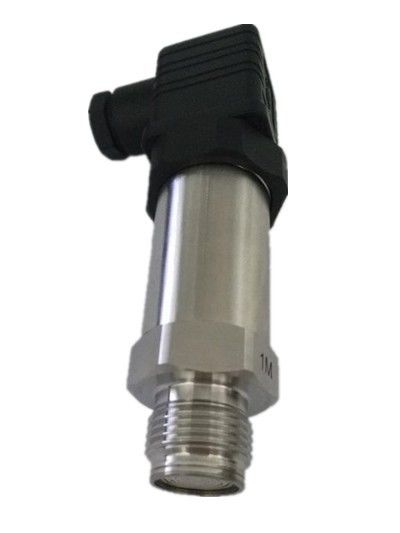

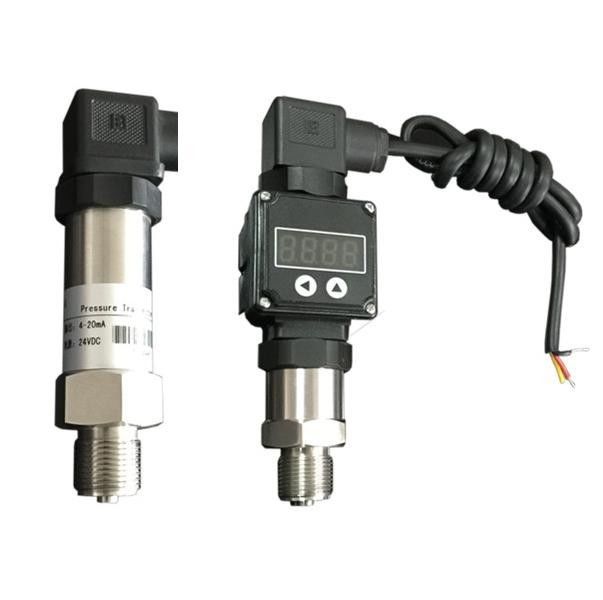

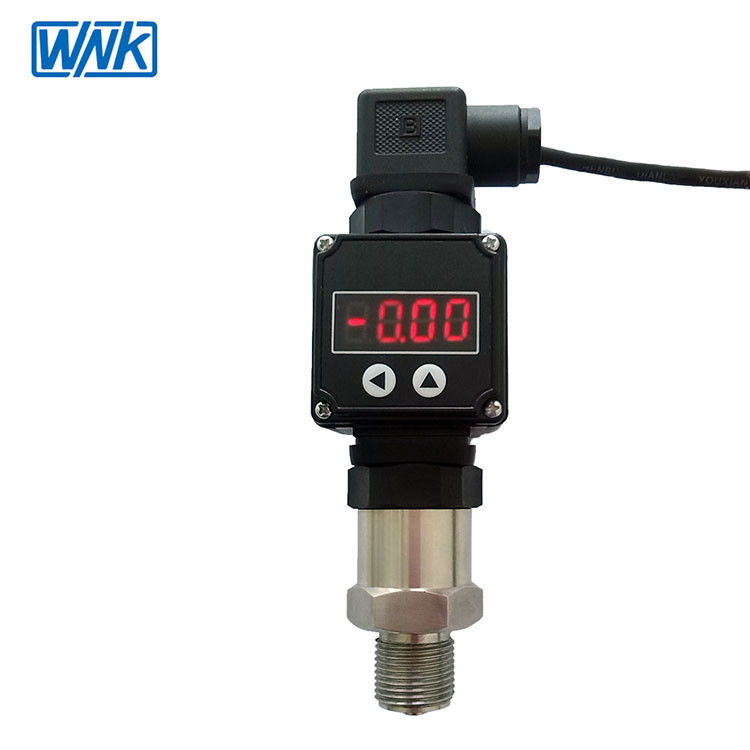

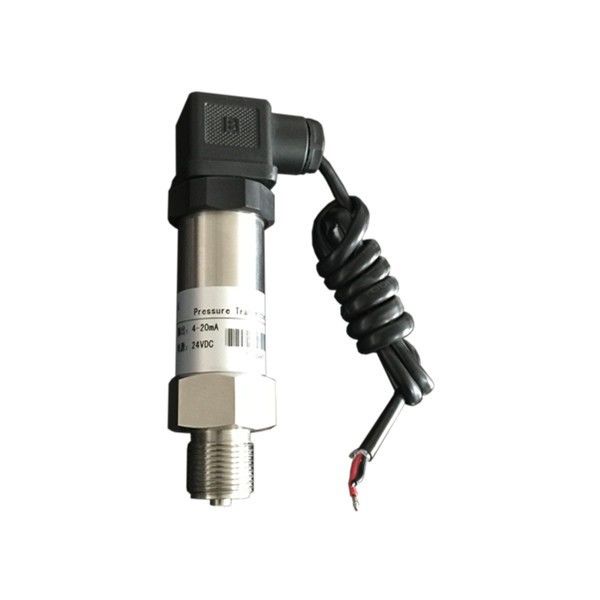

Product Show



304SST Absolute Smart Pressure Sensor With Display LED 2
304SST Absolute Smart Pressure Sensor With Display LED 4
304SST Absolute Smart Pressure Sensor With Display LED 6
304SST Absolute Smart Pressure Sensor With Display LED 8
304SST Absolute Smart Pressure Sensor With Display LED 10

Hot Product



304SST Absolute Smart Pressure Sensor With Display LED 12





Company Information

304SST Absolute Smart Pressure Sensor With Display LED 14304SST Absolute Smart Pressure Sensor With Display LED 16304SST Absolute Smart Pressure Sensor With Display LED 18304SST Absolute Smart Pressure Sensor With Display LED 20304SST Absolute Smart Pressure Sensor With Display LED 22304SST Absolute Smart Pressure Sensor With Display LED 24


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
