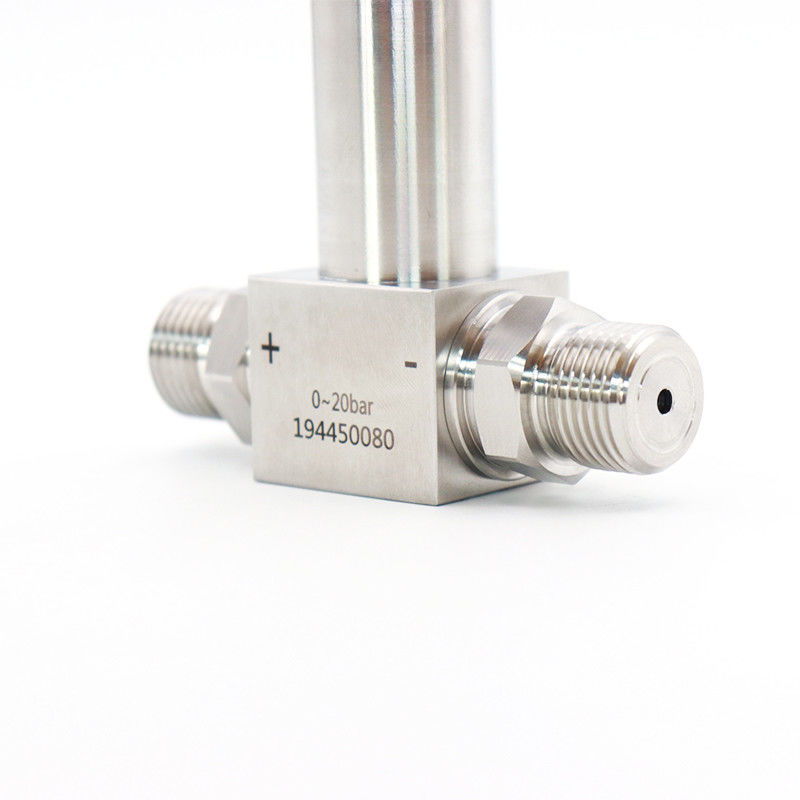

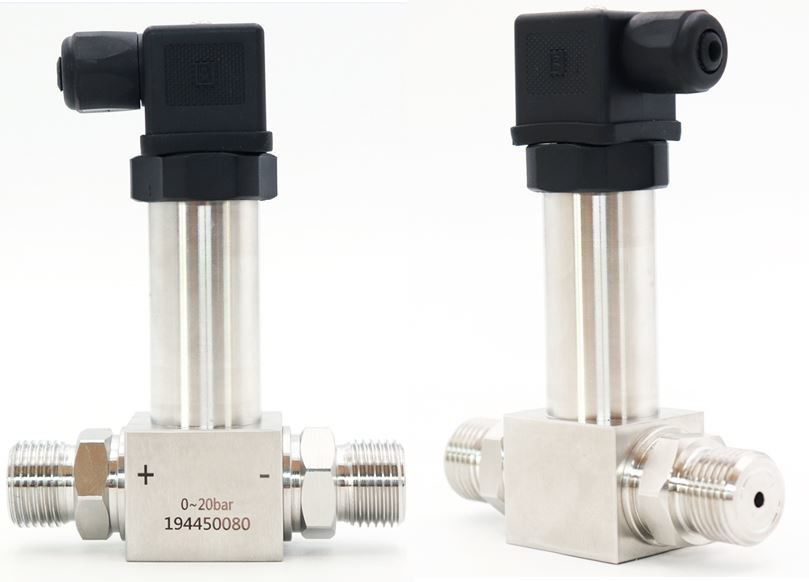

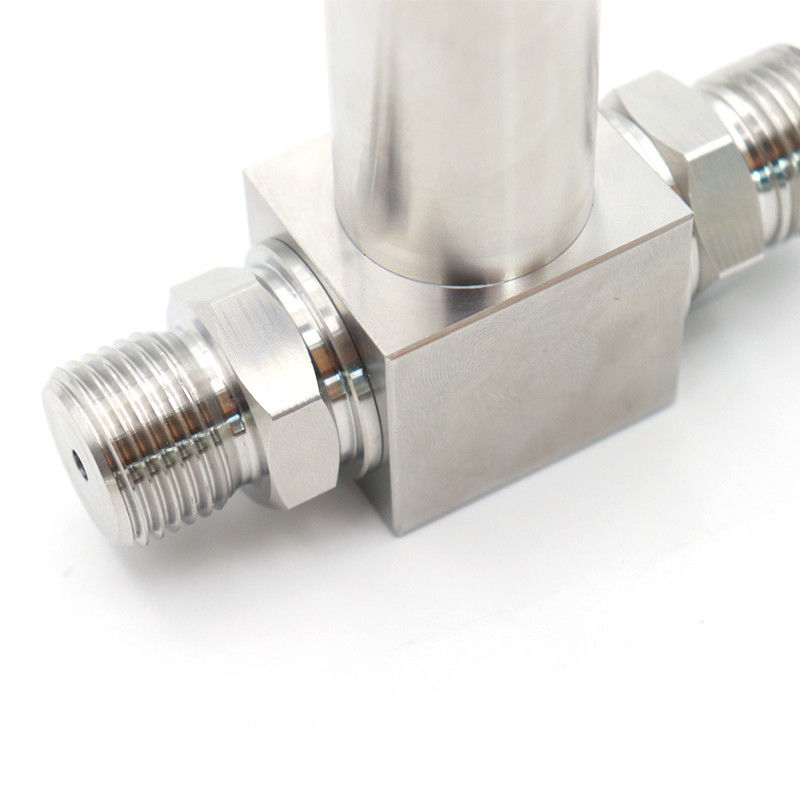

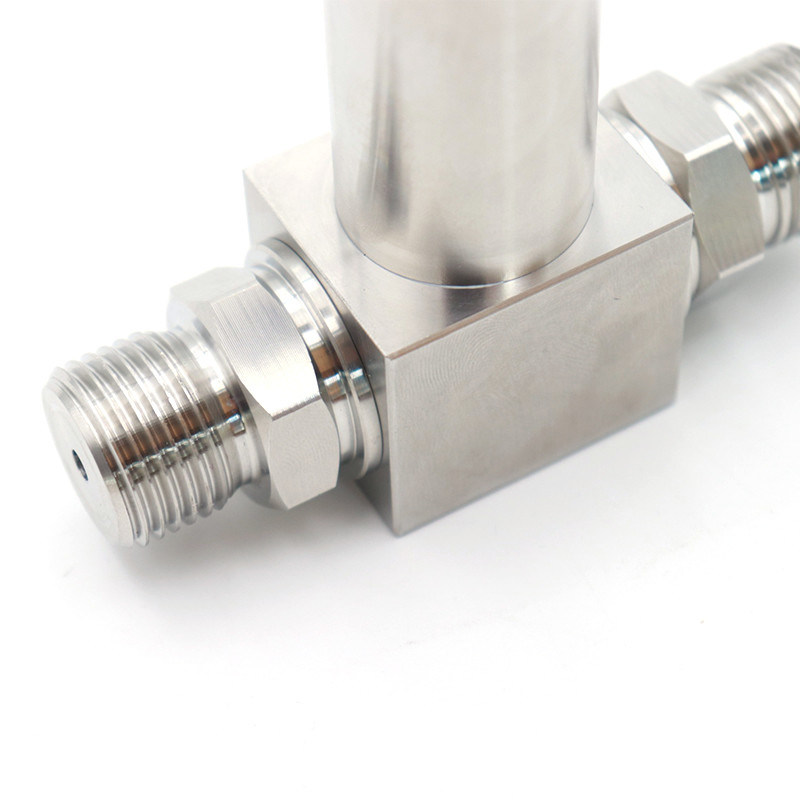

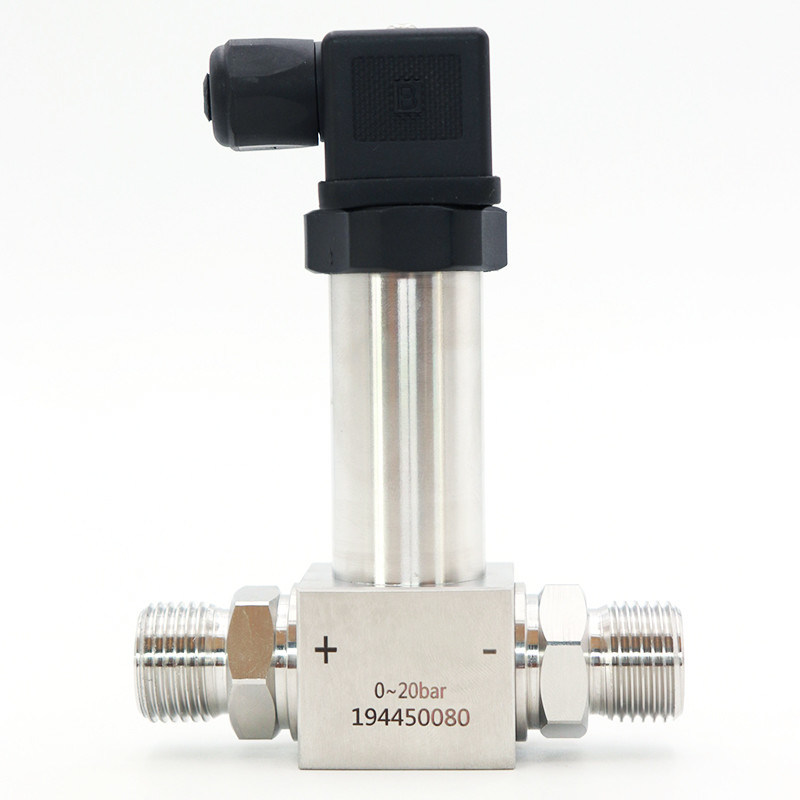

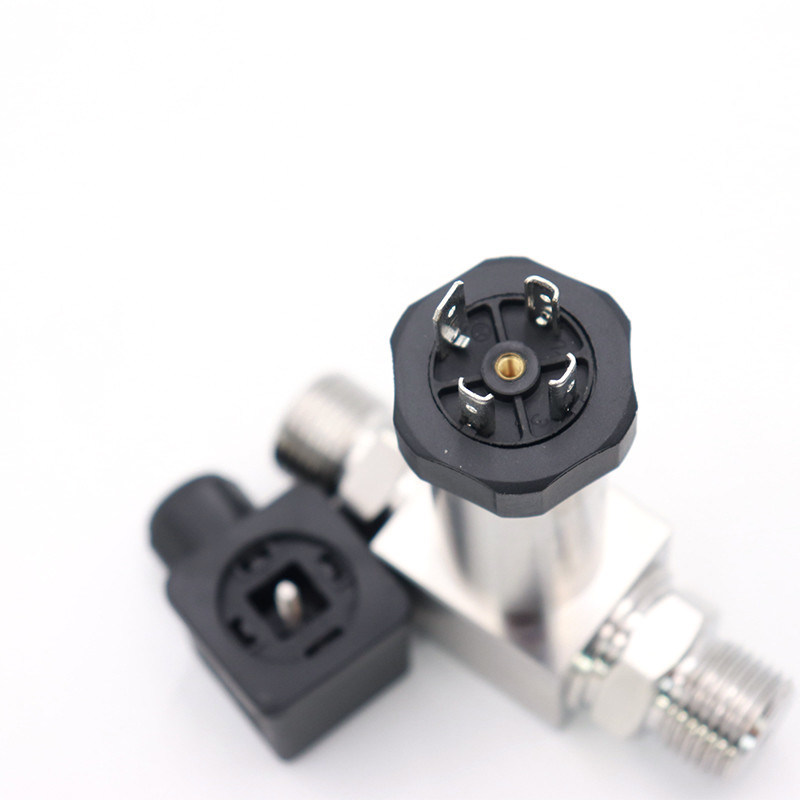

OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters

OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters

OEM Differential Pressure Transmitter

Gas Steam Liquid Differential Pressure Transmitter

IP67 Gas Steam Liquid Flow Meters

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK805-S

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Type:
Gauge,negative,absolute
Power Supply:
12-32V, 12-30Vdc
Output Singal:
4~20mA, 1-5V, 0.5-4.V, I2C
Accuracy:
0.25%FS 0.5%FS
Protection Class:
IP65, IP67
Working Temperature:
-20....150℃
Application:
Brewery, Pharmacy, Alchohol, Beer, Beverages, Drinks
Pressure Range::
-100KPa~60MPa
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Medium:
Water, Beer, Milk, Air, Hydraulic
Port:
Shanghai
Highlight:

OEM Differential Pressure Transmitter

,

Gas Steam Liquid Differential Pressure Transmitter

,

IP67 Gas Steam Liquid Flow Meters

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$80.00 - $150.00/Pieces
Packaging Details
Each piece into individual carton with foam protection
Or as per client's request
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000 Piece/Pieces per Month Differential Pressure Transmitter
Product Description
IP67 4-20mA Differential Pressure Transmitter For Liquid Gas Steam
Specifications
The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.


OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 0
Differential Pressure Transmitter
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2 ...100kPa,  0-0.2 ...1000kpa, 60 MPa
Output signals
Typical output 4...20mA, 0.5...4.5VDC,  For option: 1-5V, 0-5V, 0-10V DC
Accuracy
0.25%, 0.5%, 1.0%FS
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304SS, 316L
Mechanical connection
Clamp,Flush and Flange

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃



  Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media

 OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 2OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 4OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 6OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 8






Hot Product



OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 10





Company Information

 OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 12



Exhibition

 OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 14







Certification

 OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 16




Packaging & Shipping

 OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 18OEM Differential Pressure Transmitter , IP67 Gas Steam Liquid Flow Meters 20

FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
