Place of Origin:
Anhui, China
Brand Name:
WNK
Model Number:
WNK811-1
|

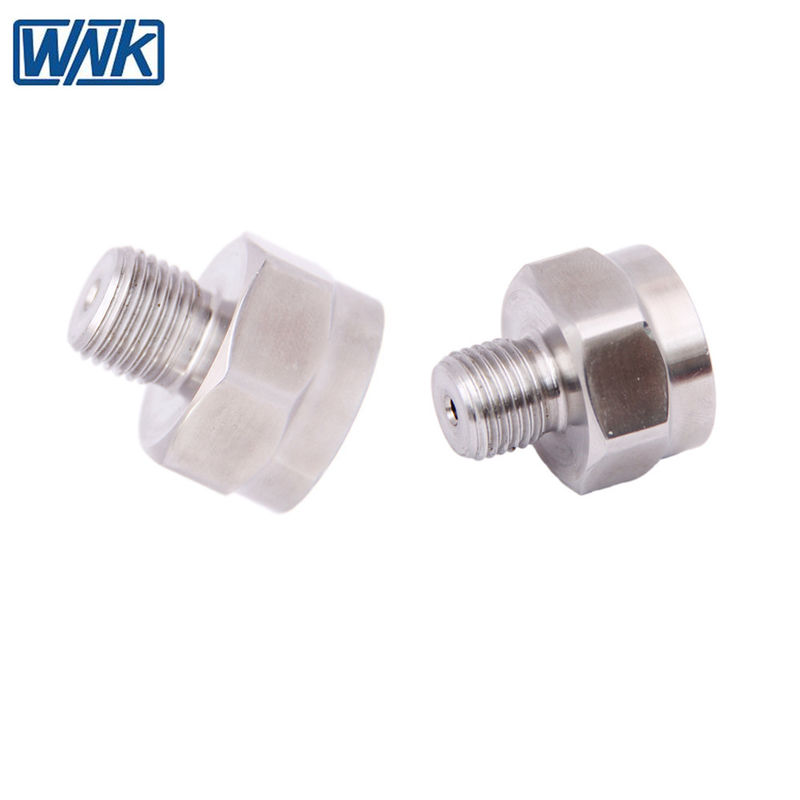

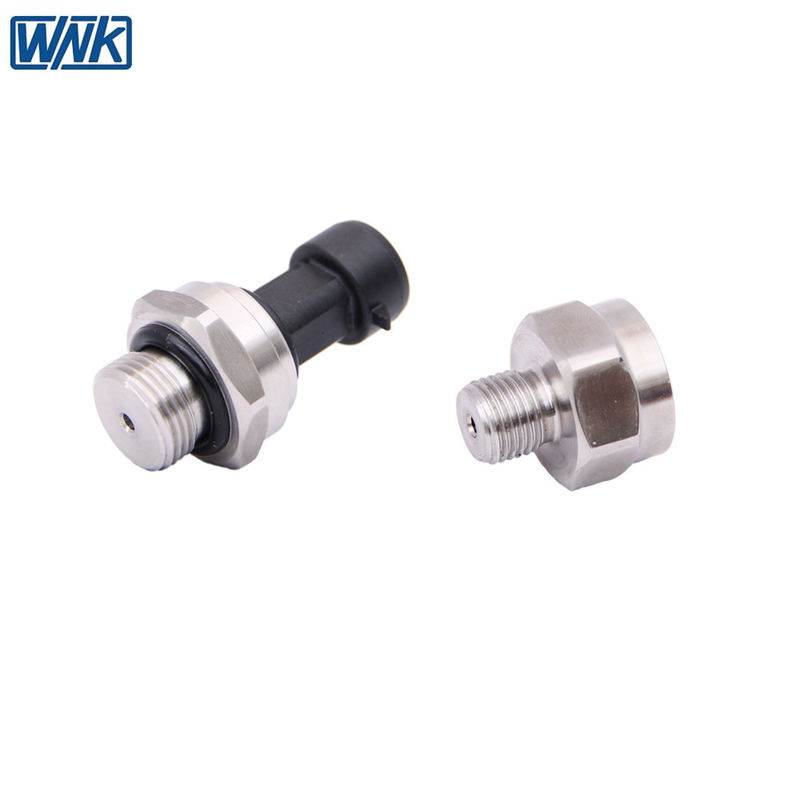

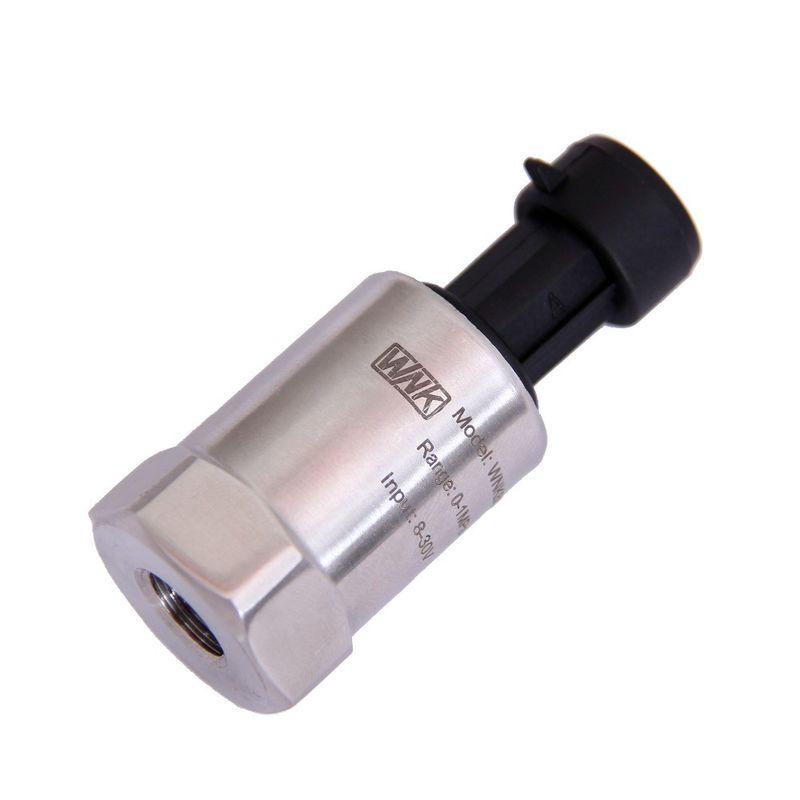

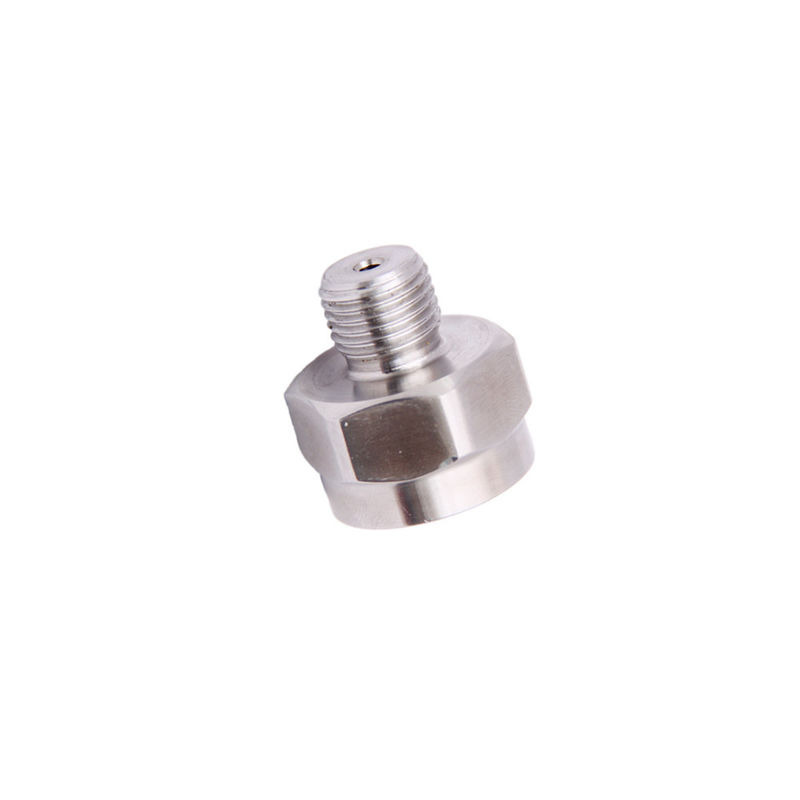

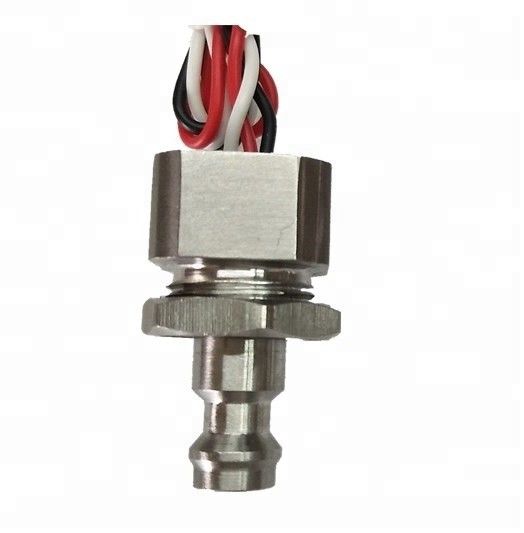

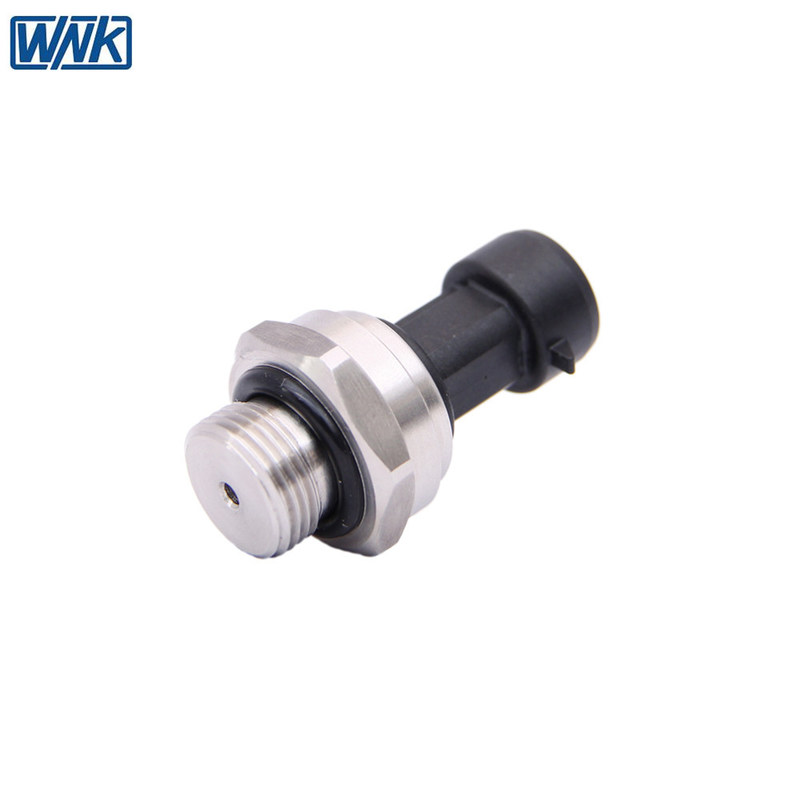

WNK811 diffused silicon oil filled pressure sensor with customization
|
|
|
|
Applicable media
|
Liquid, Gas
|
|
|
|
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
|
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
|
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
|
Compensation temperature
|
-20~85ºC
|
|
|
Ambient temperature
|
-40~125ºC
|
|
|
Working temperature
|
-40~125ºC
|
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
|
power(electrical) connect
|
Customization Connector, Cable outlet
|
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
|
Protection
|
IP65
|
|
1. 100% of all products we do temperature compensation and aging test before shipment.
2. Our products are all calibrated and shipped with certificate.
