WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof

WNK Miniature Air Compressor Pressure Sensor

ExidIICT6 Air Compressor Pressure Sensor

Ex Proof Miniature Pressure Sensors

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK80MA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4~20mA, 1-5V,
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
-100KPa~6MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
10.5-55V DC, 10.5-30V DC
Keywords:
Air Compressor Pressure Sensor
Port:
Shanghai, Ningbo, Shenzhen Etc
Highlight:

WNK Miniature Air Compressor Pressure Sensor

,

ExidIICT6 Air Compressor Pressure Sensor

,

Ex Proof Miniature Pressure Sensors

Payment & Shipping Terms
Minimum Order Quantity
100 Pieces
Price
$15.00/Pieces 100-499 Pieces
Packaging Details
each five pcs in one paper box
100 pcs in one carton
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
10000 Piece/Pieces per Month
Product Description



Customized Miniature 0.5-4.5V 4-20mA I2C  Pressure Sensor For Air Compressor


 WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-60bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parker joint, customization
Mechanical connection
G1/4, 1/8NPT,M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

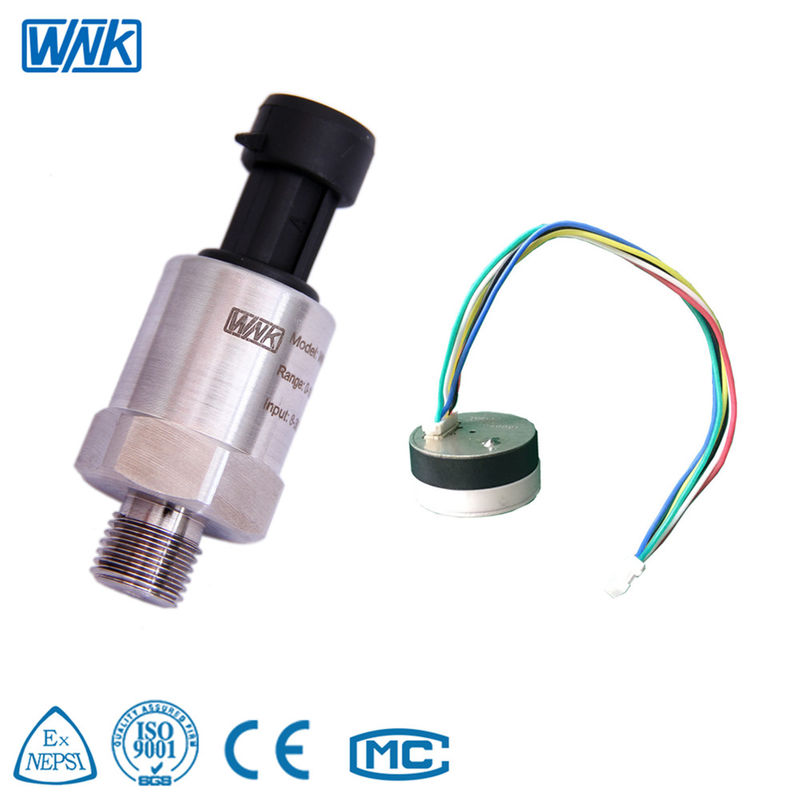

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 0

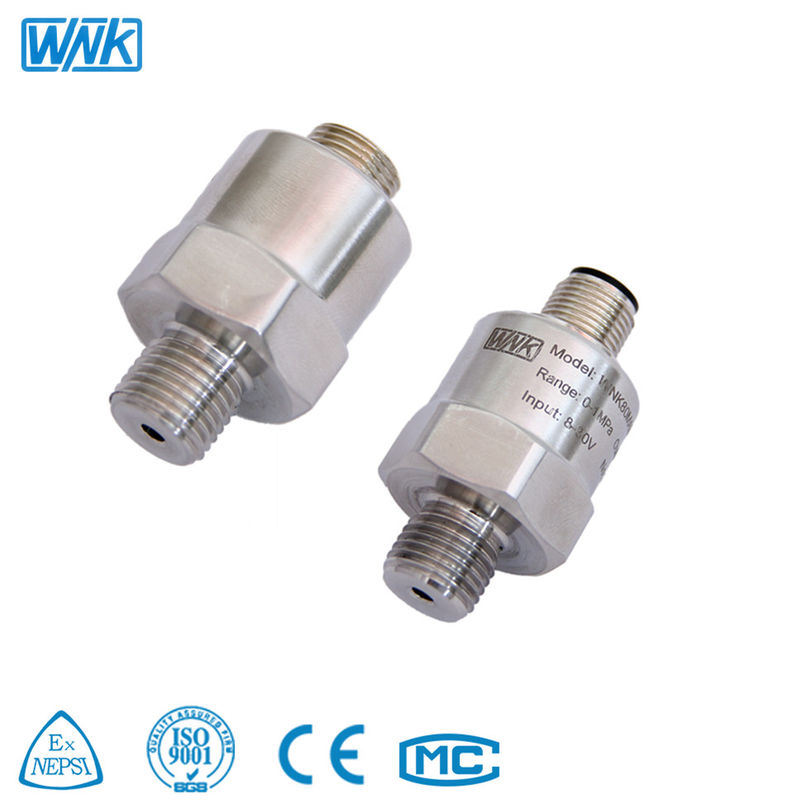

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 2
Product Show

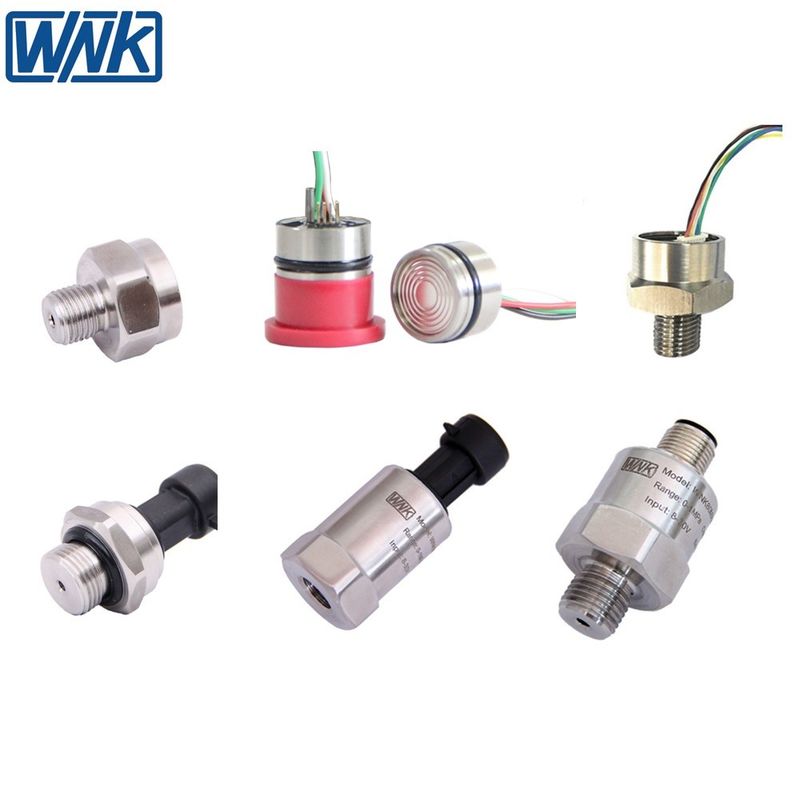

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 4

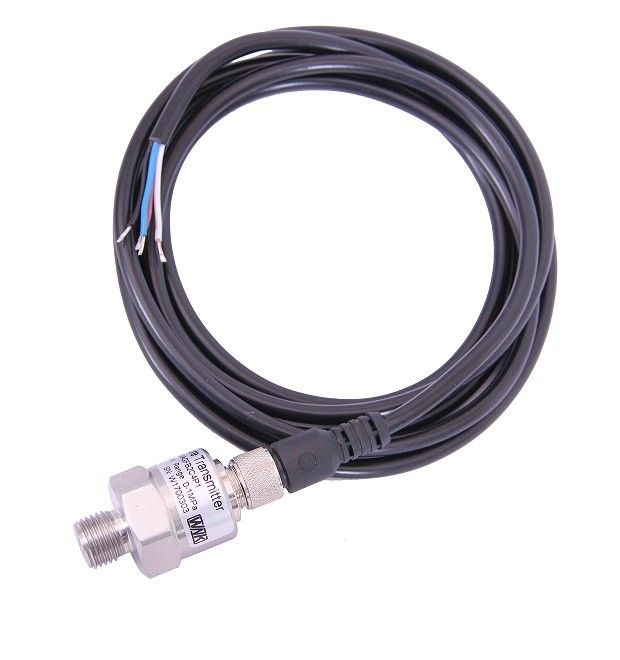

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 6

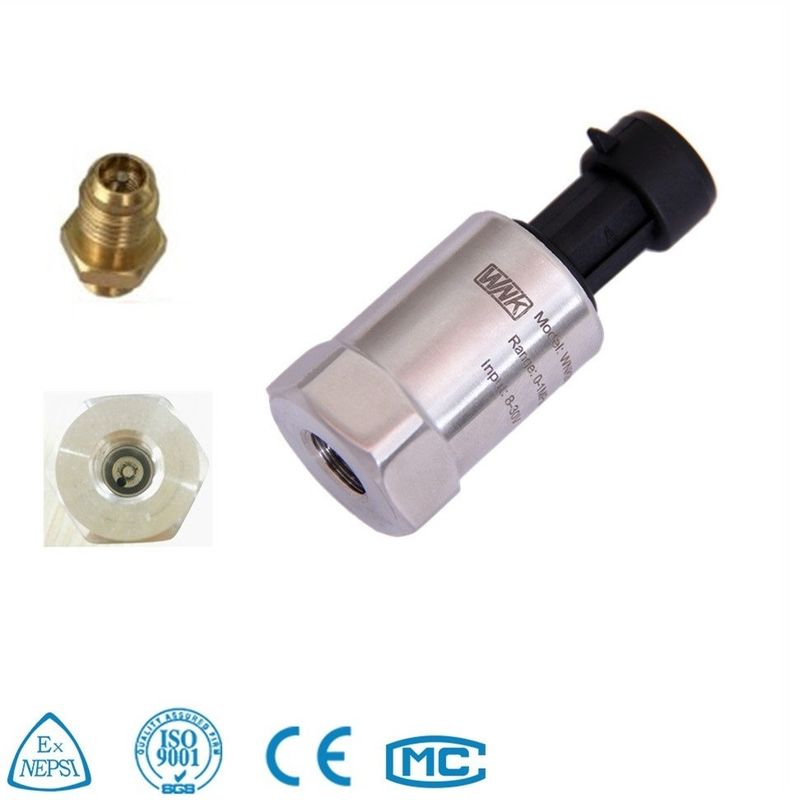

WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 8
WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 10
WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 12
WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 14
WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 16
Hot Product



WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 18





Company Information





WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 20



Exhibition

 WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 22







Certification

 WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 24



WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 26







WNK Miniature Air Compressor Pressure Sensor ExidIICT6 Ex proof 28




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
