Name: Micro 304SST Vacuum Pressure Transmitter Shock Resistance
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK811-1
Price: Negotiable USD
Availability: InStock

Home > products > Electronic Pressure Sensor >

Micro 304SST Vacuum Pressure Transmitter Shock Resistance

304SST Vacuum Pressure Transmitter

Micro Vacuum Pressure Transmitter

304SST pressure transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK811-1

Request A Quote

Micro 304SST Vacuum Pressure Transmitter Shock Resistance

Product Details

Measured Media:

Liquid, Gas And Steam

Output Signals:

4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C

Accuracy:

0.2%F.S, 0.5%F.S

Pressure Range:

-100kPa~0, 0-10kPa, 100kPa, 1MPa, 5MPa, 10MPa, 20MKPa, 50MPa

Protection Class:

IP65

Housing Material:

304SST

Power Supply:

24VDC/12VDC/5VDC/3.3V

Electrical Connection:

Cable Outlet, Connector

Port:

Shanghai Port

Highlight:

304SST Vacuum Pressure Transmitter

Micro Vacuum Pressure Transmitter

304SST pressure transmitter

Payment & Shipping Terms

Price

$10.00 - $35.00/Pieces

Packaging Details

each product in one inner paper box with protection

Supply Ability

2000 Set/Sets per Week

3.3V Piezoresistive Silicon Pressure Sensor Low Current 316L stainless steel

Get Best Price

Video

4-20mA Ceramic Capacitive Pressure Sensor With High Accuracy 0.5%

Get Best Price

Video

WNK Ceramic Capacitive Electronic Pressure Sensor For Corrosive Environment

Get Best Price

Video

Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control

Get Best Price

86-551-65369655

Contact Now

Product Description

Micro -1bar absolute vacuum pressure transducer 4-20mA I2C output available

miniature piezoresistive pressure transducer, engine oil pressure transmitter

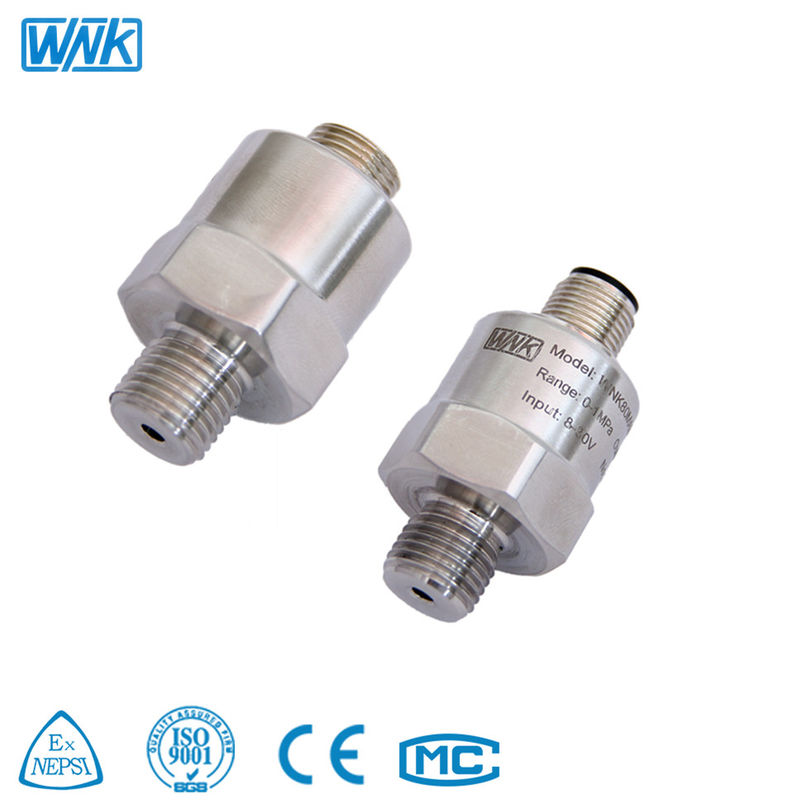

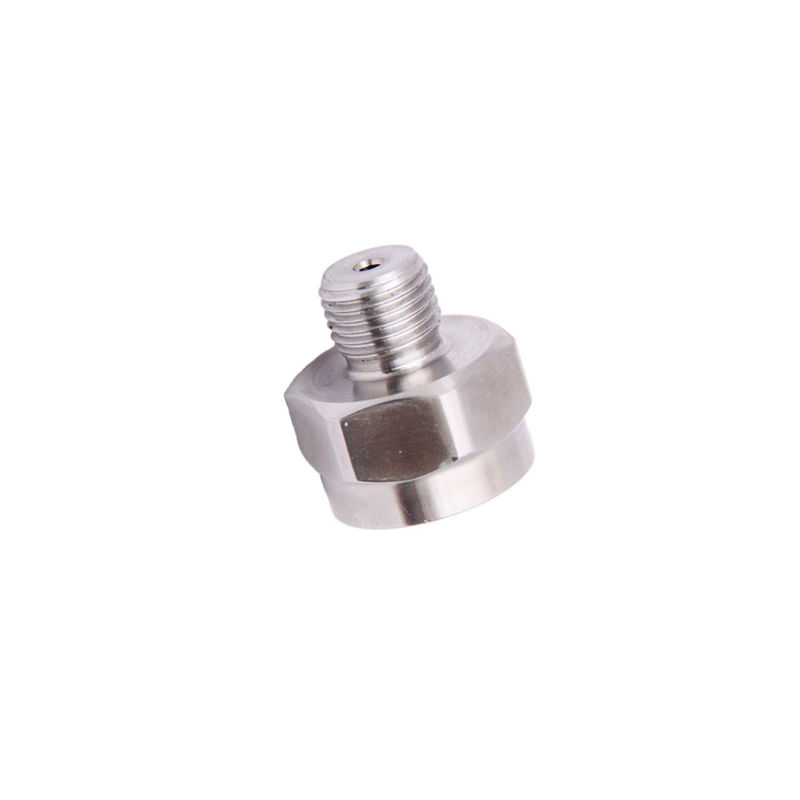

WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.

With high output and wide ranges, WNK811 also provide with wide range customization.

Product Spec

WNK811 diffused silicon oil filled pressure sensor with customization
Applicable media	Liquid, Gas
Pressure range	-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Customization Connector, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
