IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter

IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter

Gauge Electronic Water Pressure Sensor

IP65 Electronic Water Pressure Sensor

4 20MA Liquid Pressure Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK80MA

Contact Us
Request A Quote
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter
Product Details
Warranty:
1 Year
Customized Support:
OEM, ODM
Pressure Range:
0.5-15Mpa
Comprehensive Accuracy:
0.5, 1.0
Output:
4~20mA;0-10V; 1~5V
Protection Class:
IP65
Housing Material:
SS304
Approvals:
Ex-proof, ISO9001-2015
Pressure Type:
Gauge, Sealing, Negative Pressure
OEM Service:
OEM, ODM, Customization Available
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry
Product Name:
High Quality Low Cost 4-20MA Gauge Water Pressure Sensor For Liquid
Port:
Shanghai
Highlight:

Gauge Electronic Water Pressure Sensor

,

IP65 Electronic Water Pressure Sensor

,

4 20MA Liquid Pressure Transmitter

Payment & Shipping Terms
Price
$15.00/Pieces >=1 Pieces
Packaging Details
paper carton or as per clients' requirement
Supply Ability
5000 Piece/Pieces per Month Water pressure sensor
RELATED PRODUCTS
Good price 1%FS Brass Pressure Sensor For Water Parkard Electrical Connection online Video

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

Get Best Price
Good price 0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application online Video

0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application

Get Best Price
Good price Anti Corrosive Underwater Pressure Sensor Brass Cable outlet online Video

Anti Corrosive Underwater Pressure Sensor Brass Cable outlet

Get Best Price
Good price 0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas online Video

0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

High Quality Low Cost 4-20MA Gauge Water Pressure Sensor For Liquid

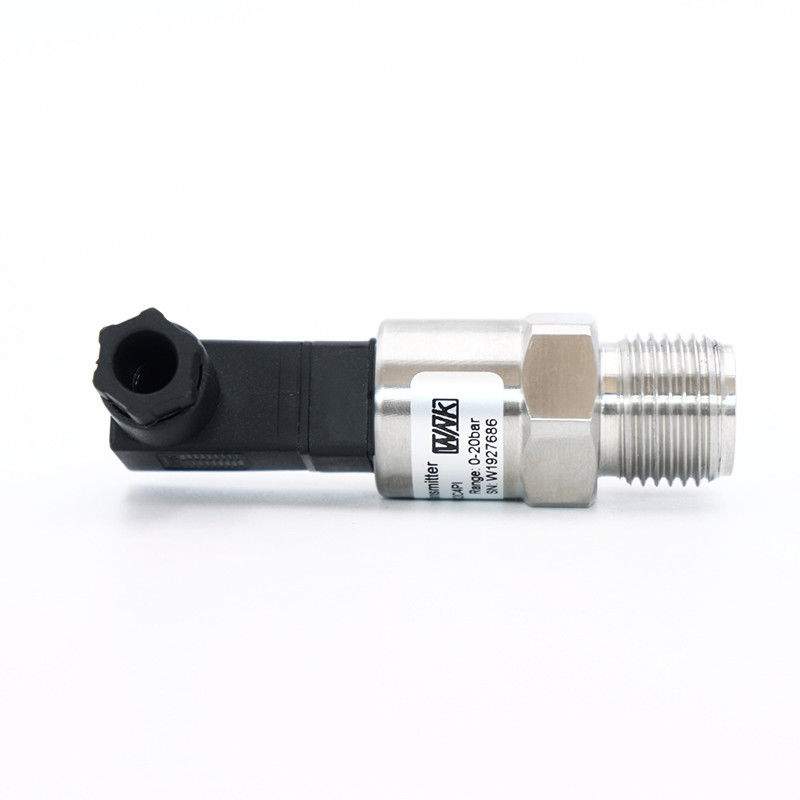

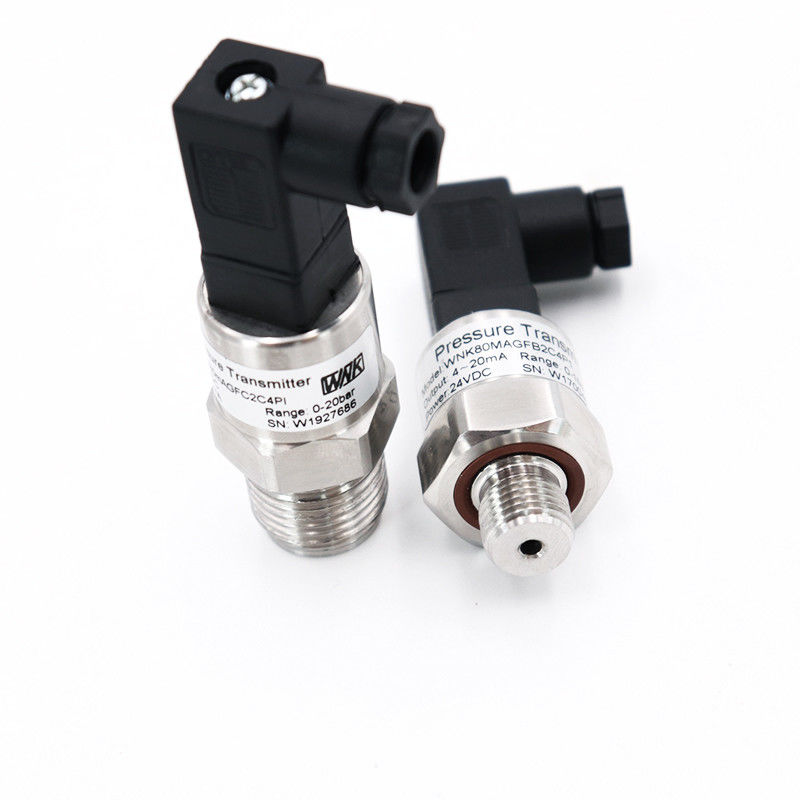

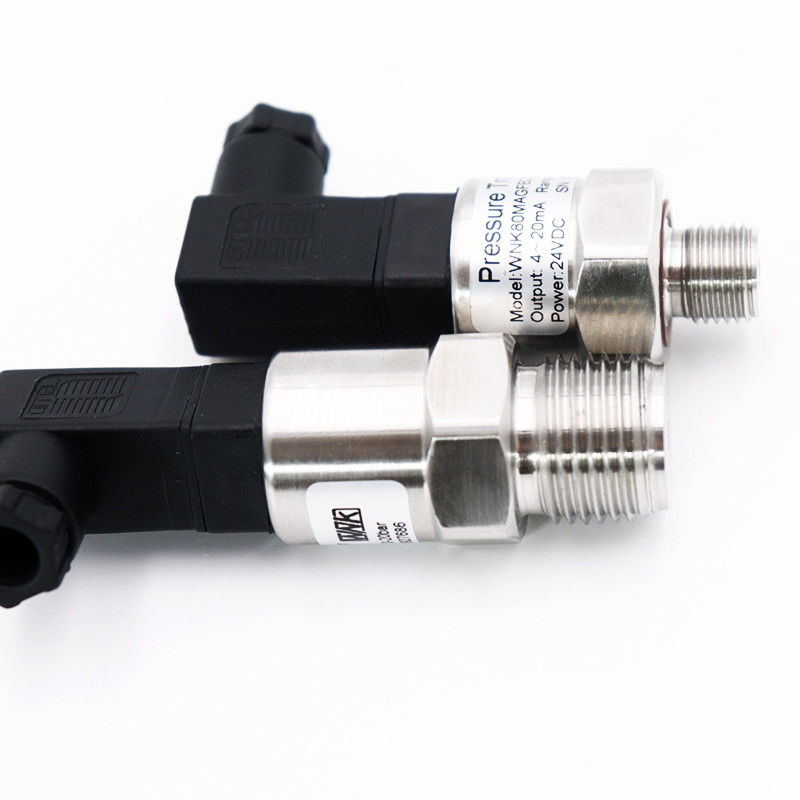

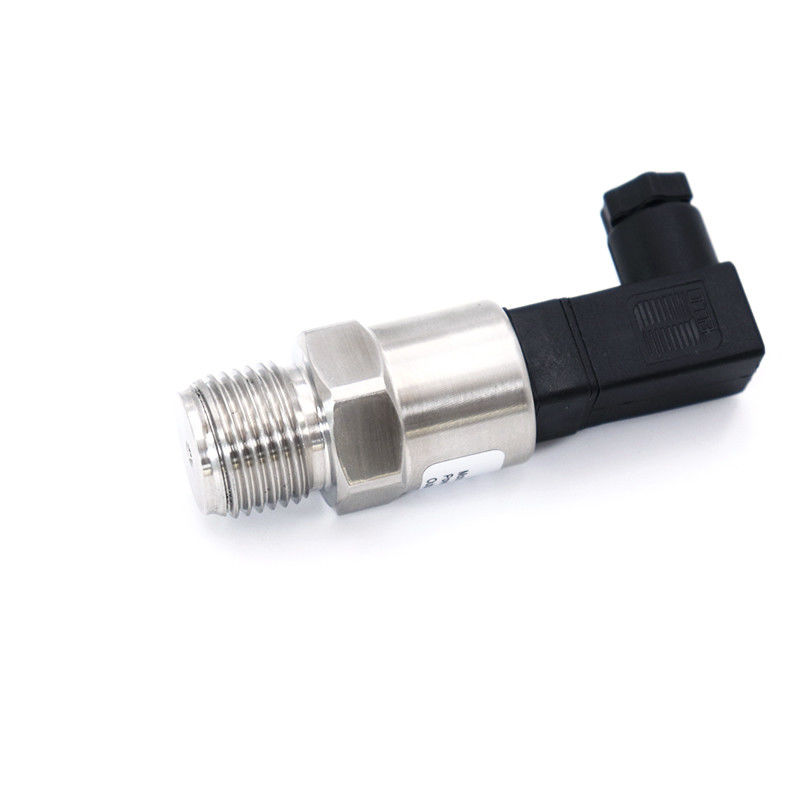

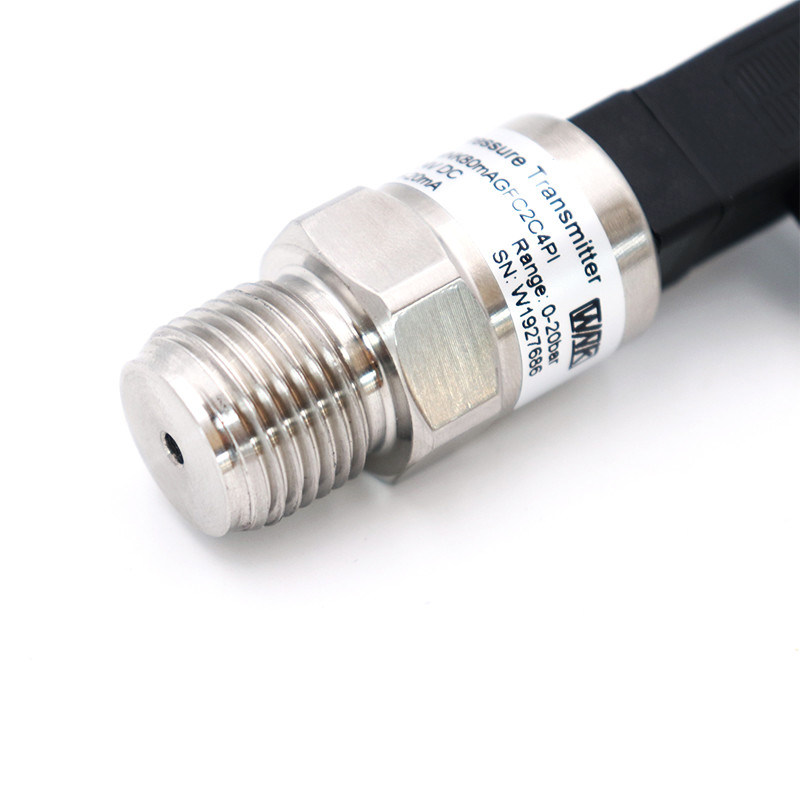

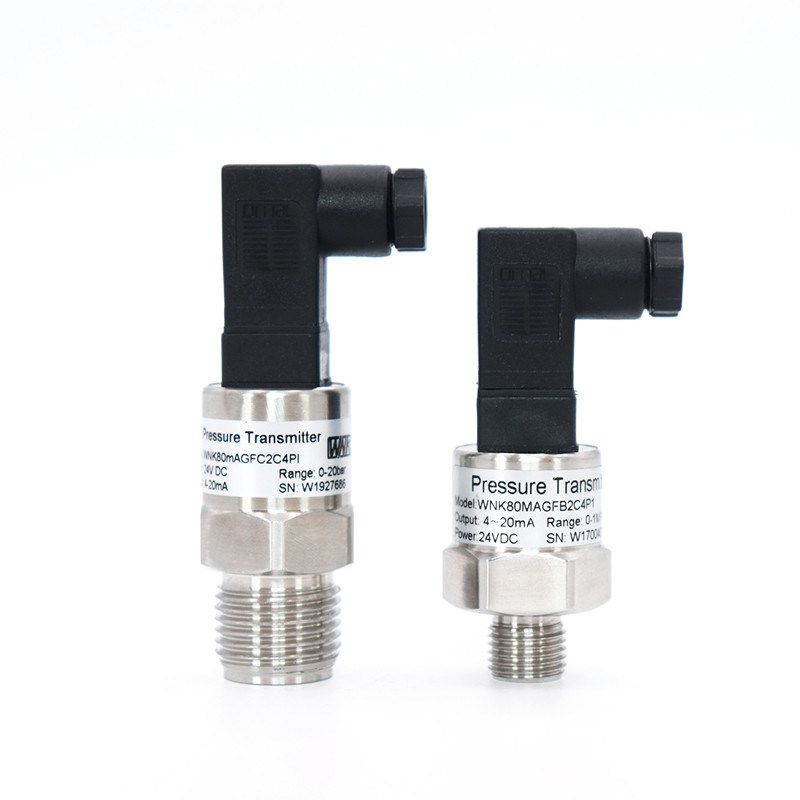

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear,shock resistance and vibration resistance.Its anti-overload capacity is over 10 times of the range,completely solved poor overload in samll range of normal sensors,its most outstanding characteristic is the positive and negative gauge pressure function.As high output and wide range of its core ceramic capacitive sensor,WNK80MA is especially suitable for harsh industrial environment pressure measurement.
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 0
Pressure Range
0-70Mpa
Pressure Type
Gauge,absolute,negative,vacuum
Overpressure
200%FS
Output
4-20mA,05-4.5v,I2C,SPI
Accuracy
0.5%FS,1%FS
Compensation Temp
-20-80℃
Operation Temp
-40-125℃
Storage Temp
-40-125℃
Process Connector
G1/4,1/4NPT,1/2NPT,1/8NPT
Ingress Protection
IP65,IP68
Housing Material
SS304,SS316L
Certificate
CE
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 2
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 4
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 6
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 8
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 10
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 12
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 14

  • Application

-Pressure measurement of gas,vapor or liquid in various areas
-Liquid level,volume or amss measurement
-Integrated in variety of user-defined solutions
-Smart drinking water and nature gas controlling system,smart fire controlling,automotive electronics controlling,air compressor,HVAC,pump,valve and etc.
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 16
Parameters
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 19
Connection
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 21
Related Products

Packing&Shipping
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 23
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 25
Company Introduction
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 27
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 29
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 31
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 33
Certifications
IP65 Gauge Electronic Water Pressure Sensor , 4-20MA Liquid Pressure Transmitter 35
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
