SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals

SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals

SPI I2C smart water pressure sensor

ISO9001 2015 smart water pressure sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80MA

Contact Us
Request A Quote
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Range:
0.5-15Mpa
Comprehensive Accuracy:
0.5, 1.0
Output:
4~20mA; 0-10V; 1~5V
Protection Class:
IP65
Housing Material:
Ss316
Approvals:
Ex-proof, ISO9001-2015
Pressure Type:
Gauge, Sealing, Negative Pressure
OEM Service:
OEM, ODM, Customization Available
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry
Product Name:
SPI I2C Output Pressure Sensor Pressure Transducer For Water Pump
Port:
Shanghai
Highlight:

SPI I2C smart water pressure sensor

,

ISO9001 2015 smart water pressure sensor

Payment & Shipping Terms
Price
$12.00 - $19.00/Pieces
Packaging Details
paper carton or as per clients' requirement
Supply Ability
2000 Piece/Pieces per Month pressure sensor
RELATED PRODUCTS
Good price 1%FS Brass Pressure Sensor For Water Parkard Electrical Connection online Video

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

Get Best Price
Good price 0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application online Video

0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application

Get Best Price
Good price Anti Corrosive Underwater Pressure Sensor Brass Cable outlet online Video

Anti Corrosive Underwater Pressure Sensor Brass Cable outlet

Get Best Price
Good price 0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas online Video

0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

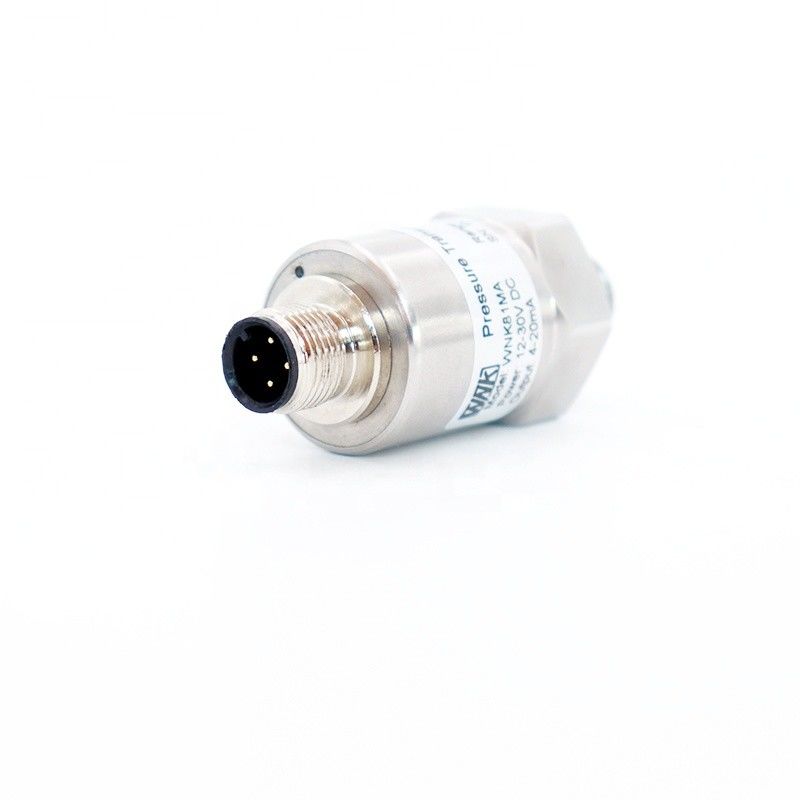

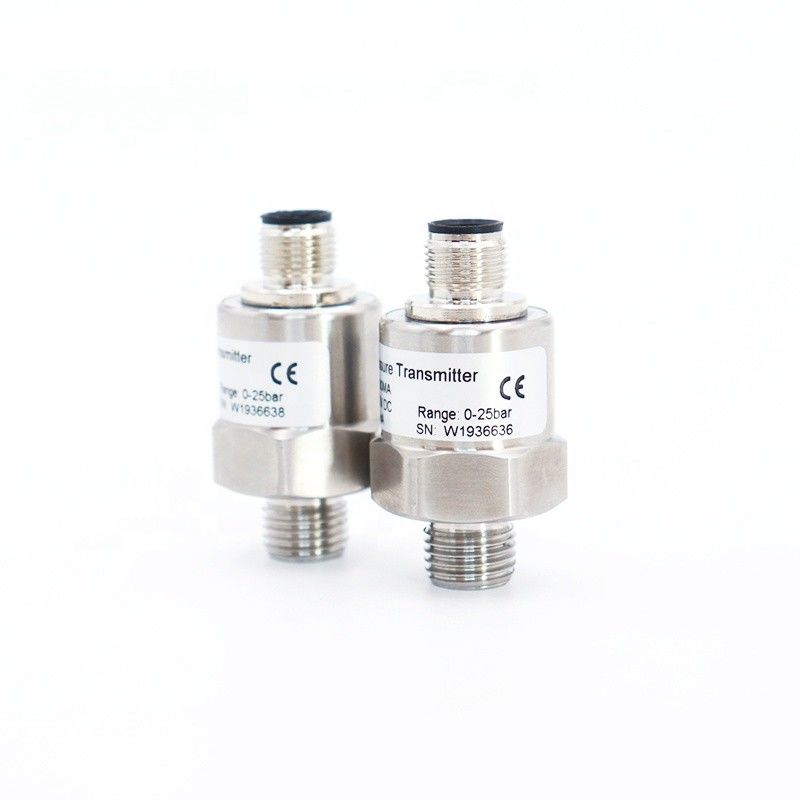

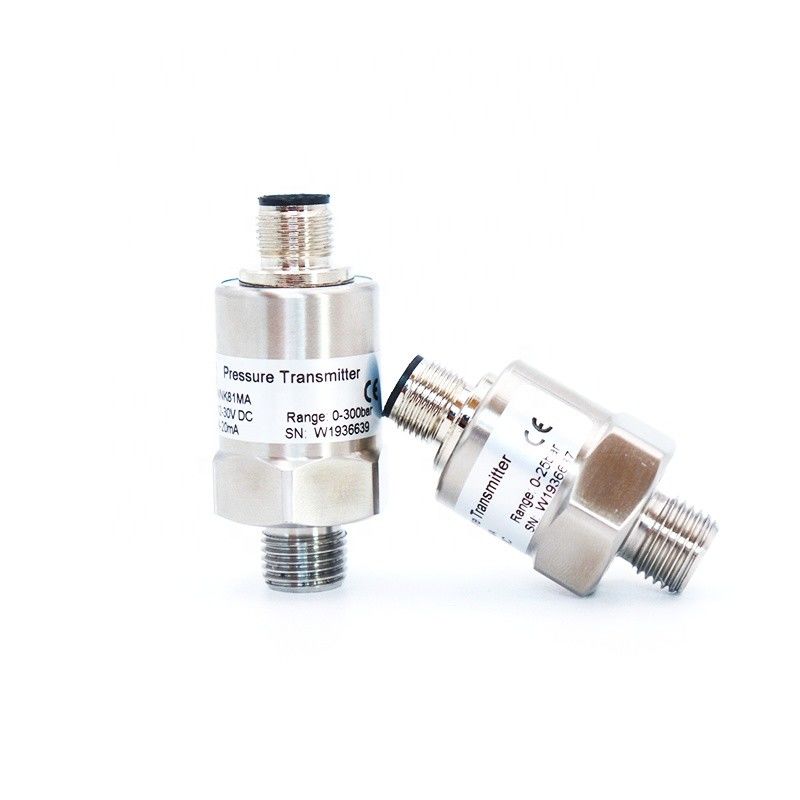

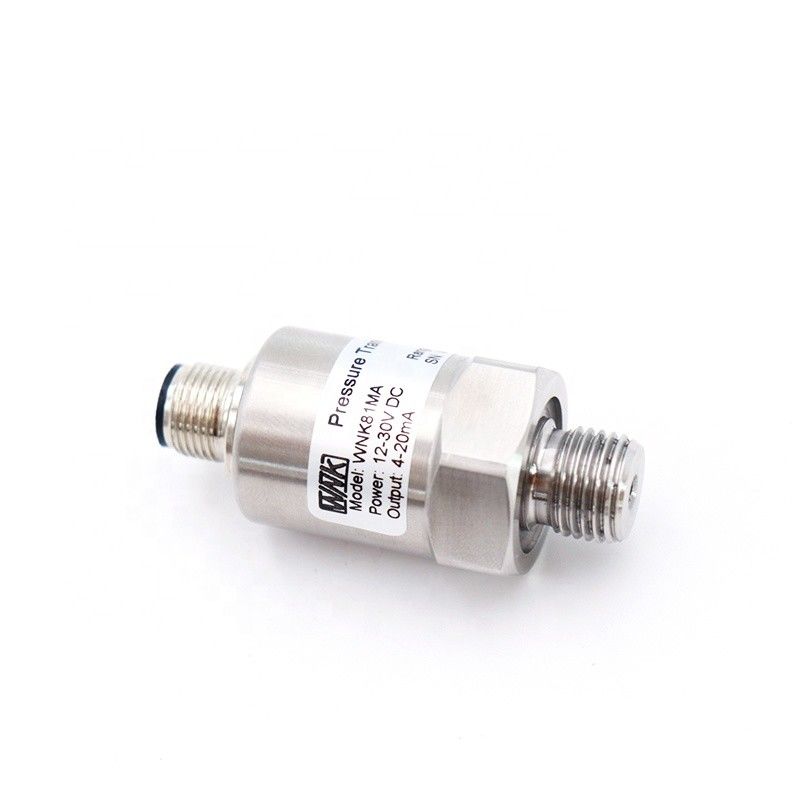

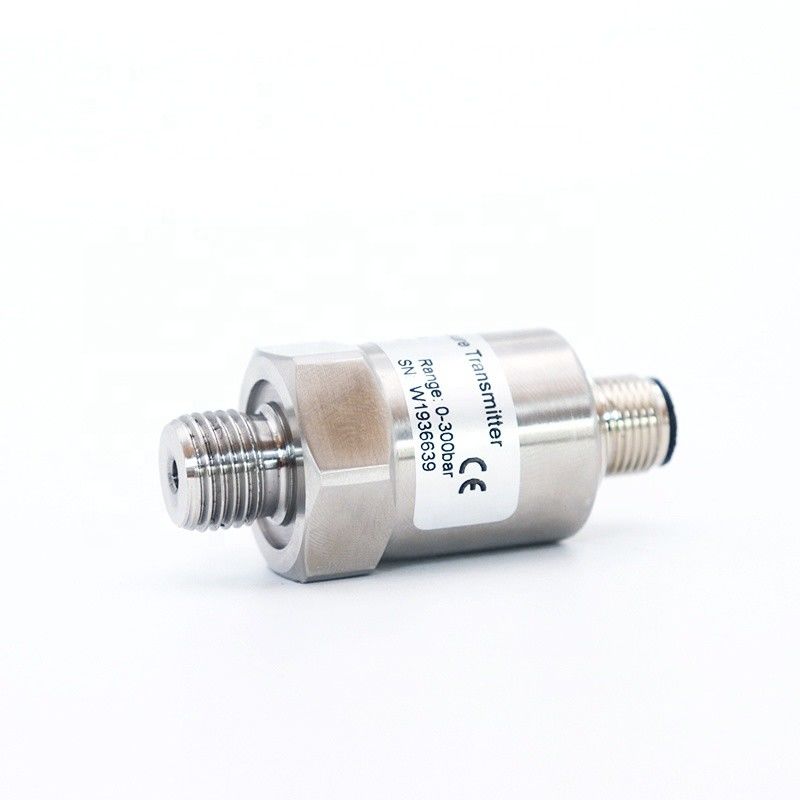

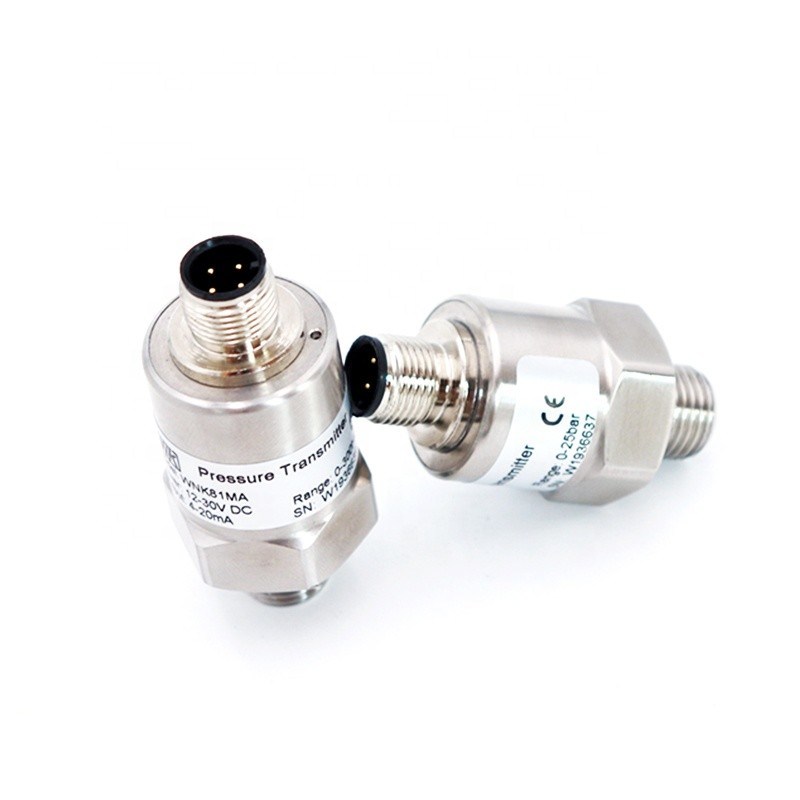

SPI I2C Output Smart Pressure Sensor Transducer For Water Pump
WNK80mA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With high output and wide range.
WNK80mA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Applicable media
Liquid, gas and steam
Pressure range
0-15MPa
Cell
Ceramic capacitive pressure sensor
Pressure measurment
Gauge Pressure, absolute pressure and sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply
24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)
1%F.S.
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
Electrical connection
Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection
G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material
304 stainless steel(316SS for inner core)
Protection
IP65
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 0
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 2
Connection
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 4

Applications

- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
-Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 6
Our Company
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 8
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 10
Packing&Shipping
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 12
SPI I2C Smart Water Pressure Sensor ISO9001 2015 Approvals 14
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
