304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline

304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline

316L 5 Psi Pressure Sensor

12VDC 5 Psi Pressure Sensor

Water Supply Pipeline 12v pressure sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK81mA

Contact Us
Request A Quote
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Accuracy:
0.5% , 1.0% FS
Output Signal:
4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Other
Operating Temperature:
-40~85 ℃
Pressure Range:
-100Kpa ~ 60MPa
Power Supply:
24VDC 12VDC 5VDC 8-30VDC
Material:
304 SS, 316L
Media:
Water, Liquid, Gas, Steam, Oil, Lubricant
IP Rating:
IP65, IP67
Type:
Gauge, Absolute, Seal, Vacuum
Product Name:
0.5-4.5V 4-20mA Water Air Oil Pressure Sensor
Port:
Shanghai/Ningbo/Shenzhen/Guangzhou
Highlight:

316L 5 Psi Pressure Sensor

,

12VDC 5 Psi Pressure Sensor

,

Water Supply Pipeline 12v pressure sensor

Payment & Shipping Terms
Price
$20.00 - $28.00/Pieces
Packaging Details
Each piece into individual carton with foam protection
Or as per client's request;
Diffused Silicon Pressure Sensor Transducer Used In Water Hydraulic Systems
Supply Ability
30000 Piece/Pieces per Month Diffused Silicon Pressure Sensor Transducer
RELATED PRODUCTS
Good price Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal online Video

Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal

Get Best Price
Good price High Accuracy Digital I2c Pressure Sensor 316L Stainless Steel Housing online Video

High Accuracy Digital I2c Pressure Sensor 316L Stainless Steel Housing

Get Best Price
Good price G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air online Video

G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air

Get Best Price
Good price ODM Compact Brass Electronic Air Pressure Sensor With 1 Year Warranty online Video

ODM Compact Brass Electronic Air Pressure Sensor With 1 Year Warranty

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

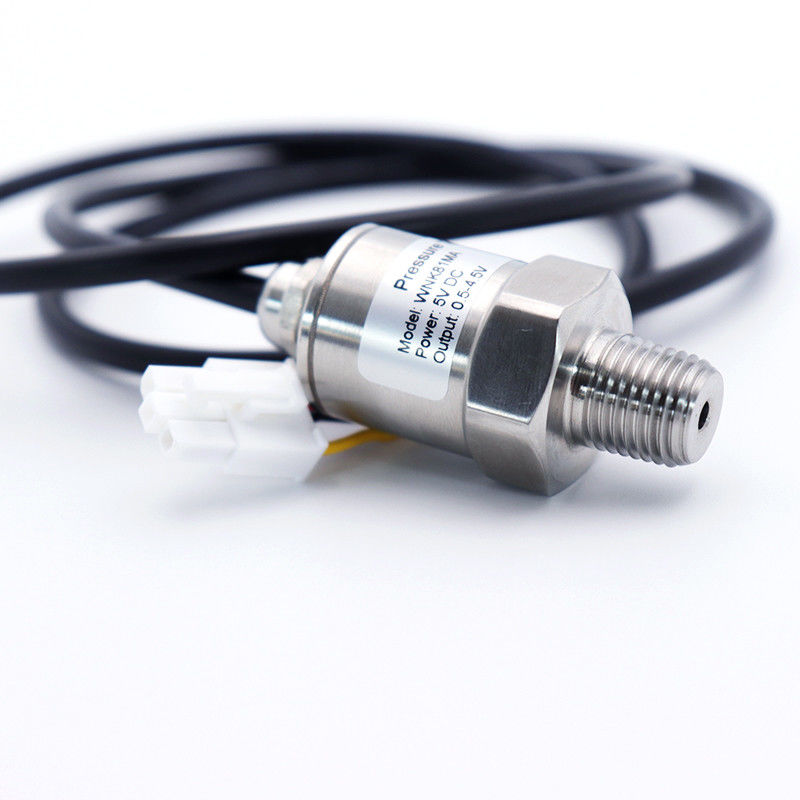

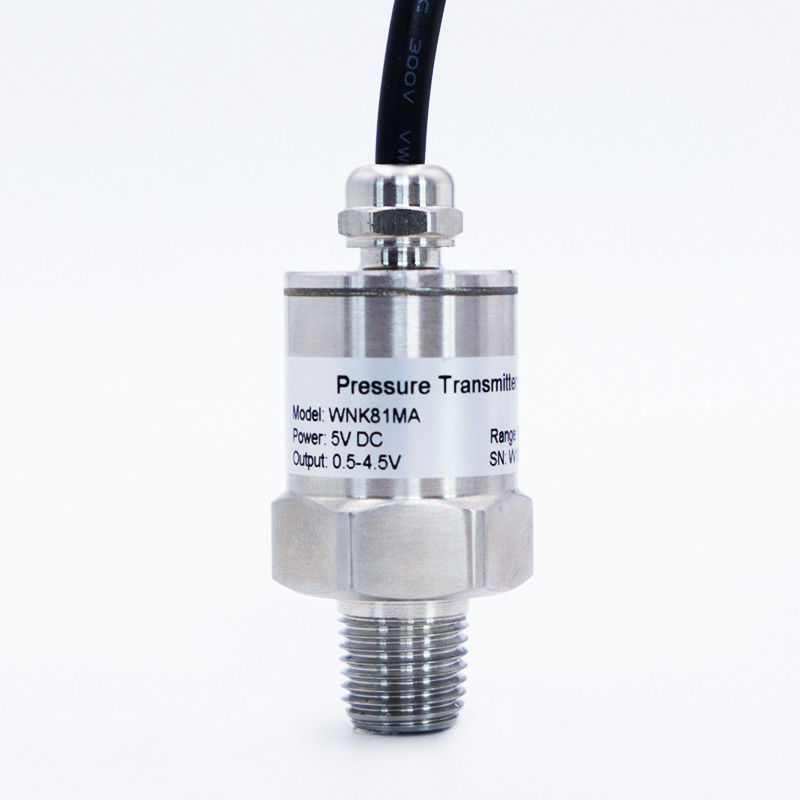

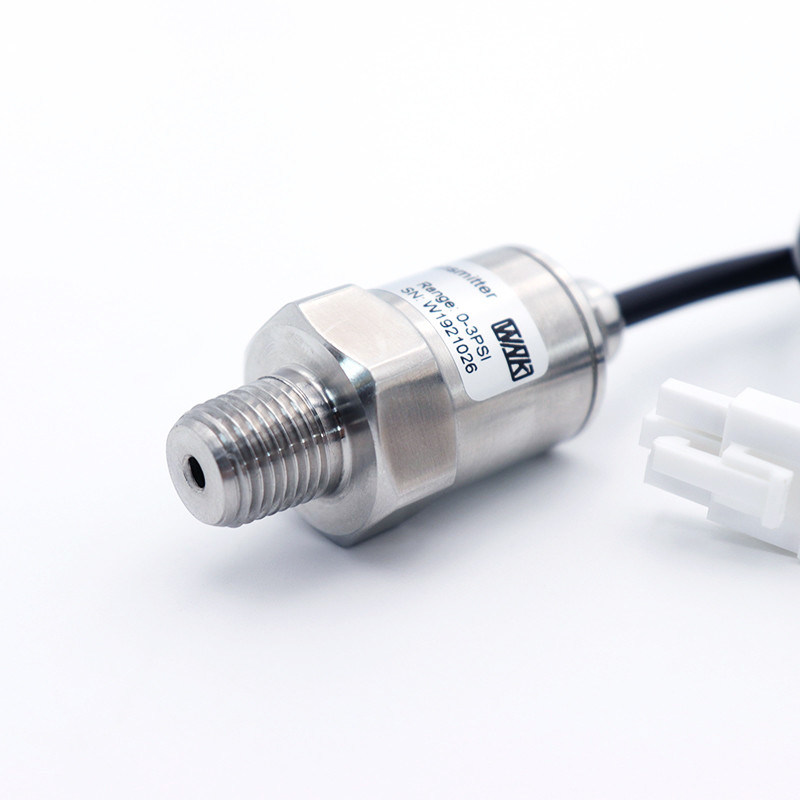

5 psi Water Air Pressure Sensor 0.5-4.5V, 4-20mA

WNK81mA Pressure sensor is mainly used in water supply pipeline, gas supply pipeline measurement, hydraulic system measurement, such as booster cylinder, supercharger, gas-liquid booster cylinder, gas-liquid supercharger, pressure machine, compressor, air conditioning and refrigeration equipment and other fields.

304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 0
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 2
Pressure sensor is mainly used to complete the closed-loop control of force in hydraulic system. When the control spool suddenly moves, in a very short time will form several times the system operating pressure peak pressure. In typical walking machinery and industrial hydraulics, any pressure sensor can be quickly destroyed if such extreme conditions are not considered in the design.It is necessary to use impact resistant pressure sensor. There are two main methods for pressure sensor to achieve impact resistance. One is strain exchange type chip, the other is external coils.In addition, there is another reason that the pressure sensor is also subjected to continuous pressure pulsation from the hydraulic pump.
Product Name
WNK81mA Diffused Silicon Pressure Sensor Transducer For Water Treatment System



Pressure Type
Gauge pressure, sealing pressure, absolute pressure



Measure Range
 0-20kPa~60MPa



Output
0.5-4.5v, 4-20mA, I2C, 0-5V, 0-10V, customize



Accuracy
0.5%FS, 1%FS



Compensation Temperature
-20…70℃



Ingress
IP65/IP67



Working Temperature
-45 to 85℃,



Electrical Connection
Packard, M12*1, Cable outlet, Mini DIN43650, Customize



Process Connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize



Product Features
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 4
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 6
Company Profile
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 8
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 10
304 SS 316L 5 Psi Pressure Sensor 12VDC For Water Supply Pipeline 12
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
