IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline

IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline

IP67 Industrial Pressure Sensor

IP65 Industrial Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK81mA-g

Contact Us
Request A Quote
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline
Product Details
Warranty:
1 YEARS
Customized Support:
OEM, ODM
Accuracy:
0.5% , 1.0% FS
Output Signal:
4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Other
Operating Temperature:
-40~85 ℃
Pressure Range:
-100Kpa ~ 60MPa
Power Supply:
24VDC 12VDC 5VDC 8-30VDC
Material:
304 SS, 316L
Media:
Water, Liquid, Gas, Steam, Oil, Lubricant
IP Rating:
IP65, IP67
Type:
Gauge, Absolute, Seal, Vacuum
Product Name:
IP65 IP67 4-20mA Industrial Hydraulic Pressure Sensor
Port:
Shanghai/Ningbo/Shenzhen/Guangzhou
Highlight:

IP67 Industrial Pressure Sensor

,

IP65 Industrial Pressure Sensor

Payment & Shipping Terms
Price
$20.00 - $28.00/Pieces
Packaging Details
Each piece into individual carton with foam protection
Or as per client's request;
Diffused Silicon Pressure Sensor Transducer Used In Water Hydraulic Systems
Supply Ability
30000 Piece/Pieces per Month Diffused Silicon Pressure Sensor Transducer
RELATED PRODUCTS
Good price 3.3V Piezoresistive Silicon Pressure Sensor Low Current 316L stainless steel online Video

3.3V Piezoresistive Silicon Pressure Sensor Low Current 316L stainless steel

Get Best Price
Good price 4-20mA Ceramic Capacitive Pressure Sensor With High Accuracy 0.5% online Video

4-20mA Ceramic Capacitive Pressure Sensor With High Accuracy 0.5%

Get Best Price
Good price WNK Ceramic Capacitive Electronic Pressure Sensor For Corrosive Environment online Video

WNK Ceramic Capacitive Electronic Pressure Sensor For Corrosive Environment

Get Best Price
Good price Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control online Video

Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

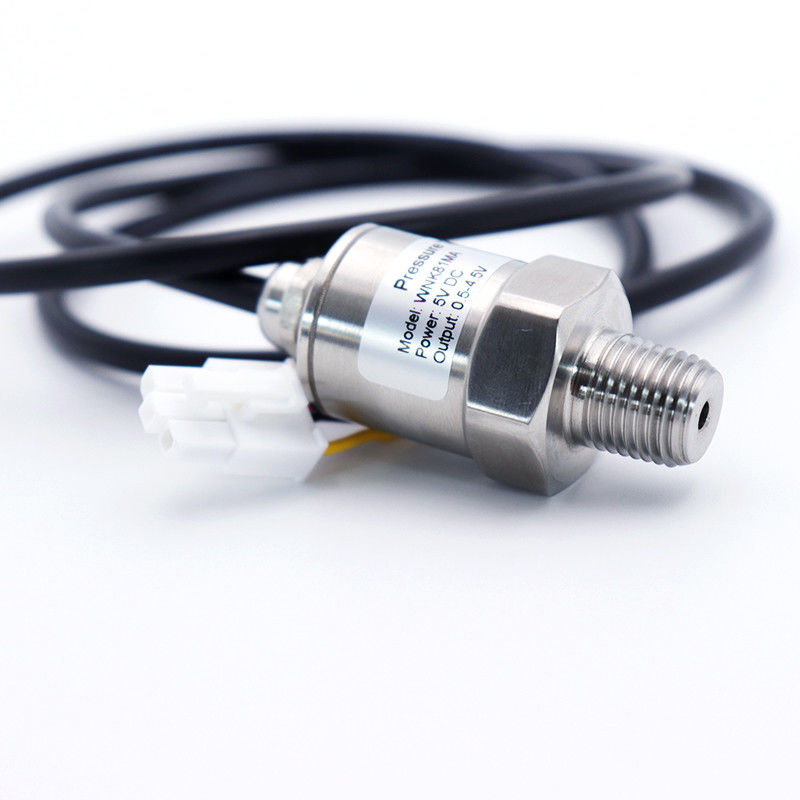

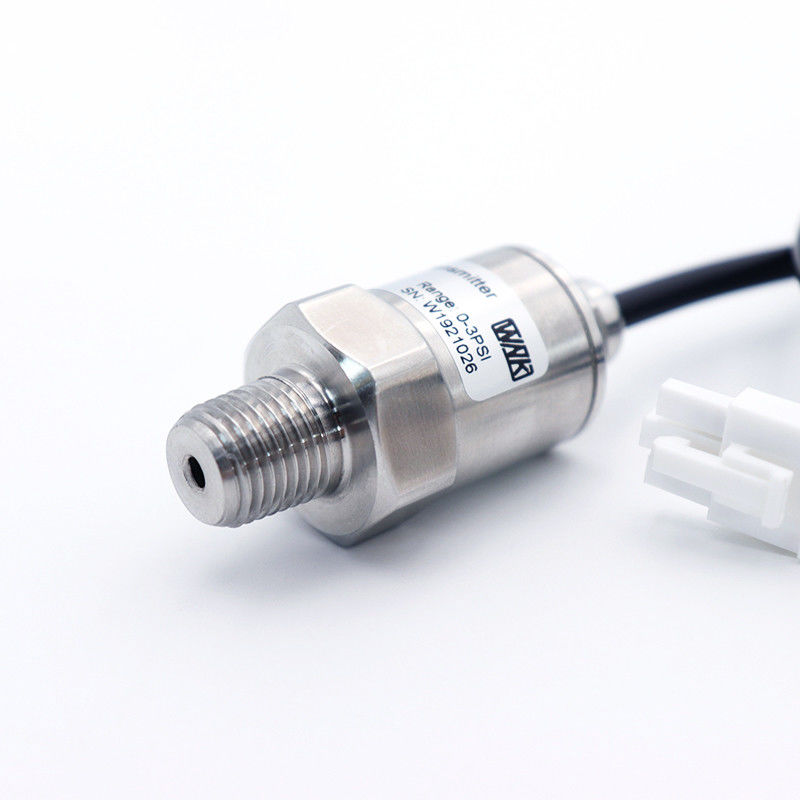

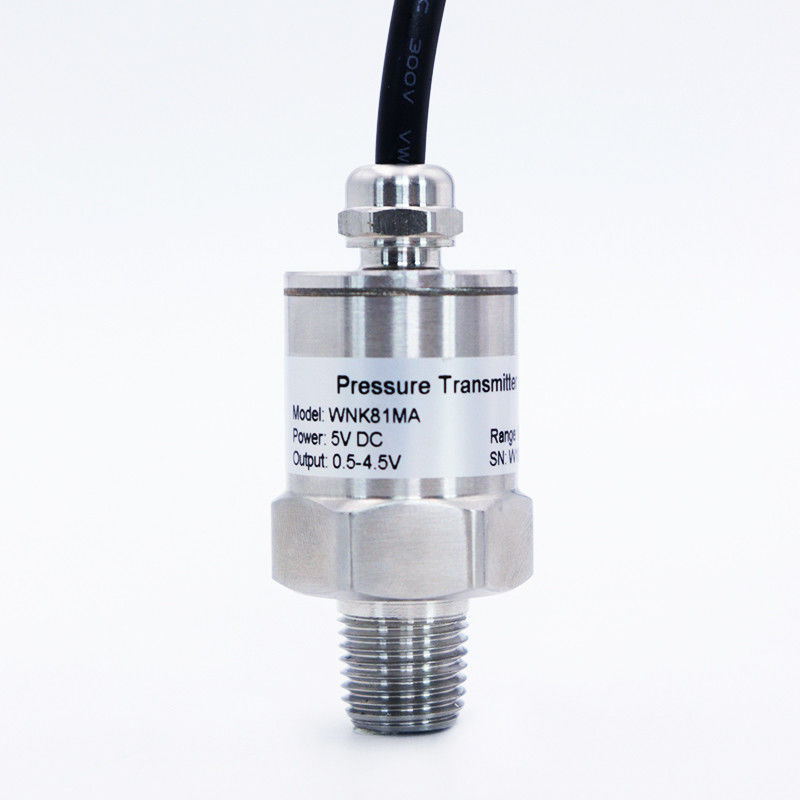

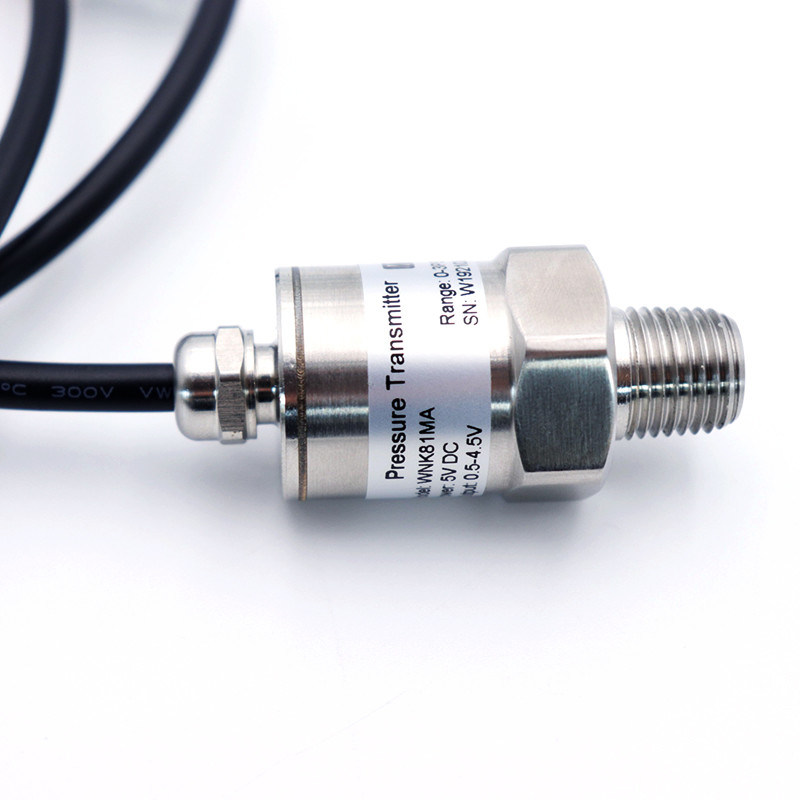

IP65 IP67 4-20mA Industrial Hydraulic Pressure Sensor

WNK81mA Pressure sensor is mainly used in water supply pipeline, gas supply pipeline measurement, hydraulic system measurement, such as booster cylinder, supercharger, gas-liquid booster cylinder, gas-liquid supercharger, pressure machine, compressor, air conditioning and refrigeration equipment and other fields.

IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 0
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 2
Pressure sensor is mainly used to complete the closed-loop control of force in hydraulic system. When the control spool suddenly moves, in a very short time will form several times the system operating pressure peak pressure. In typical walking machinery and industrial hydraulics, any pressure sensor can be quickly destroyed if such extreme conditions are not considered in the design.It is necessary to use impact resistant pressure sensor. There are two main methods for pressure sensor to achieve impact resistance. One is strain exchange type chip, the other is external coils.In addition, there is another reason that the pressure sensor is also subjected to continuous pressure pulsation from the hydraulic pump.
Product Name
IP65 IP67 4-20mA Industrial Hydraulic Pressure Sensor



Pressure Type
Gauge pressure, sealing pressure, absolute pressure



Measure Range
 0-20kPa~60MPa



Output
0.5-4.5v, 4-20mA, I2C, 0-5V, 0-10V, customize



Accuracy
0.5%FS, 1%FS



Compensation Temperature
-20…70℃



Ingress
IP65/IP67



Working Temperature
-45 to 85℃,



Electrical Connection
Packard, M12*1, Cable outlet, Mini DIN43650, Customize



Process Connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, Customize



Product Features
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 5
Company Profile
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 7
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 9
IP65 IP67 Industrial Pressure Sensor For Gas Supply Pipeline 11
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
