I2C Output Water Pressure Transducer Sensor With 4-20MA

I2C Output Water Pressure Transducer Sensor With 4-20MA

I2C Output Water Pressure Transducer Sensor

4 20MA Water Pressure Transducer Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK80mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measured Media:
Liquid, Gas And Steam
Output Signals:
4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0-300KPa~10MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Pressure Sensor/ Air Pressure Sensor
Port:
Shanghai Port
Highlight:

I2C Output Water Pressure Transducer Sensor

,

4 20MA Water Pressure Transducer Sensor

Payment & Shipping Terms
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Supply Ability
2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
Product Description

Air Water Pressure Sensor With 4-20MA I2C Output



Product Show

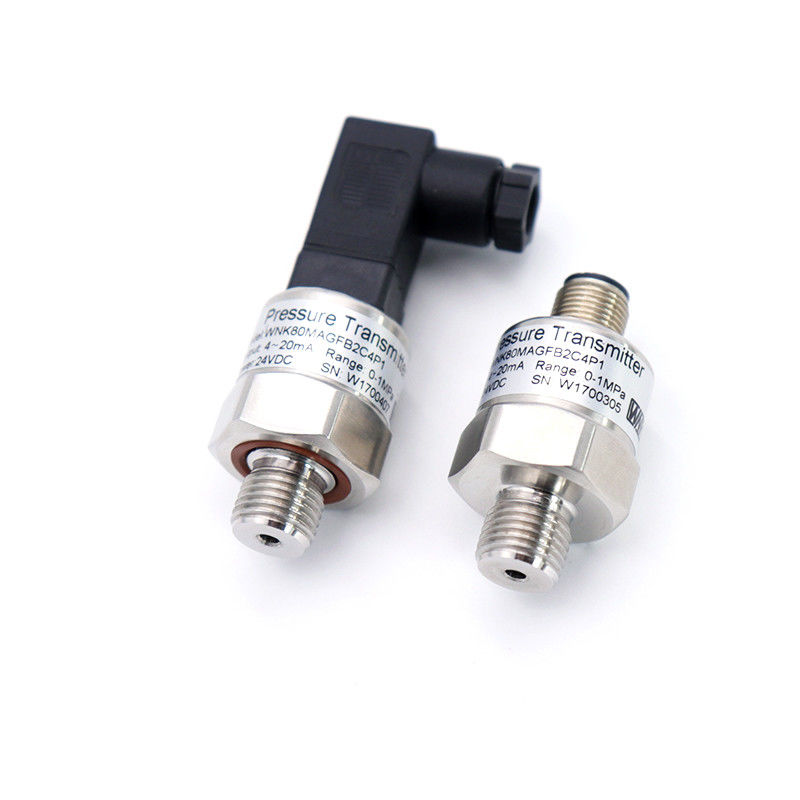

 I2C Output Water Pressure Transducer Sensor With 4-20MA 0

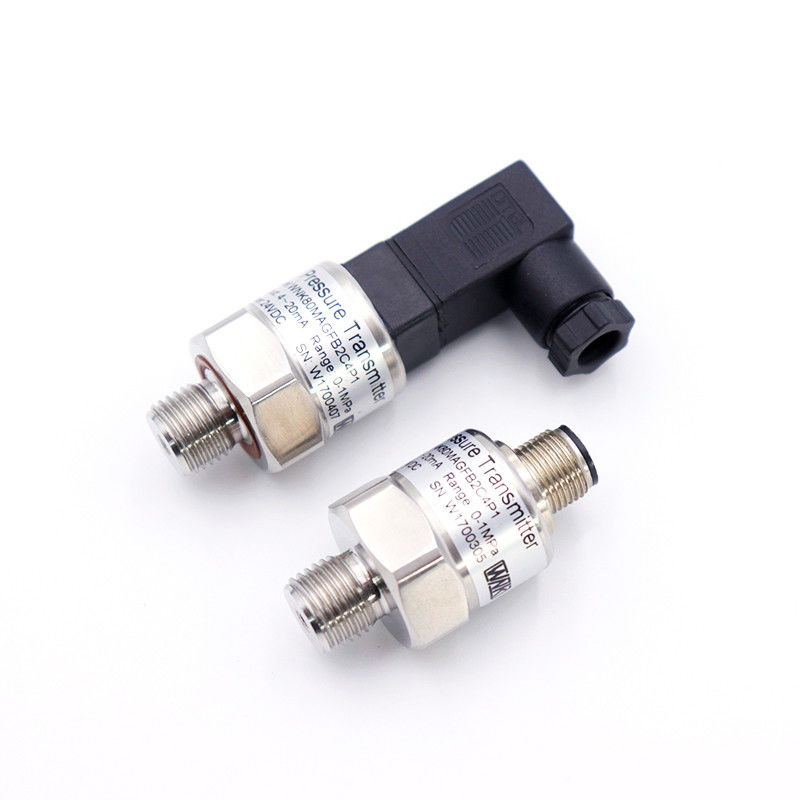

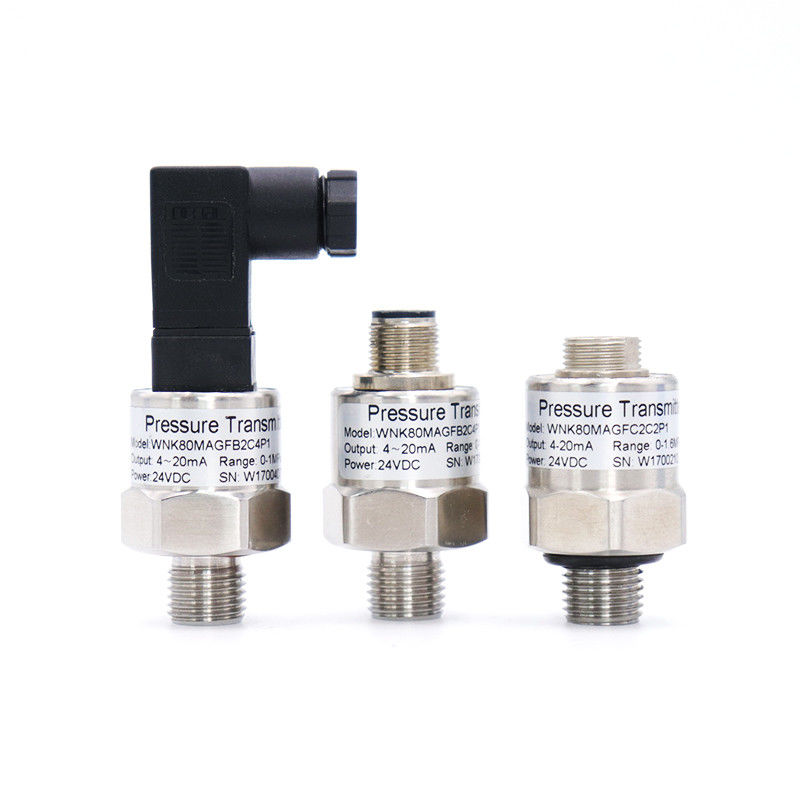

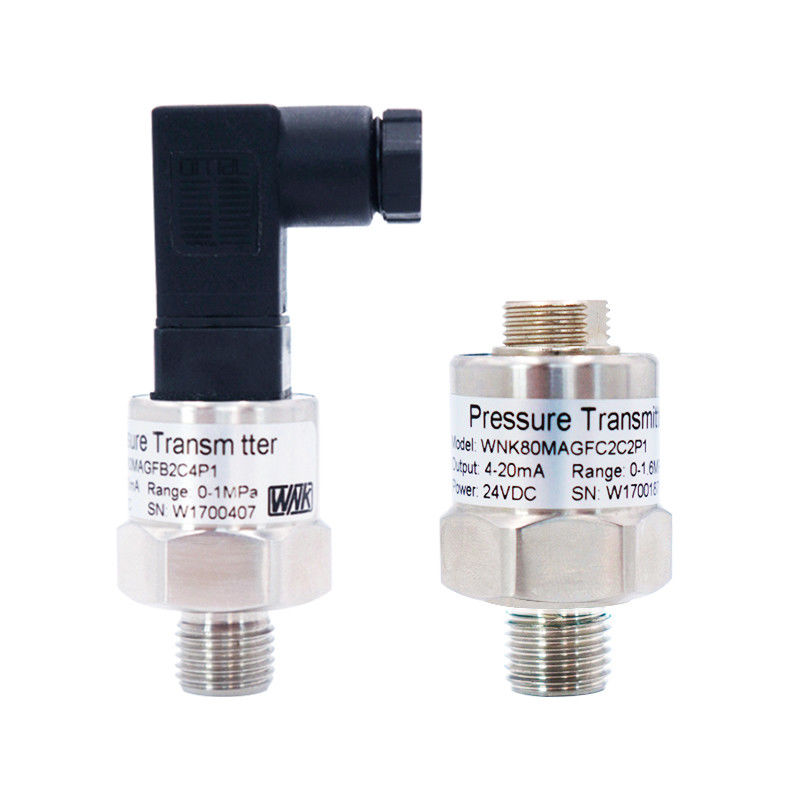

I2C Output Water Pressure Transducer Sensor With 4-20MA 2I2C Output Water Pressure Transducer Sensor With 4-20MA 4I2C Output Water Pressure Transducer Sensor With 4-20MA 6

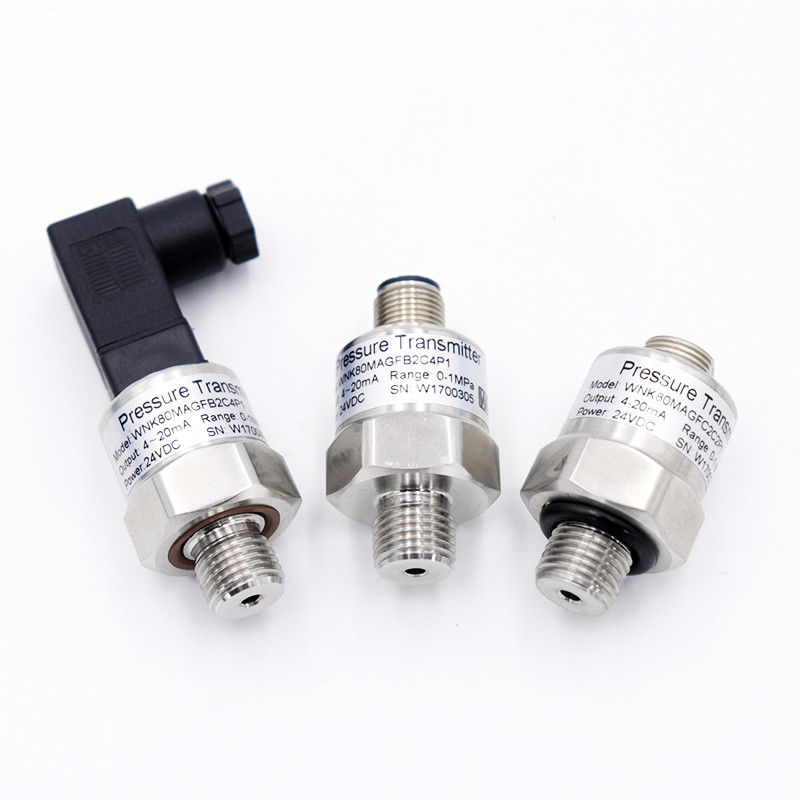

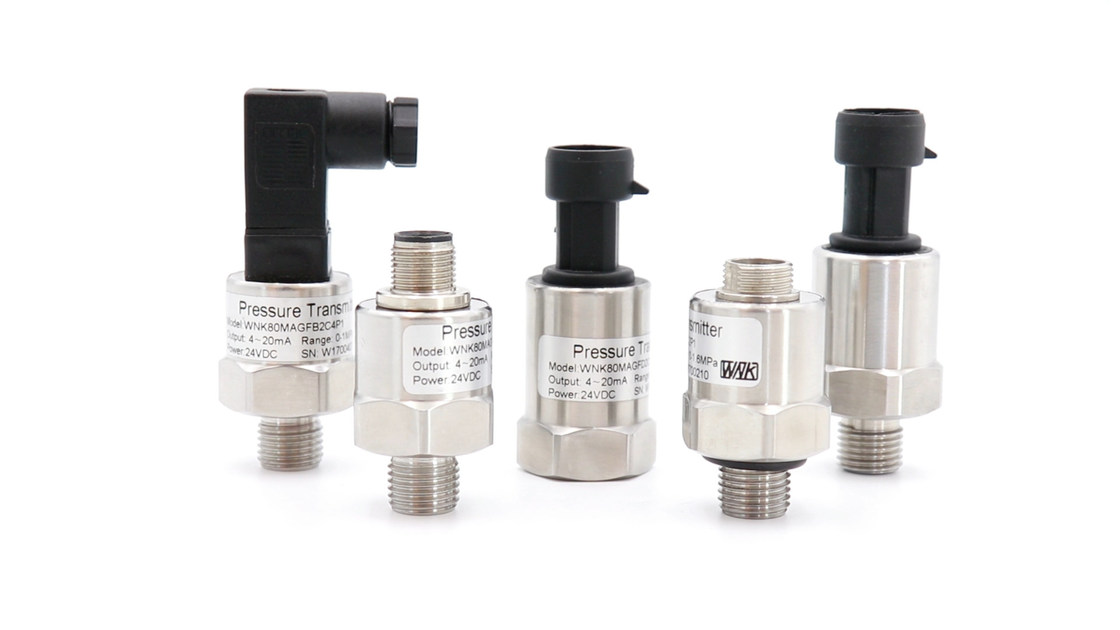

I2C Output Water Pressure Transducer Sensor With 4-20MA 8I2C Output Water Pressure Transducer Sensor With 4-20MA 10I2C Output Water Pressure Transducer Sensor With 4-20MA 12



Smart Miniature Oil Fuel Water Pressure Sensor 4-20mA
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
I2C Output Water Pressure Transducer Sensor With 4-20MA 14
I2C Output Water Pressure Transducer Sensor With 4-20MA 16
Hot Product



I2C Output Water Pressure Transducer Sensor With 4-20MA 18



Company Information

 I2C Output Water Pressure Transducer Sensor With 4-20MA 20



Exhibition

 I2C Output Water Pressure Transducer Sensor With 4-20MA 22







Certification

 I2C Output Water Pressure Transducer Sensor With 4-20MA 24




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
