4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry

4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry

4 20ma air pressure transducer sensor

304SST Housing r Pressure Transducer Senso

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK80mA

Contact Us
Request A Quote
4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry
4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry
Product Details
Measured Media:
Liquid, Gas And Steam
Output Signals:
4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy:
0.2%F.S, 0.5%F.S
Pressure Range:
0-300KPa~10MPa
Protection Class:
IP65
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Housing Material:
304SST
Power Supply:
24VDC/12VDC/5VDC/3.3V
Electrical Connection:
Packard, M12, DIN43650, Cable
Keywords:
Pressure Sensor I2C/ Small Pressure Sensor
Port:
Shanghai Port
Highlight:

4 20ma air pressure transducer sensor

,

304SST Housing r Pressure Transducer Senso

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
2000 Piece/Pieces per Week Small Pressure Sensor
RELATED PRODUCTS
Good price Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal online Video

Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal

Get Best Price
Good price High Accuracy Digital I2c Pressure Sensor 316L Stainless Steel Housing online Video

High Accuracy Digital I2c Pressure Sensor 316L Stainless Steel Housing

Get Best Price
Good price G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air online Video

G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air

Get Best Price
Good price ODM Compact Brass Electronic Air Pressure Sensor With 1 Year Warranty online Video

ODM Compact Brass Electronic Air Pressure Sensor With 1 Year Warranty

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

Small I2c 4-20ma Air Oil Water Pressure Sensor For Industry

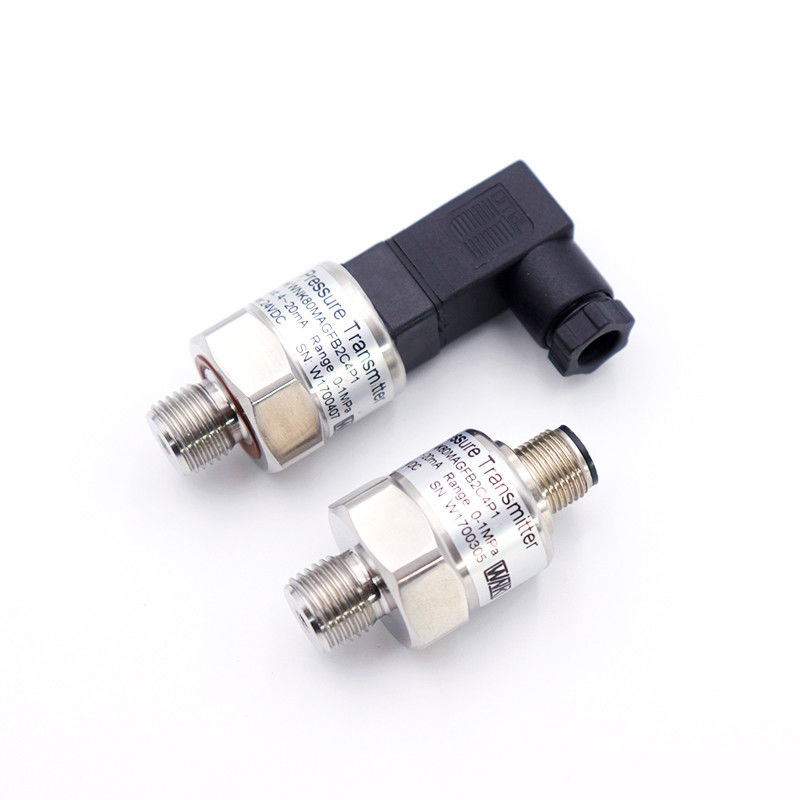

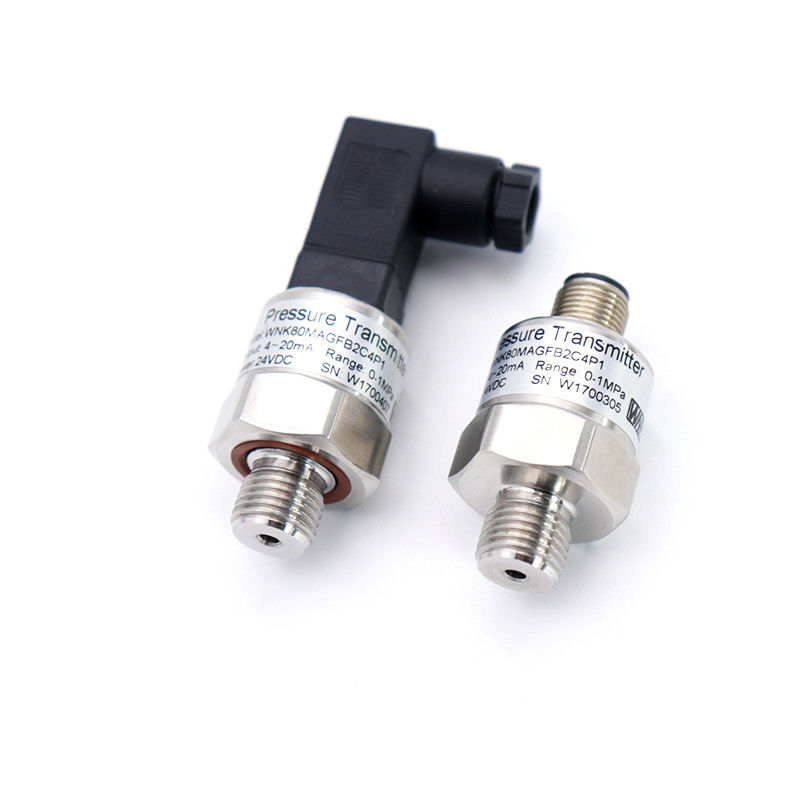

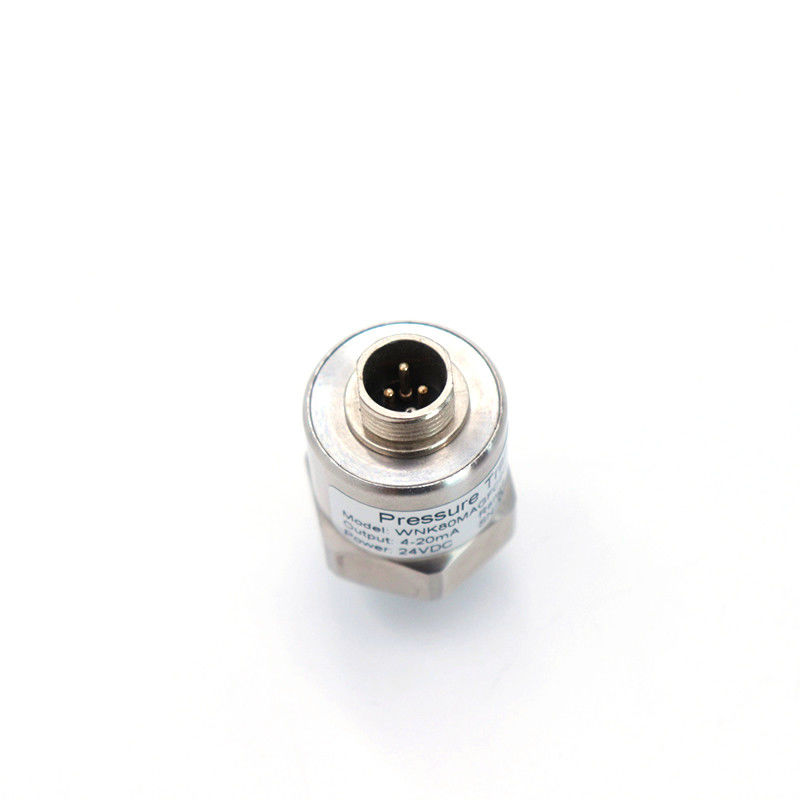

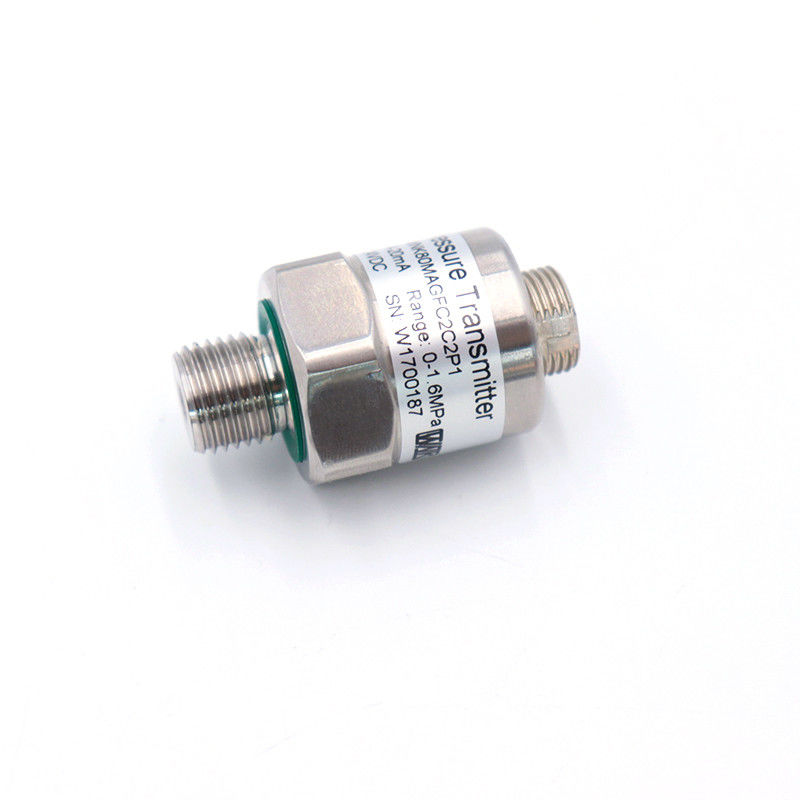

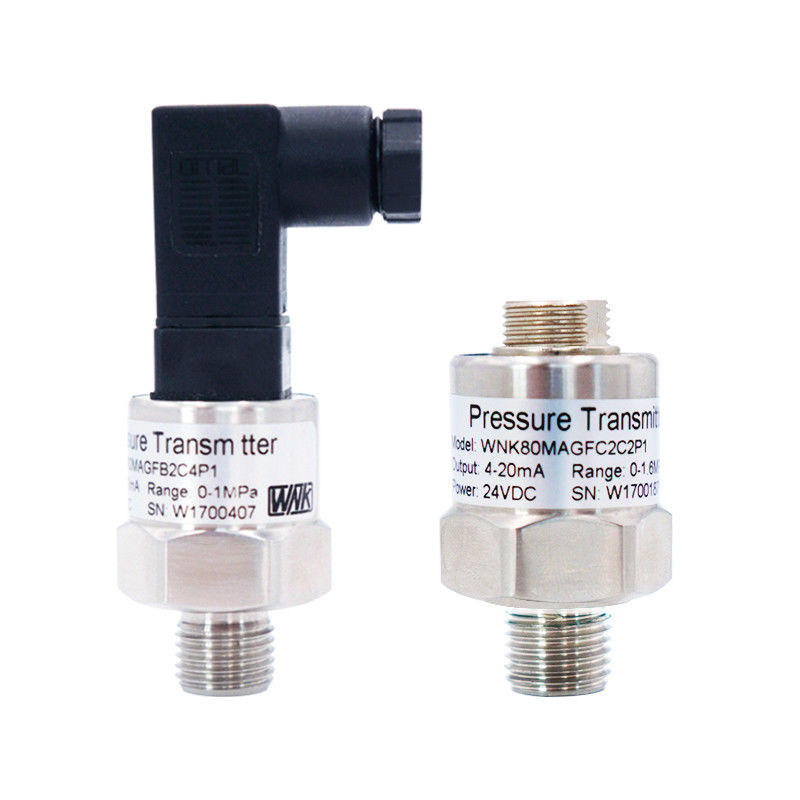

Product Show

 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 0



4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 24-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 4

4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 64-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 84-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 10



Small I2c 4-20ma Air Oil Water Pressure Sensor For Industry
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 12
4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 14
Hot Product



4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 16



Company Information

 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 18



Exhibition

 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 20





Certification

 4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry 21




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
