Place of Origin:
CHIAN
Brand Name:
WNK
Certification:
CE
Model Number:
WNK8010-T
High Accuracy 4-20mA 1-5V Water Level Sensor For Deep Well/Tank/Pool
Product Description
| Accuracy | 0.5%FS 0.2%FS |
| Level range | 0-200m H2O |
| Power supply | 24VDC |
| Protection class | IP68 |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V |
| Housing material | stainless steel |
| Ambient temp | -20~85℃ |
| Overload | 150% times |

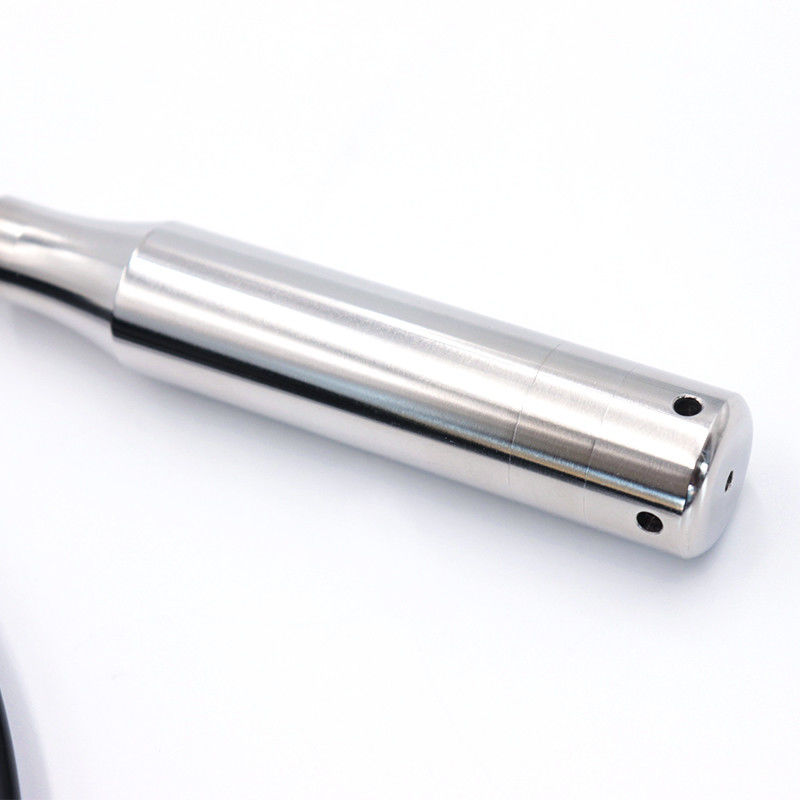

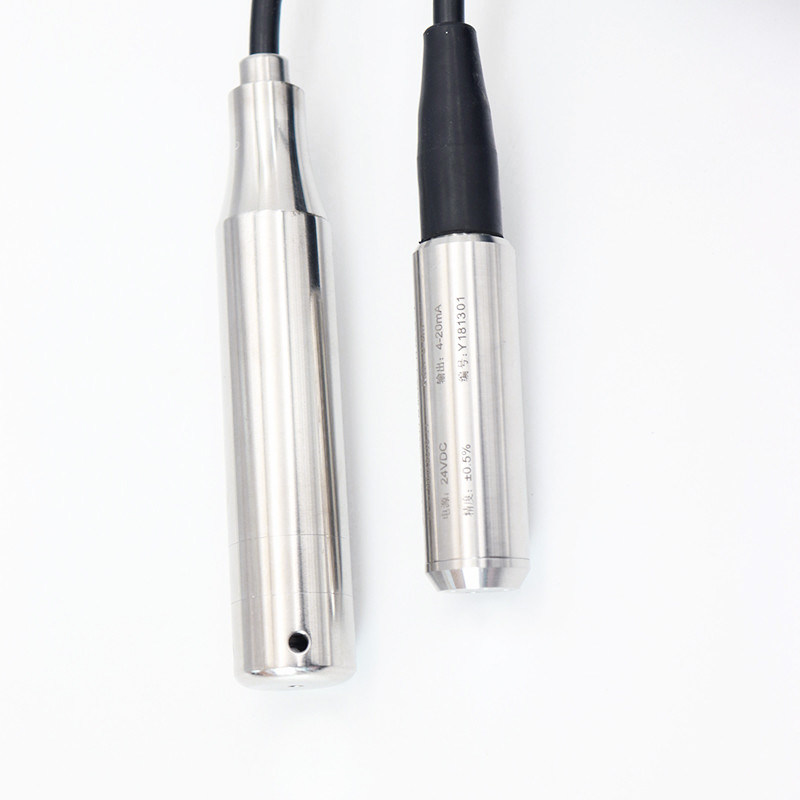

Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Product Show
